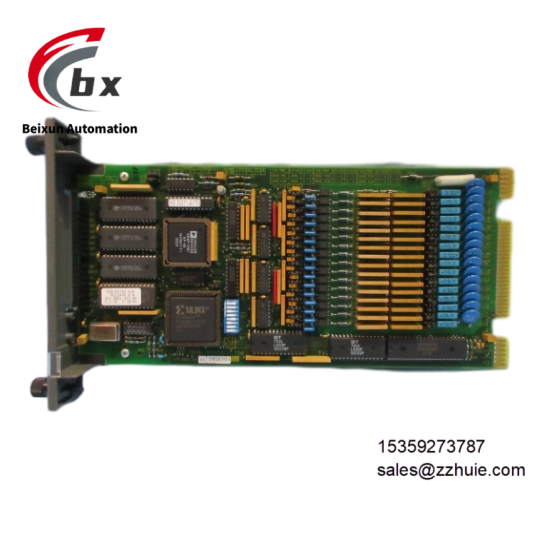

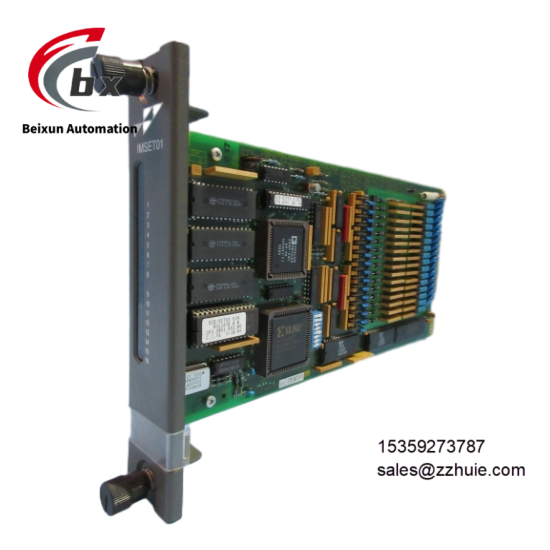

ABB IMSET01 Time synchronization module
Specific Parameters
Brand ABB (ABB Group, Switzerland)
Product Series ABB Symphony Plus I/O HR Series, ABB Bailey Infi 90 Series
Product Type Sequence of Event Time Keeper Module, Industrial Automation Control Module, Original Spare Part
Model ABB IMSET01
Country of Origin Switzerland (Produced by ABB original factory)
Compatible Devices ABB Symphony Plus I/O HR System, Bailey Infi 90 System, Symphony Plus PLS Controller, PLC, DCS, Sensors, Actuators
Input Voltage 100-240V AC, 125VDC (Dual Voltage Adaptation)
Rated Power Consumption ≤3W
Time Synchronization Accuracy Hardware timestamp 10 nanoseconds, event resolution 1ms
Communication Protocols Modbus TCP/IP, Profinet, IEEE 1588-2008 (PTP)
Storage Capacity 16MB Flash
I/O Capacity 16 DI, 8 AO
Operating Temperature Range -40℃ to +85℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions 17.8cm×5.1cm×33.0cm, Net Depth 76.2mm, Net Height 358.14mm, Net Width 279.4mm
Physical Weight Approximately 0.4kg
Mounting Method DIN Rail Mounting
Protection Type Overvoltage Protection, Electromagnetic Interference Protection, Network Redundancy, Compliant with IEC 62443 Standard
Hardware Architecture FPGA+ARM Dual-Core Architecture
Core Functions Time Synchronization, Event Sequence Recording, Signal Acquisition, Fault Diagnosis
Product Material Industrial-Grade Flame-Retardant Board
Customizable No
Certification Standards IEC 62443, Industrial-Grade Environmental Certification
Warranty Period 12 Months
Product Performance
ABB IMSET01 is an original ABB module, which can be seamlessly integrated into ABB mainstream automation systems, with convenient installation and commissioning, fast replacement, and can stably restore system time synchronization and event recording functions to ensure continuous system operation.
With dual-core architecture, it has high time synchronization accuracy, supports cross-protocol synchronization, solves the “time island” problem, provides accurate time reference for event tracing and fault diagnosis, and meets industrial high-precision synchronization needs.
It has complete I/O acquisition and fault diagnosis functions, can efficiently process various signals, real-time monitor its own status, facilitate maintenance personnel to quickly locate faults, and reduce operation and maintenance costs.
Industrial-grade packaging, strong anti-interference and wide temperature adaptability, with multiple protection functions, can operate stably in harsh industrial environments for a long time, key components are strictly screened, with high reliability and no frequent maintenance.
Modular design facilitates system expansion, can work with various ABB controllers to improve overall system efficiency, and adapt to industrial control scenarios of different scales.
