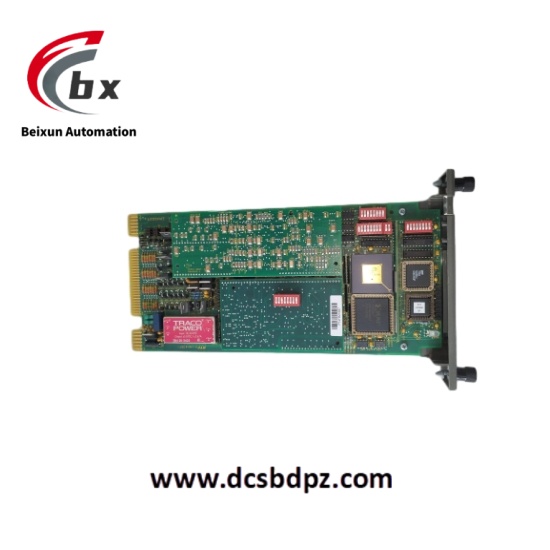

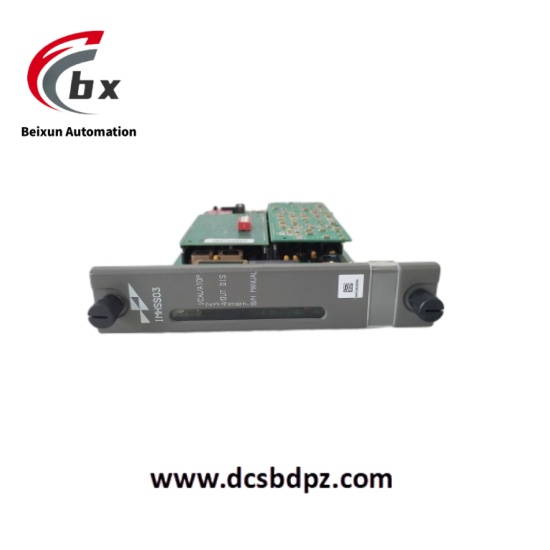

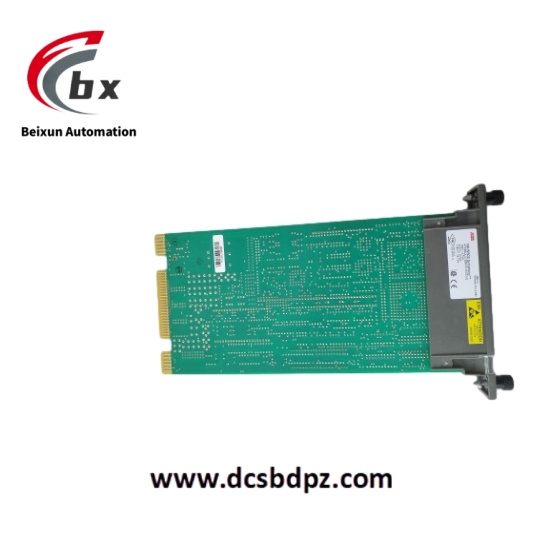

ABB IMHSS03 Hydraulic servo module
ABB IMHSS03 is a hydraulic servo module that functions as a valve position control module and plays a crucial role in industrial automation control systems. It provides an interface for the Harmony controller. Through this interface, the Harmony controller can drive a servo valve or an I/H converter, thus achieving manual or automatic control of the hydraulic actuator. The module integrates a microprocessor, memory, and communication circuitry internally and belongs to the intelligent I/O module. In most application scenarios, it often works in conjunction with the IMFCS 01 frequency counter module.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB IMHSS03 Hydraulic servo module
Specific Parameters
- Operating Voltage
- +5V DC, ±5%, with a typical current of 576mA
- +15V DC, ±5%, with a typical current of 15mA
- -15V DC, ±5%, with a typical current of 12mA
- +24V DC, ±10%, with a typical current of 335mA (from the termination unit)
- Power Consumption
- For +5V DC, the typical power consumption is 2.88W
- For +15V DC, the typical power consumption is 0.23W
- For -15V DC, the typical power consumption is 0.18W
- For 24V DC, the typical power consumption is 8.04W
- Signal Input: 4 – 20mA
- Signal Output: 4 – 20mA
- Operating Temperature Range: 0°C to 70°C (32°F to 158°F)
- Relative Humidity
- 5% to 95% up to 55°C (131°F) (non – condensing)
- 5% to 45% at 70°C (158°F) (non – condensing)
- Altitude: Sea level to 3km (1.86 miles)
- Protection Level: IP65
- Air Quality Requirement: Non – corrosive environment
Product Performance
- Precise Control: It can accurately adjust the current flowing to the servo valve, thereby changing the actuator position. For example, it can precisely position the gas turbine fuel valve or the steam regulating valve to achieve precise control of the turbine speed.
- Fast Response: It can quickly respond to external inputs and commands, achieving dynamic adjustment and tracking, and promptly controlling the hydraulic actuator.
- Wide Speed Regulation Range: It supports a wide range of speed regulation and can be flexibly adjusted and controlled according to different application requirements to meet the needs of efficient work processes.
- Multi – axis Linkage Control: It supports multi – axis linkage control and can achieve coordinated motion and synchronous control between multiple axes, helping to improve production efficiency and machining accuracy.
- Fault Diagnosis and Protection: It has fault diagnosis and protection functions, can real – time monitor the operating status and parameter changes of the equipment, timely detect and handle faults, and ensure the safe and stable operation of the equipment.
- High Compatibility: It supports a variety of different interface types, can communicate and exchange data with other devices, and is convenient for users to carry out system integration.
