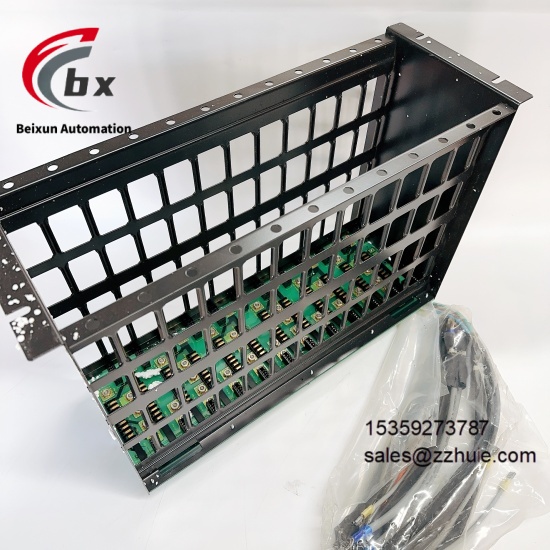

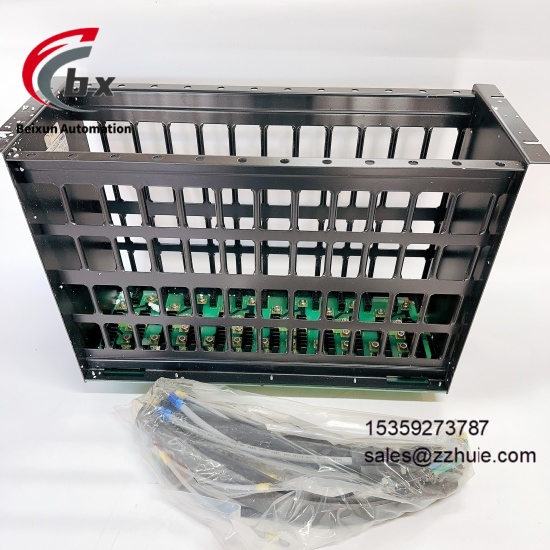

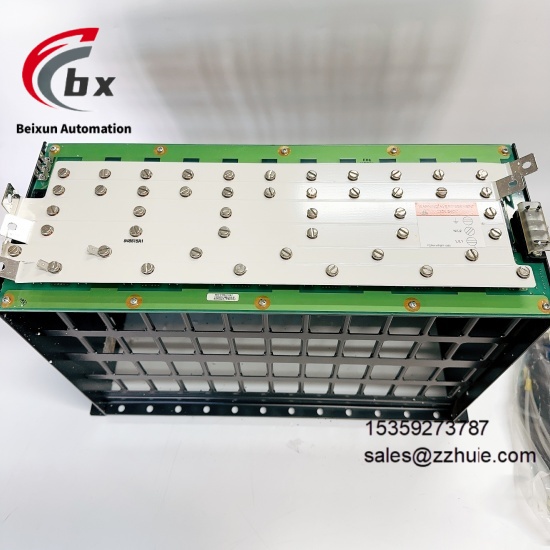

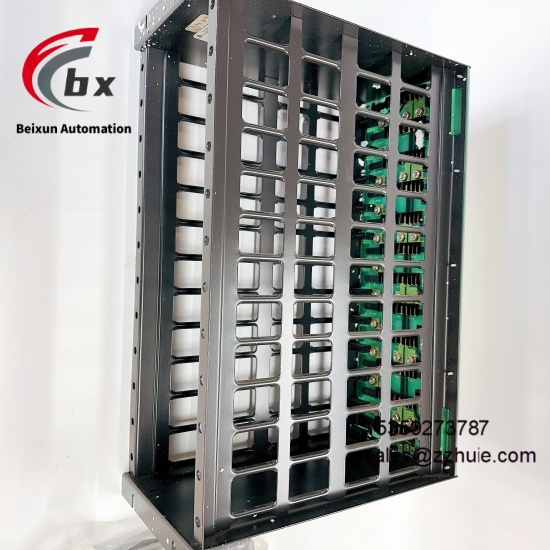

ABB IEPMU02 Power management unit

ABB IEPMU02 Power management unit

SPECIFIC PARAMETERS​

Brand ABB​

Product Series Industrial Ethernet Power Management Unit Series​

Product Type Industrial-grade Power Management Unit​

Input Voltage 100-240VAC Wide Range Adaptation 50/60Hz​

Output Voltage 24VDC Accuracy ±0.5%​

Output Current Maximum 4A per Channel​

Working Temperature -25℃ to 70℃​

Storage Temperature -40℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing​

Protection Level IP20 (In-cabinet Installation)​

Efficiency Typical Value 92% Under Full Load Condition​

Ripple and Noise ≤80mVp-p​

Protection Functions Overvoltage Protection Overcurrent Protection Short Circuit Protection Overheating Protection Reverse Polarity Protection​

Communication Interface 1 Gigabit Ethernet Port 1 RS-485 Serial Port (Modbus RTU Protocol)​

Size 100mm×45mm×160mm (Standard 3U Module Size)​

Weight 0.5kg​

Power Consumption Typical 20W Maximum 25W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61850​

Compatible System ABB System 800xA Industrial Ethernet Switches Automation Control Equipment​

Monitoring Function Support Input/Output Voltage/Current/Temperature Collection Fault Alarm Output​

PRODUCT PERFORMANCE​

Wide input voltage design adapts to 100-240VAC power grid, can resist power grid fluctuations in industrial sites, and output voltage accuracy is stable at ±0.5%​

Full-load efficiency up to 92%, low power consumption design reduces system operation cost and heat dissipation pressure​

Output ripple and noise ≤80mVp-p, providing pure DC power to ensure stable operation of industrial Ethernet equipment​

Equipped with five-fold protection mechanism, quickly responds to power supply abnormalities, effectively preventing terminal equipment from being damaged due to power failure​

Built-in communication interface supports remote monitoring, can real-time collect voltage, current, temperature and other parameters to achieve accurate fault alarm​

Industrial-grade wide-temperature adaptation capability, can operate continuously and stably in the temperature range of -25℃ to 70℃, adapting to extreme industrial environments​

Modular 3U standard size design, easy to install, can be deployed collaboratively with industrial Ethernet switches and I/O modules​

Compatible with multiple protocols such as Profinet, EtherNet/IP and Modbus RTU, seamlessly integrating into various industrial automation systems​

High-strength shell with anti-electromagnetic interference design, can resist electromagnetic interference and vibration impact in industrial sites​

Supports hot-swapping operation, can complete module maintenance without interrupting system operation, reducing equipment downtime​
