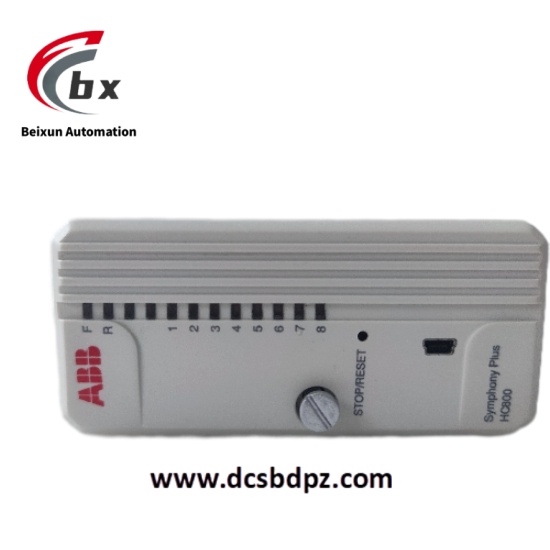

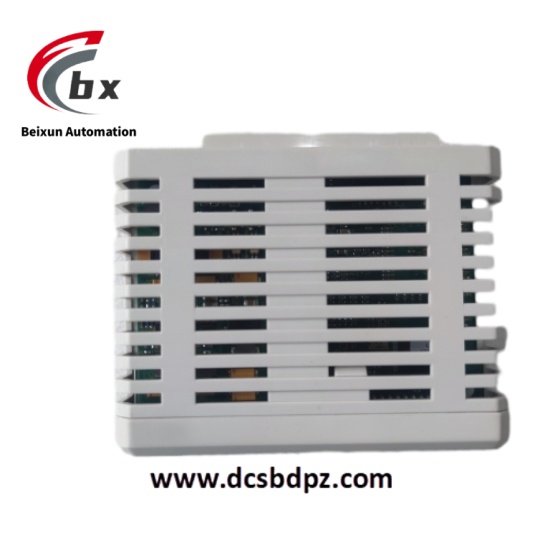

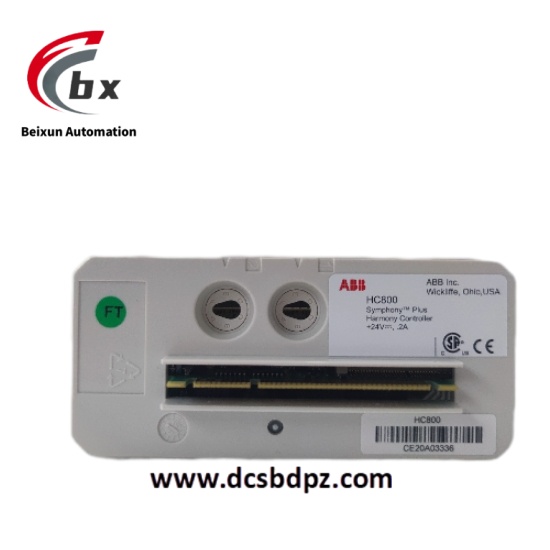

ABB HC800 Programmable Logic Controller (PLC) module
The ABB HC800 is a high – performance programmable logic controller (PLC) module designed for advanced automation solutions in harsh industrial environments. As a member of the Symphony Plus S+Control series, it can handle complex industrial automation tasks ranging from distributed control, continuous control to batch processing and advanced control. With a modular design, users can configure and expand it according to their needs, adapting to diverse industrial automation requirements. In the automation system, it serves as the core for the execution of control strategies, receiving data from I/O modules, performing operations according to preset logic, and then sending control commands to actuators to achieve precise control and optimized operation of industrial processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB HC800 Programmable Logic Controller (PLC) module
Specific Parameters
- Dimensions (Length × Height × Width): 78.74×243.84×210.82mm.
- Voltage Range: 24/48V.
- Number of Supported Function Blocks: Up to 30,000.
- Communication Protocols: Supports Modbus TCP/IP, CANopen, etc.
- Processing Speed: 10MHz.
- Memory: 16MB flash memory, 2MB random – access memory (RAM).
- Operating System: Real – time operating system (RTOS).
- Input Voltage: 24VDC.
- Communication Ports: Ethernet, USB.
- Operating Temperature Range: -20°C to +70°C, and for some models, it can reach -40°C to 70°C.
- Power Consumption: Maximum 10W.
- I/O Capacity: Supports a large number of I/O, depending on the system configuration.
- Scan Cycle: Up to millisecond – level.
- Redundancy Configuration: Supports redundant CPU configuration.
- Event Sequence (SOE) Timestamp Resolution: 1 millisecond.
Product Performance
- Powerful Processing Ability: Equipped with a high – performance industrial – grade processor, it can quickly and efficiently execute complex control algorithms and logic to meet the real – time requirements of industrial processes.
- High I/O Expansion Flexibility: Supports SD series I/O, Harmony Rack I/O, and S800 I/O subsystems, can connect a variety of sensors and actuators to achieve comprehensive control of industrial automation systems, and can be flexibly expanded to adapt to different – scale automation systems.
- Fast Response: Can perform closed – loop control of more than 5000 I/Os in less than 250 milliseconds.
- High Reliability: Designed for complex and harsh industrial environments, it has undergone strict quality inspection and selected high – quality materials to ensure long – term stable operation. Supports redundant configuration to improve system availability.
- Convenient Communication and Integration: With a variety of communication interfaces, it supports industrial standard fieldbus protocols such as Modbus, PROFIBUS, and OPC, facilitating integration with other control systems, PLCs, and external devices to achieve real – time data interaction.
- Flexible Programming and Configuration: Can be programmed through ABB Control Builder or programming tools compliant with IEC 61131 – 3, and supports flexible programming options such as ladder logic, function block diagrams, and structured text.
- Data Storage and Diagnosis: Can store process data, alarms, and events, and has advanced diagnostic functions to monitor system health and detect potential faults, reducing downtime.
