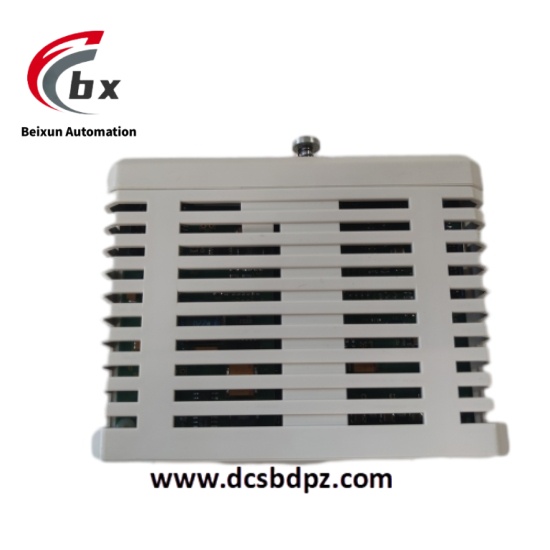

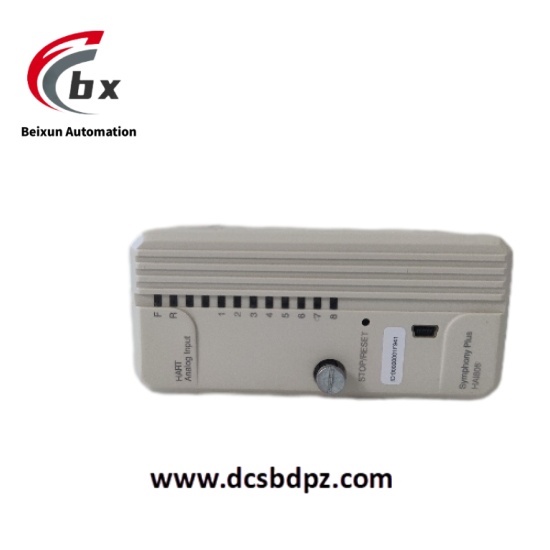

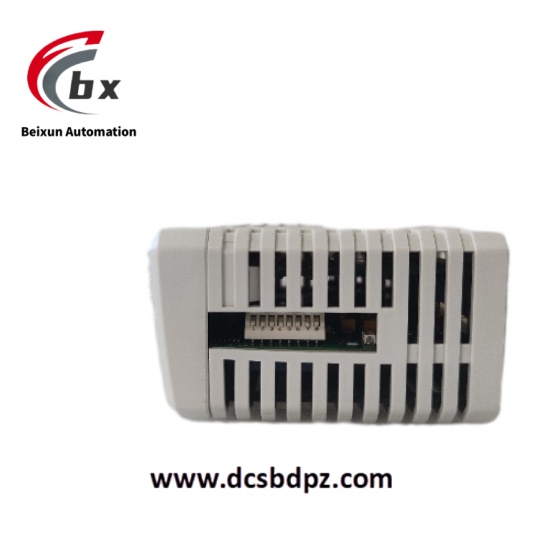

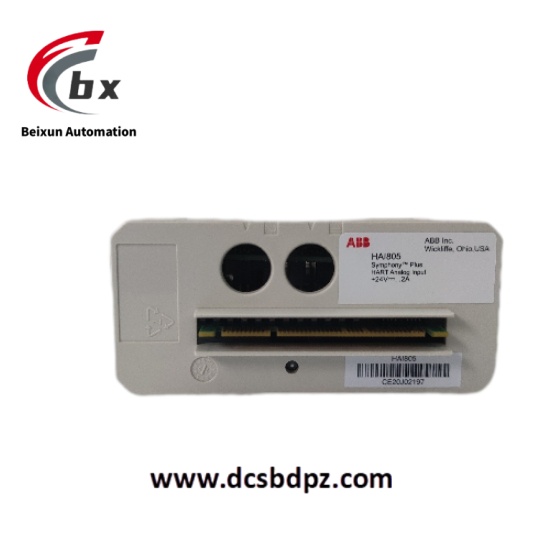

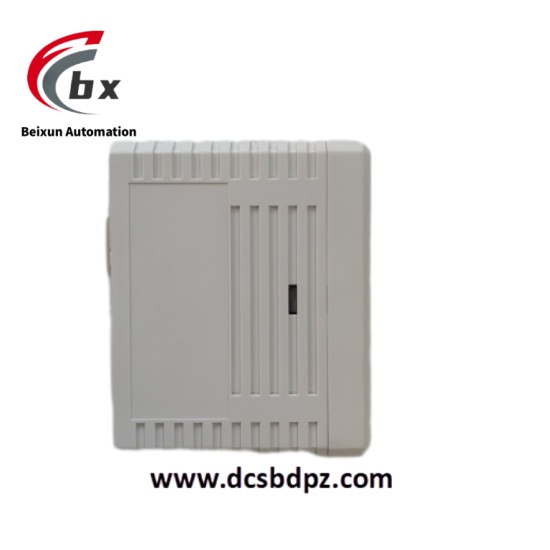

ABB HAI805 Analog input module
The ABB HAI805 is an 8 – channel analog input module, belonging to the ABB Symphony Plus S+ I/O series. This module is specifically designed for industrial automation scenarios. It is used to measure and convert analog signals from field devices such as temperature sensors, pressure sensors, and flow sensors into digital signals that can be processed by a control system. Each channel of it is equipped with a dedicated HART modem, which can communicate with HART devices such as smart transmitters to configure and diagnose these devices. In industrial automation and control systems, it undertakes the task of reading the output signals of sensors or other continuously variable devices and converting analog signals into digital signals that can be understood and processed by the control system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB HAI805 Analog input module
Specific Parameters
- Number of Input Channels: 8.
- Input Signal Type: Supports 4 – 20mA current signal input.
- HART Support: Supported, with a dedicated HART modem for each channel.
- Isolation Characteristics: Has isolation between channels and between channels and the power supply.
- Temperature Range: The operating temperature is -40°C to 70°C.
- Impedance Load: Under current – mode system power supply, the maximum impedance load is 750Ω.
- Resolution of Analog – to – Digital Converter: Adopts a 12 – bit resolution analog – to – digital converter.
- Dimensions: The net depth/length of the product is 243.84 mm, the net height is 73.66 mm, and the net width is 170.18 mm.
- Weight: The net weight of the product is 0.445 kg.
Product Performance
- High – Precision Conversion: Uses high – precision analog – to – digital conversion (ADC) function to convert analog signals into high – precision digital signals, ensuring data accuracy.
- Multi – Channel Parallel Acquisition: The 8 channels can simultaneously connect multiple analog sensors or devices, and perform signal acquisition and conversion in parallel, improving data acquisition efficiency.
- Wide – Range Signal Adaptation: Can receive analog signals within a certain range, adapt to different types of sensors and signal ranges, and has a wide range of application scenarios.
- Flexible Configuration: Users can flexibly configure parameters such as input range, sampling rate, and filtering settings of the module through software or hardware to meet different application requirements.
- High Reliability: Adopts an industrial – grade design, can operate stably in harsh industrial environments, and has strong anti – interference ability, reducing the probability of failures.
- Convenient Integration: It is easy to connect with programmable logic controllers (PLCs), industrial computers, or other control systems, and realizes data exchange and control through standard communication interfaces.
- Fast Data Processing: Combined with a dedicated HART modem, it realizes fast signal processing to meet the needs of real – time control applications.
