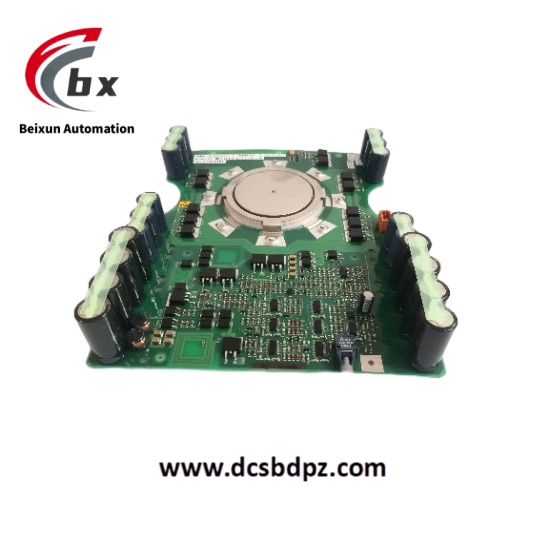

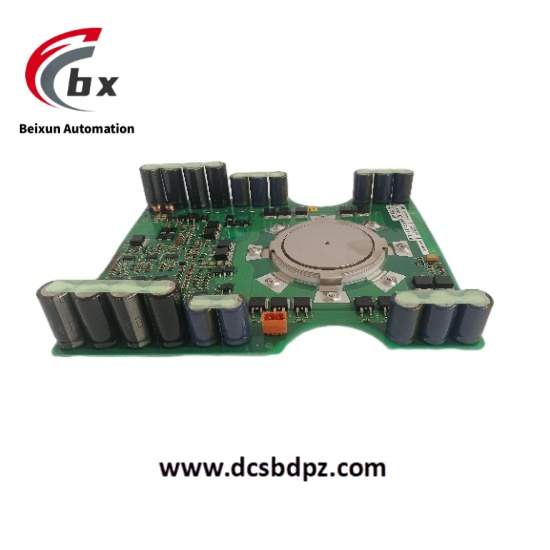

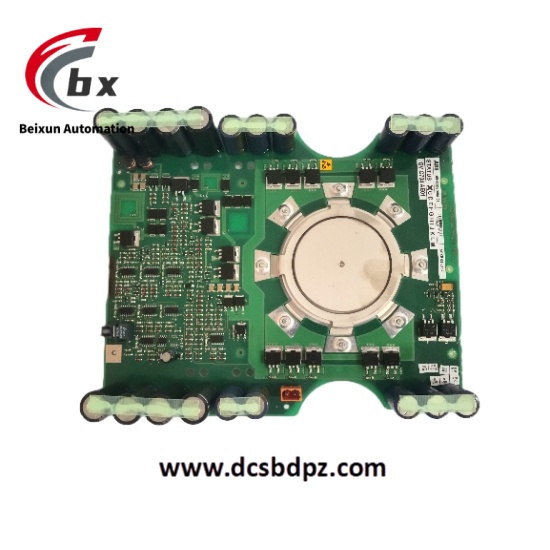

ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 IGBT driver module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 15V DC±5%
- Supply Current: ≤0.8A
- Auxiliary Supply Voltage: 24V DC±10%
- Output Parameters
- Maximum Drive Current: ±20A
- Drive Voltage Range: -15V~+18V
- Switching Frequency: ≤20kHz
- Isolation Parameters
- Isolation Voltage: 4kVrms (control side to power side)
- Isolation Resistance: ≥100MΩ (at 500V DC)
- Environmental Parameters
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +125°C
- Relative Humidity: 5% to 95% (non-condensing)
- Physical Parameters
- Mounting Type: Bolt fixing (compatible with standard heat sink substrates)
- Weight: Approximately 0.45kg
Product Performance
- High Isolation Reliability: 4kVrms isolation voltage meets the insulation requirements of medium and high-voltage systems, with isolation resistance ≥100MΩ, effectively avoiding signal interference between high and low voltage sides.
- Fast Drive Response: Switching frequency supports ≤20kHz, and drive signal delay is ≤50ns, adapting to high-frequency IGBT switching conditions.
- Comprehensive Protection Functions: Integrates overcurrent detection (response time ≤1μs), overvoltage clamping and undervoltage lockout functions, protecting IGBT devices from damage in real time.
- Stable Operation in Wide Temperature Range: The operating temperature range of -40°C to +85°C covers extreme industrial environments, with output parameter drift ≤2% at high temperatures.
- High Adaptability: Through hardware interface optimization, it directly matches ABB 5SNA series 1200V-3300V IGBT modules without additional adaptation circuits.
