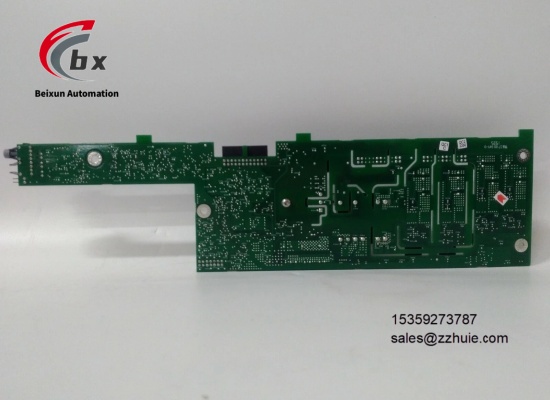

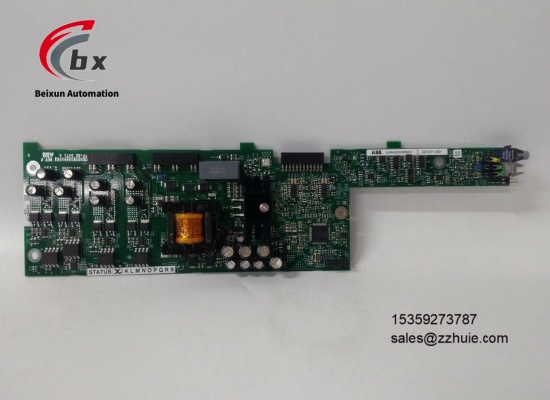

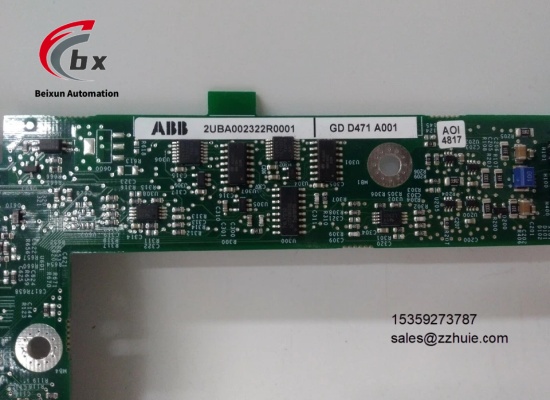

ABB GDD471A001 2UBA002322R0001 control module

ABB GDD471A001 2UBA002322R0001 control module

Specific Parameters

Brand ABB (Switzerland)

Product Series ABB GDD Series Industrial Control Module Series

Product Type Industrial-Grade Control Module, High-Voltage Frequency Conversion Power Supply Unit Control Board, PLC Expansion Module, Industrial Control Original Spare Part

Model ABB GDD471A001 2UBA002322R0001

Country of Origin Switzerland

Compatible Devices ABB AC 500 Series PLCs (PM5xx Series CPUs), High-Voltage Frequency Conversion Power Supply Systems, Industrial Sensors, Actuators, Industrial Control Equipment, Distributed Automation Control Systems

Processor On-board Low-Power Pentium III-M/Celeron Processor

Operating Power Supply 24VDC (Compatible with AT/ATX Power Supply)

Rated Power Consumption 12W

Front-Side Bus Frequency 133/166MHz

Memory On-board 256M Memory, Expandable to 768M (144pin PC133 SODIMM Memory Module)

BIOS 2/4M Phoenix Flash BIOS, Plug and Play

I/O Points 32 Points

Digital Input 16 Channels

Digital Output 16 Channels

Output Voltage 0V to 10V or 0V to 24VDC

Bus Expansion 1 PCI Expansion Slot Provided

I/O Interfaces 2 IDE Interfaces, Supporting ATA33/66/100/133 Transmission Modes

Communication Protocols Modbus, Profibus DP, Ethernet/IP, Modbus TCP/IP, PROFINET

Communication Interfaces RS485 Interface, Ethernet Interface

Protection Type Overcurrent Protection, Overvoltage Protection, Overheating Protection, Undervoltage Protection, Electromagnetic Interference Protection

Operating Temperature Range -20℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP65

Physical Dimensions 200mm×110mm×50mm (Length×Width×Height)

Physical Weight Approximately 2.5kg

Mounting Method DIN Rail Mounting or Chassis Mounting

Special Functions Signal Processing, Data Communication, Parameter Adjustment, Equipment Operation Monitoring, Fault Diagnosis, LED Status Indication, ACPI Power Management, Flexible Modular Redundancy

Product Material High-Quality Industrial Flame-Retardant Board

Customizable No

Certification Standards CE, RoHS, EMC

Warranty Period 12 Months

Product Performance

Compatible with ABB AC 500 series PLCs and high-voltage frequency conversion power supply systems, powered by 24VDC stably, the GDD471A001 2UBA002322R0001 as an original spare part is easy to replace, which can quickly restore the system control function and ensure the continuous operation of the industrial automation system.

Equipped with a dedicated industrial processor, it has strong processing capability and sufficient I/O channels, which can accurately complete signal acquisition, processing and output, support multiple communication protocols and interfaces, realize seamless data exchange between devices, and adapt to diverse industrial control needs.

Integrated with multiple safety protection functions, it has strong anti-electromagnetic interference ability, can monitor the operation status of equipment in real time, quickly identify faults and feed back, effectively protect the safety of equipment and operators, and run safely and reliably.

Reinforced packaging with industrial-grade flame-retardant material, protection level up to IP65, strong adaptability to wide temperature environment, can operate stably for a long time in harsh industrial scenarios such as high dust and humidity, and the modular design is convenient for installation, maintenance and expansion.

Supports flexible modular redundancy configuration, which can realize parallel execution of fast scanning logic and slow scanning logic, meet the needs of different scenarios such as motor control and analog control, and improve system availability and control accuracy.
