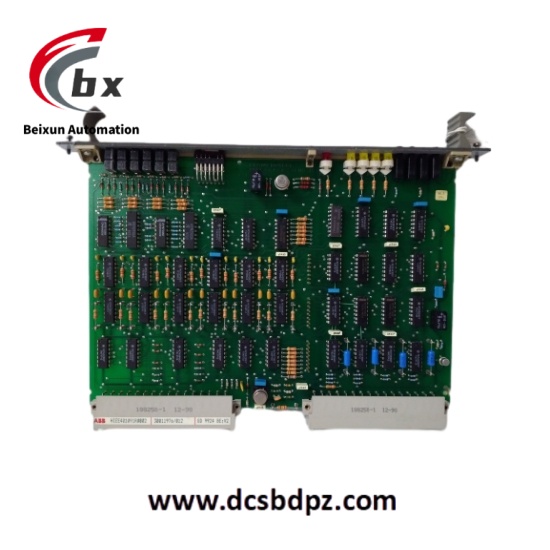

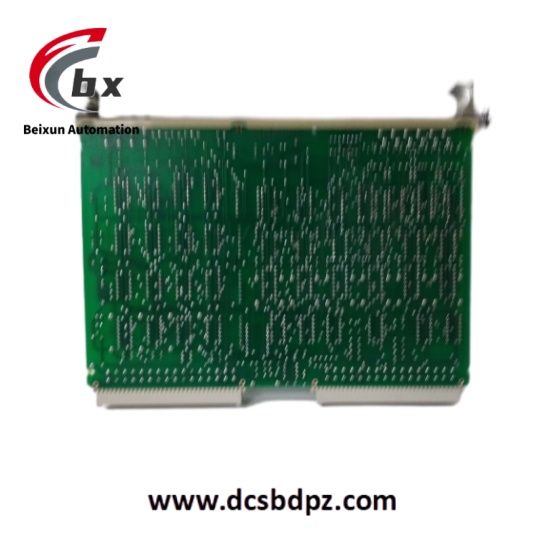

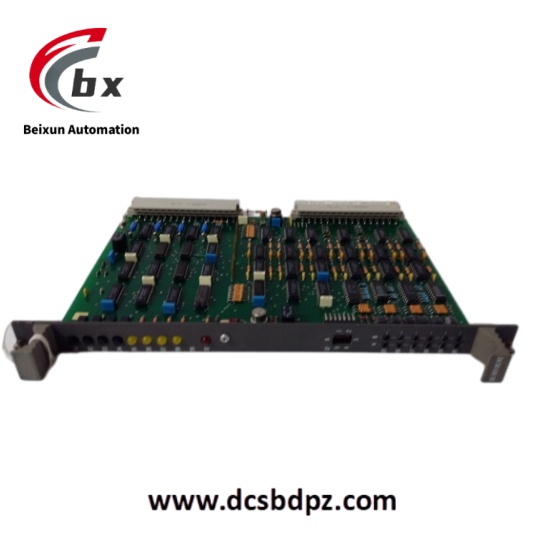

ABB GD9924BE V2 HIEE401091R0002 DC speed regulator module
ABB GD9924BE V2 HIEE401091R0002 is an industrial-grade DC speed controller module designed for closed-loop control of speed and torque in DC motors. The module integrates current detection, speed feedback and PWM drive functions. It can set motor parameters through analog or digital signals, adjust output voltage and current in real time, realize precise speed regulation and stable operation of DC motors, and is suitable for industrial scenarios such as metallurgy, lifting, and machine tools that require high-precision DC motor control.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB GD9924BE V2 HIEE401091R0002 DC speed regulator module
Specific Parameters
- Rated output current：24A DC
- Rated output voltage：400V DC（adapting to AC input 380V AC）
- Speed regulation range：1:1000（from 0.1% to 100% of rated speed）
- Speed control accuracy：±0.1% of rated speed（with speed feedback）
- Control signal input：4-20mA, 0-10V analog, pulse signal, digital switch signal
- Feedback signal type：Incremental encoder（TTL）, tachogenerator（0-10V）
- Power supply voltage：380V AC±10%, three-phase
- Power consumption：Maximum 150W
- Operating temperature range：-10°C to +55°C
- Storage temperature range：-40°C to +85°C
- Protection class：IP20
- Dimensions：200mm×150mm×100mm
- Weight：2.5kg
- Protection functions：Overcurrent, overvoltage, undervoltage, overheating, motor stall protection
Product Performance
- High-precision speed control：Speed control accuracy reaches ±0.1% of rated speed, with a speed regulation range of 1:1000, which can maintain stable operation at low speeds, meeting the high-precision control requirements of precision machine tools and other equipment.
- Fast dynamic response：Current loop response time ≤1ms, speed loop response time ≤10ms, which can quickly respond to load changes, suppress speed fluctuations, and ensure stable motor operation.
- Comprehensive protection mechanism：Integrates multiple protection functions such as overcurrent, overvoltage, and overheating, cuts off output within 0.1s under abnormal working conditions, and protects the module and motor from damage.
- Wide voltage adaptability：Supports 380V AC±10% power input, can maintain stable output when the grid voltage fluctuates, adapting to complex power supply environments in industrial sites.
- Flexible control integration：Supports multiple control signals and feedback types, can communicate with PLC or HMI through RS485（Modbus RTU）, realizing remote parameter setting and status monitoring, facilitating system integration.
