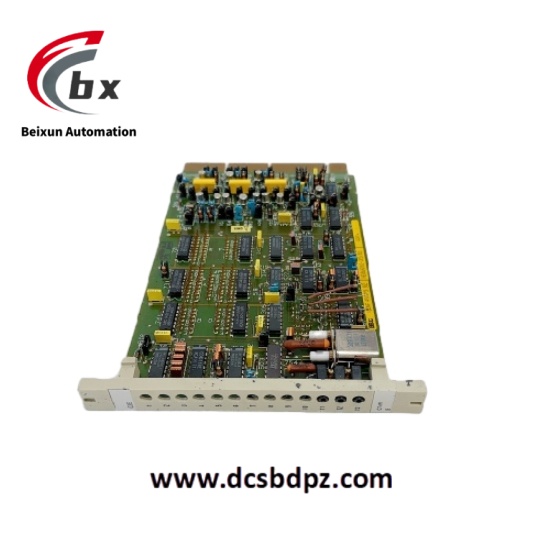

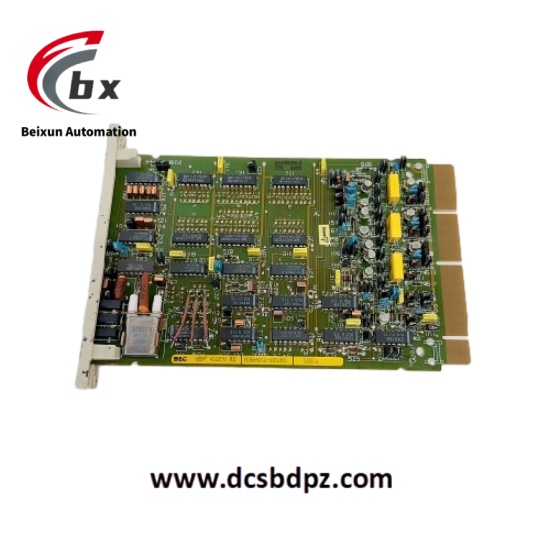

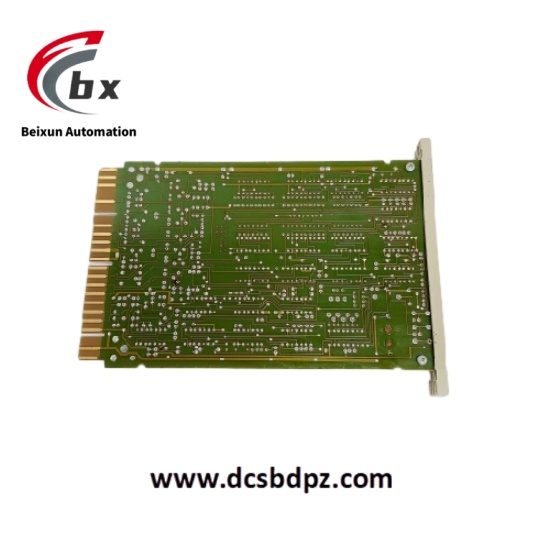

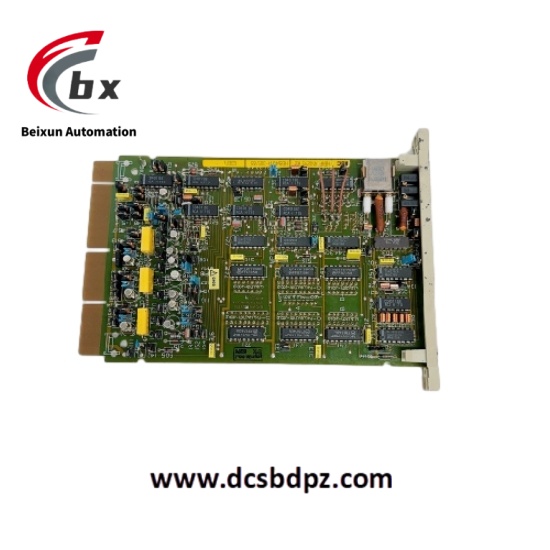

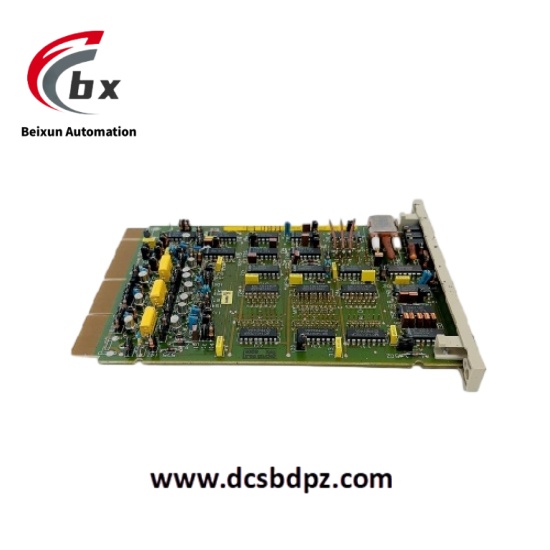

ABB G3EFa HENF450295R2 High performance industrial control module

Specific Parameters

Power Supply Voltage: 24V DC, with an allowable fluctuation range of ±10%.
Input Signal Types: Analog inputs support standard signals such as 0 – 10V and 4 – 20mA; digital inputs can accept dry contacts and transistor output signals.
Output Signal Types: Analog outputs can provide 0 – 10V and 4 – 20mA signals; digital outputs can drive relay and transistor loads.
Number of Input Channels: There are 8 analog input channels and 16 digital input channels.
Number of Output Channels: There are 4 analog output channels and 8 digital output channels.
Data Processing Speed: It can process more than 10,000 data per second, ensuring a rapid response to changes in industrial processes.
Communication Interfaces: Equipped with an Ethernet interface, supporting the Modbus TCP/IP protocol; an RS – 485 interface, suitable for the Modbus RTU protocol.
Storage Capacity: The program storage memory is 128MB, and the data storage memory is 64MB.
Operating Temperature Range: -20°C to +60°C.
Protection Level: IP20, which can prevent a certain degree of dust intrusion and accidental contact.
Dimensions: 200mm in length, 100mm in width, and 80mm in height.
Weight: Approximately 1kg.

Product Performance

High Reliability: High – quality electronic components are selected and undergo strict quality screening and aging tests. In complex industrial environments, such as places with strong electromagnetic interference, severe vibration, and large temperature fluctuations, it can still operate stably for a long time, greatly reducing the probability of equipment failures and ensuring the continuity of production.
High – Precision Control: With advanced microprocessors and optimized control algorithms, it has a very high processing accuracy for analog and digital signals. In industrial process control, it can achieve precise regulation of parameters such as temperature, pressure, and flow. For example, the temperature control accuracy can reach ±0.1°C, and the pressure control accuracy can reach ±0.005MPa, meeting the extremely demanding production processes for control accuracy.
Fast Response: It has a fast data processing speed. The response time from receiving an input signal to outputting a control command is extremely short, usually within a few milliseconds. It can quickly capture changes in industrial processes and take corresponding control actions in a timely manner, effectively avoiding production anomalies caused by response delays and improving production efficiency and product quality.
Flexible Expandability: The number of input and output channels can be flexibly expanded by adding expansion modules to meet the needs of industrial automation projects of different scales. At the same time, the rich communication interfaces and support for a variety of communication protocols make it easy to integrate with devices of different brands and types, facilitating the construction of personalized automation control systems.
Easy Maintenance: It has a complete built – in self – diagnostic function that can monitor its own operating status in real – time. Once a fault is detected, it will immediately output an alarm signal and provide detailed fault information, including the type and location of the fault, which is convenient for maintenance personnel to quickly locate and troubleshoot the fault, significantly shortening the equipment downtime and reducing maintenance costs.
