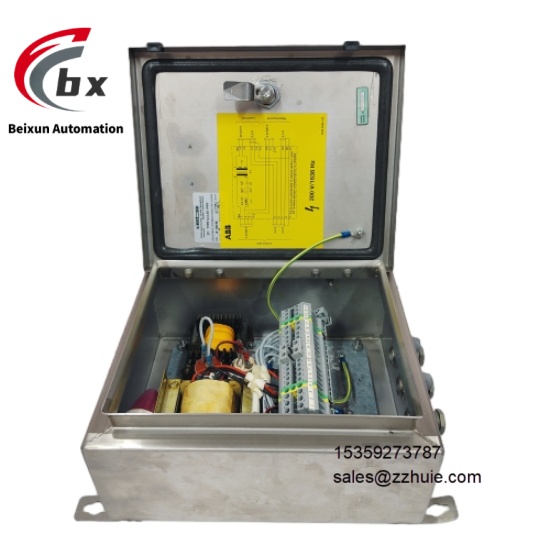

ABB FFVO142 3BSE223732R0001 Analog Output Module

Specific Parameters

Electrical Parameters
Power Supply Mode:
Bus Power Supply: 12-32V DC (from Fieldbus H1 bus)
External Power Supply: 24V DC ±10% (optional, terminal input)
Output Configuration: 4-channel independent analog outputs, each channel configurable as
Current Type: 4-20mA, 0-20mA (accuracy ±0.1% full scale)
Voltage Type: 0-5V DC, 1-5V DC (accuracy ±0.1% full scale)
Resolution: 16-bit (digital-to-analog conversion)
Output Load:
Current Output: ≤500Ω (4-20mA mode)
Voltage Output: ≥1kΩ (0-5V DC mode)
Response Time: ≤10ms (digital signal to stable analog output)
Communication Interfaces: 2×Foundation Fieldbus H1 (1.0/2.5Mbps, bus redundancy supported)
Isolation Level: 2.5kV AC between channels and between channels and bus (1 minute)
Protection Functions: Overcurrent protection (25mA current limit per channel), short circuit protection, reverse polarity protection
Power Consumption: Bus power supply ≤1.2W; External power supply ≤3W
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), EN 61000-6-4
Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 45mm (W) × 130mm (H) × 190mm (D)
Weight: Approximately 400g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant PA66 engineering plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

FFVO142 adopts a high-precision 16-bit D/A conversion chip and temperature compensation algorithm, with output error ≤0.2% over the full temperature range, ensuring actuator regulation accuracy up to ±0.1% of rated value. Supporting Fieldbus H1 protocol V1.0/V2.0, it can communicate seamlessly with field devices compliant with IEC 61158 standard, with data transmission delay ≤5ms.

Dual power supply mode design ensures automatic switching to external power supply when the bus fails, with switching time ≤100ms, guaranteeing continuous and stable output signals. Channel-level electrical isolation combined with multi-stage EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites.

Integrated with LCD display and button diagnostic functions, it can real-time view channel output values, bus status and fault codes, supporting online configuration and calibration, enabling parameter adjustment without module disassembly. Mean time between failures (MTBF) ≥250,000 hours, meeting industrial-grade continuous operation requirements.
