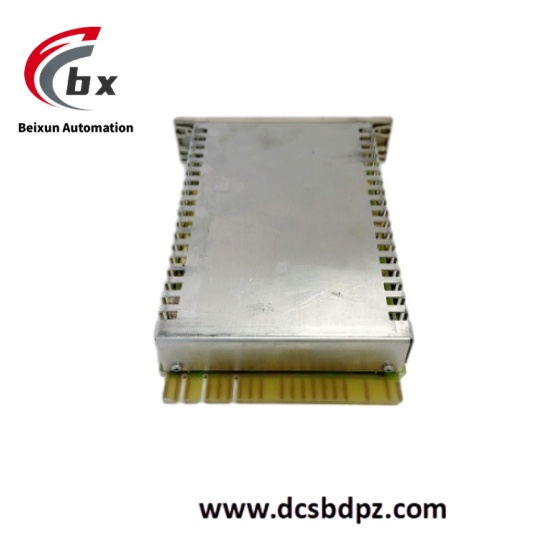

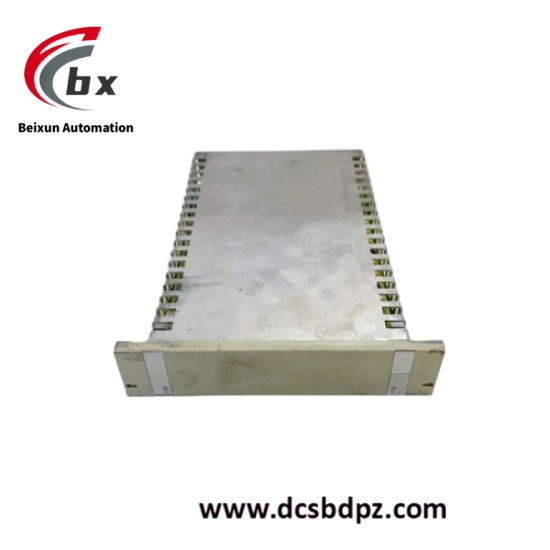

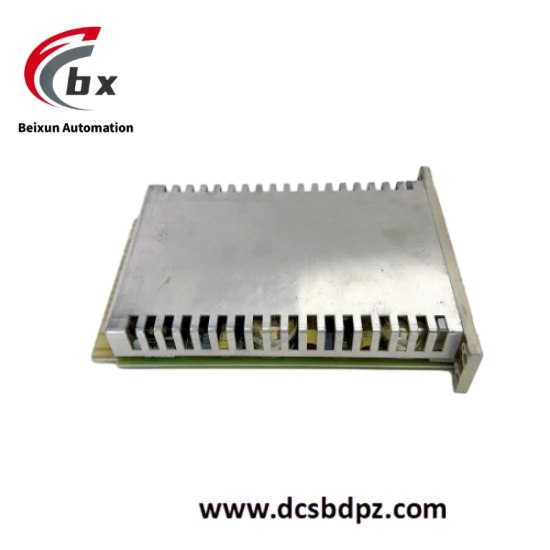

ABB E3ED High frequency industrial Ethernet communication controller
The ABB E3ED is a controller meticulously designed for high - frequency industrial applications and plays a crucial role in the industrial automation process. It features precise control and reliable operation. It can convert data transmitted over the network according to the TCP/IP protocol, ensuring smooth data interaction between different devices. This product can convert network signals into data recognizable by the CPU, enabling effective control of various industrial processes. It supports the IEEE802.3 Ethernet standard and provides communication in line with the 10BaseT standard (10MBit), ensuring the standardization and high - efficiency of network communication.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB E3ED High frequency industrial Ethernet communication controller
Specific Parameters
- Operating Voltage: 10 – 30VDC, and some models can support a wide – range power supply of 24 – 240V AC/DC.
- Output Frequency: Up to 30kHz.
- Operating Temperature Range: -25°C to 70°C.
- Proximity Distance: 5mm.
- Output Method: PNP.
- Load Current: 200mA.
- Communication Standard: Complies with the IEEE802.3 Ethernet standard, adapts to 10BaseT standard communication, with a rate of 10 MBit/s.
- Protection Level: Reaches IP67 protection level.
- Resolution: Single – turn resolution up to 16 – bit, multi – turn resolution up to 30 – bit.
- Memory Characteristics: Has non – volatile storage (depending on the device).
- Connection Method: Adopts screw connection or quick – connect technology.
- Interface Type: Equipped with an RJ45 Ethernet interface and also has two RS – 232/485 serial ports.
Product Performance
- Precise Control: In high – frequency industrial application scenarios, it can achieve high – precision control, ensuring that industrial processes run stably according to preset parameters.
- High Reliability: The design structure is rugged and durable, allowing it to work stably in harsh industrial environments, reducing the probability of failures. Even when the system is powered off, key data will not be lost due to the non – volatile storage function.
- Efficient Communication: Supports multiple communication protocols, and the data transmission rate is stably 10 MBit/s, which can quickly and accurately transmit data to meet the real – time control requirements.
- Flexible Power Supply: The wide – range control power supply voltage design can adapt to different power supply environments, enhancing the applicability of the product.
- Short – circuit Monitoring: Has a sensor short – circuit monitoring function, which can detect and handle short – circuit faults in a timely manner to ensure the safe operation of the system.
- Convenient Operation: Supports remote reset, is easy to operate; has various installation methods and simple connection methods, facilitating maintenance.
- Strong Data Processing Ability: Built – in 32 – bit SCSATA KAC PLC significantly improves computing performance, shortens calculation intervals, and improves control accuracy.
