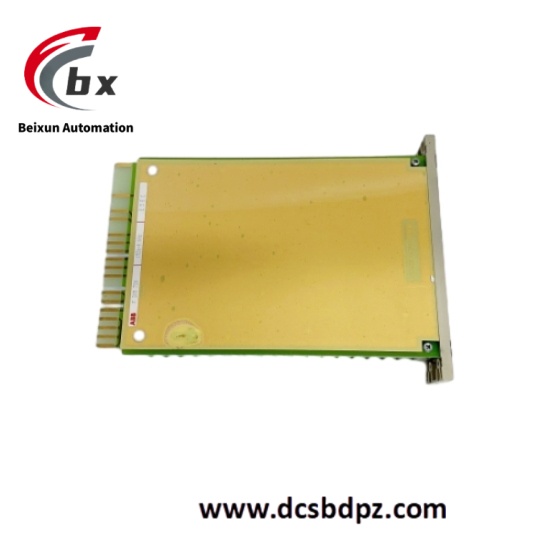

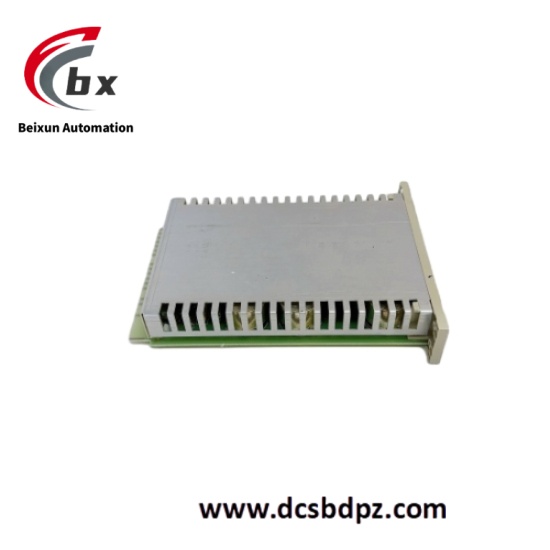

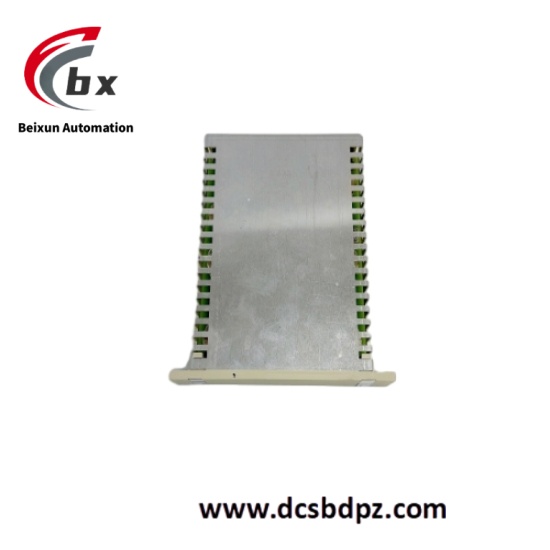

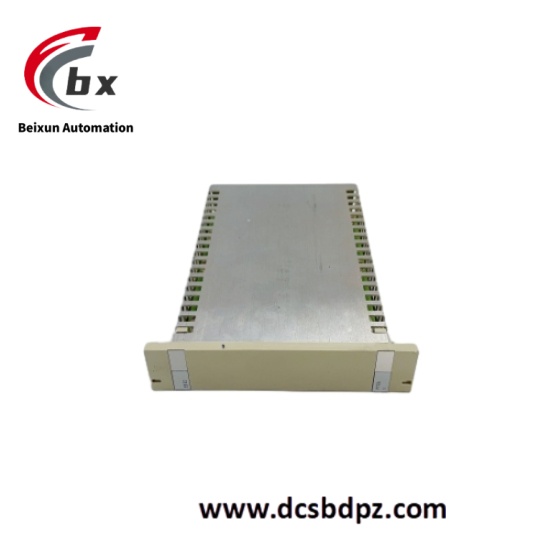

ABB E3EC HENF315125R1 Ethernet communication module

The ABB E3EC HENF315125R1 is a powerful industrial control module with the dual functions of a controller and an Ethernet communication module. In the industrial automation system, it is responsible for controlling various industrial processes and converting the signals in the network line into data that can be recognized by the CPU. According to the TCP/IP protocol, this module can convert the data transmitted on the network to ensure the smooth interaction of data between different devices. It supports the IEEE802.3 Ethernet standard and can provide communication in line with the 10BaseT standard (10MBit), achieving the standardization and high - efficiency of network communication.

Tag：ABB E3EC HENF315125R1

ABB E3EC HENF315125R1 Ethernet communication module

Specific Parameters

Communication Standard: Complies with the IEEE802.3 Ethernet standard, adapts to 10BaseT standard communication, with a rate of 10 MBit/s.
Power Supply Characteristics: Has an optional backup battery function to provide redundant power protection for the main memory when the system is powered off.
Memory Access: Supports direct access to the main memory.
Dimensions: 150mm in length, 80mm in width, and 40mm in height.
Weight: 0.6kg.
Operating Temperature Range: -20°C to 60°C.
Input Voltage: 24V DC±10%.
Output Voltage: 5V DC.
Communication Interface: Equipped with an RJ45 Ethernet interface.

Product Performance

High – speed Communication: The transmission rate is stably 10 MBit/s, ensuring fast and accurate data transmission in the industrial network to meet the real – time control requirements.
Reduce CPU Load: Direct access to the main memory greatly reduces the burden of the CPU in network communication processing, improving the overall operating efficiency of the system.
High Reliability: The optional backup battery function effectively prevents the loss of key data when the system is powered off, ensuring data integrity and system operation stability.
Easy to Integrate: The design structure is flexible and can be easily integrated with common control systems such as PLC and DCS without complex re – configuration and programming operations, reducing the difficulty and cost of system integration.
Visible Status: The front panel is integrated with an LED indicator, intuitively and clearly showing the current communication status, facilitating operators to quickly understand the working condition of the module.
Secure and Reliable: The data transmission adopts encryption and verification mechanisms to prevent data from being stolen, tampered with or leaked, ensuring data security and integrity.
Precise Control: Uses digital control technology to achieve high – precision industrial process control and equipment status monitoring
