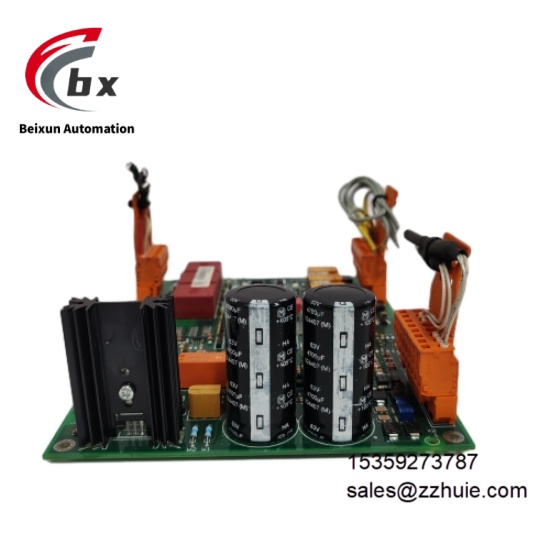

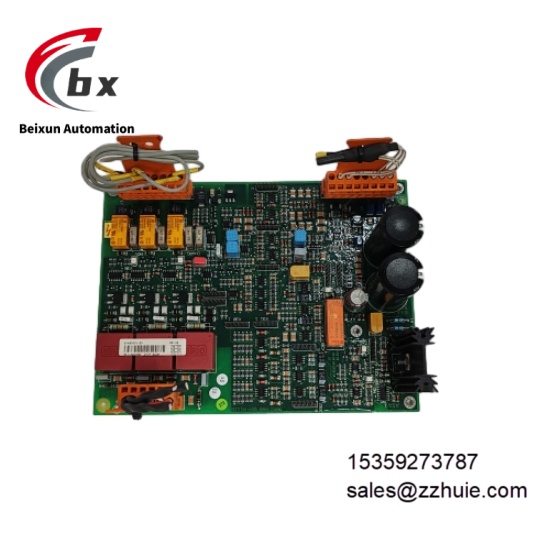

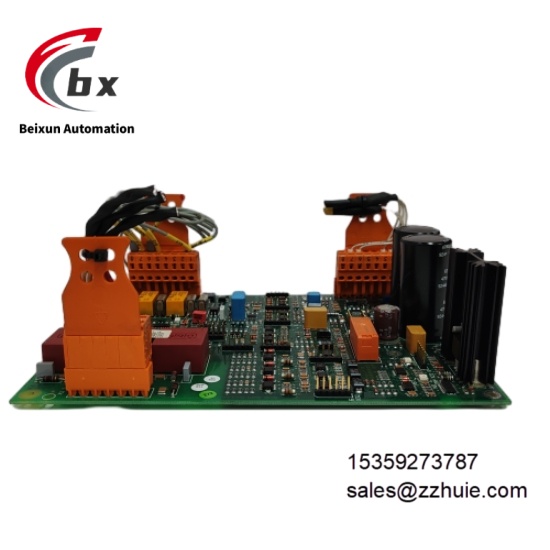

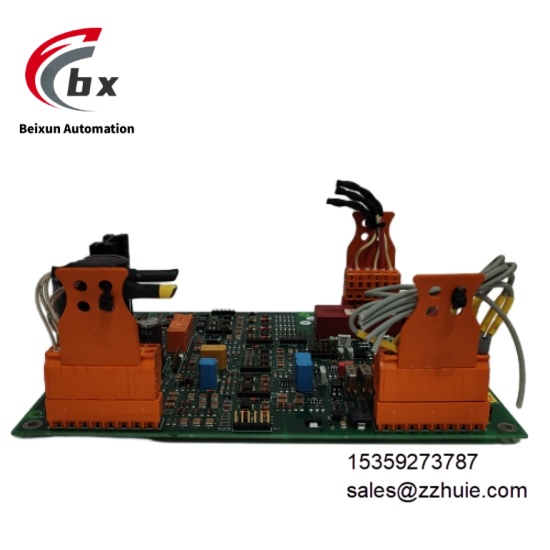

ABB DYTP600A 61430001-ZY Programmable Signal Processing and Control Module

ABB DYTP600A 61430001-ZY Programmable Signal Processing and Control Module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (±10%), supporting 20-30V DC wide voltage input, peak withstand voltage 36V DCSignal Types: Analog input (4-20mA/0-10V/1-5V), analog output (4-20mA/0-10V), digital input (dry contact/PNP/NPN), digital output (relay/transistor), pulse input (0-1kHz)Communication Interfaces: 2 Gigabit Ethernet (10/100/1000Mbps), 2 RS-485 serial interfaces, 1 PROFIBUS DP interfaceCommunication Protocols: Supports Modbus RTU/TCP, PROFIBUS DP, EtherNet/IP, HART 7.0 protocols, built-in 22 communication drivers for third-party devicesIsolation Level: Electrical isolation between signal channels and between channels and system bus, isolation voltage ≥2500V DC, insulation resistance ≥200MΩ (500V DC)Protection Functions: Channel short-circuit current limiting protection (300mA), power reverse connection protection (no damage at -30V DC), surge protection (6kV common mode/3kV differential mode, compliant with IEC 61000-4-5)Power Consumption: ≤18W under normal operation, ≤22W under full-load signal processing
• Environmental ParametersOperating Temperature: -40°C to 75°C (non-condensing, no derating during startup from -40°C to 0°C)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)EMC Immunity: Complies with EN 61326-1 Class A industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge), RF radiation protection ≤54dBμV/m (30MHz-1GHz)Vibration Resistance: 10-500Hz, 1.5g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, 2 hours test for X/Y/Z axes each)Shock Resistance: 50g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock, 3 times for X/Y/Z axes each)Certification Standards: IEC 61508 SIL 2 certification, CE (EMC and safety), UL 508C, ATEX Zone 2/II 2G Ex db IIC T4 Ga, IECEx Ex db IIC T4 Ga
• Mechanical ParametersDimensions: 150mm (L) × 90mm (W) × 40mm (H, including terminals)Weight: Approximately 0.7kg (module itself), 1.2kg (shipping weight including anti-static packaging)Mounting Method: 35mm DIN rail snap-on mounting (compliant with EN 60715 standard) or ABB standard 19-inch rack slot mounting (2U height)Housing Material: Flame-retardant reinforced glass fiber plastic (UL 94 V-0 grade, oil-resistant, weak acid and alkali corrosion-resistant)Terminal Type: Spring-loaded crimp terminals (compatible with 14-24 AWG wires, tool-free wiring, terminal torque 0.5-0.8N·m)Indicators: Power Status (PWR, green steady on), Operation Status (RUN, green 1Hz blinking), Redundancy Status (RED, yellow steady on), Communication Status (ETH1/ETH2/RS485, green blinking), Fault Status (ERR, red steady on), Channel Status (16 bi-color LEDs, green on for normal signal, red on for channel fault)

Product Performance

The module adopts a 32-bit ARM Cortex-A9 dual-core processor (1GHz clock speed) and a 24-bit Δ-Σ high-precision ADC. The analog signal acquisition accuracy is ≤±0.1% full scale, and the temperature drift is ≤0.001% full scale/℃ (range -40°C to 75°C), ensuring measurement accuracy in extreme environments. The digital signal response time is ≤3ms, and the pulse signal capture accuracy is ≤1μs, which can quickly capture high-frequency state changes of equipment.

It supports dual Ethernet redundancy and dual RS-485 redundancy design, with a communication link switching time ≤50ms. No data is lost when a single link fails, ensuring continuous transmission of control commands and monitoring data. The built-in intelligent diagnostic algorithm can real-time detect 16 types of faults such as channel open/short circuit, signal over-limit, communication interruption, and power abnormality, with a diagnostic coverage rate ≥99.8%. Fault information is uploaded to the control system in real time via the bus, and local sound and light alarms are triggered simultaneously (alarm module optional).

The module supports online configuration download and hot-swap operation. The configuration update time is ≤10 seconds, and the module replacement time is ≤15 seconds. The maintenance process does not interrupt system operation. It is compatible with ABB 800xA, AC 800F, and third-party control systems (such as Siemens PCS 7, Rockwell ControlLogix), and can be graphically programmed and parameter-configured via ABB Control Builder M software. The Mean Time Between Failures (MTBF) is ≥1,400,000 hours (MIL-HDBK-217F, 25℃ environment), adapting to 24/7 continuous production scenarios.
