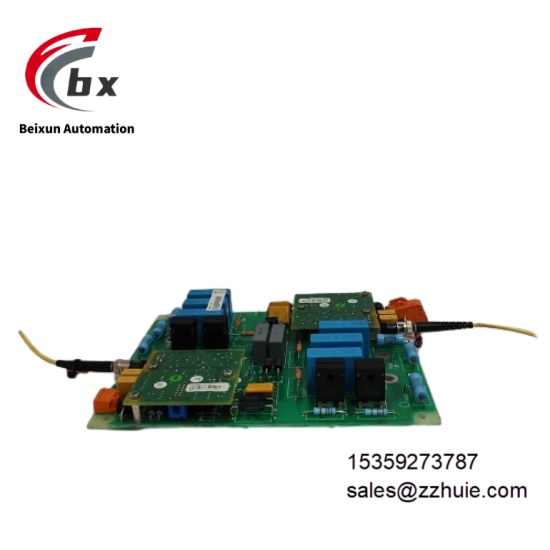

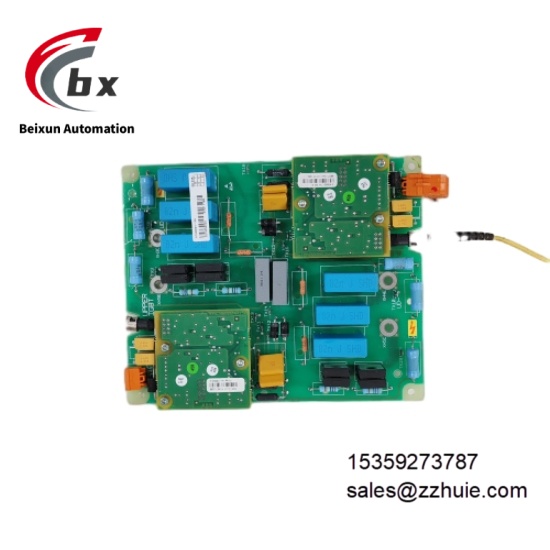

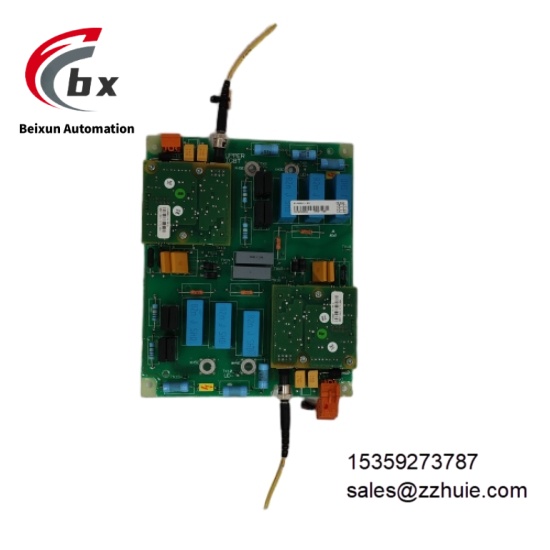

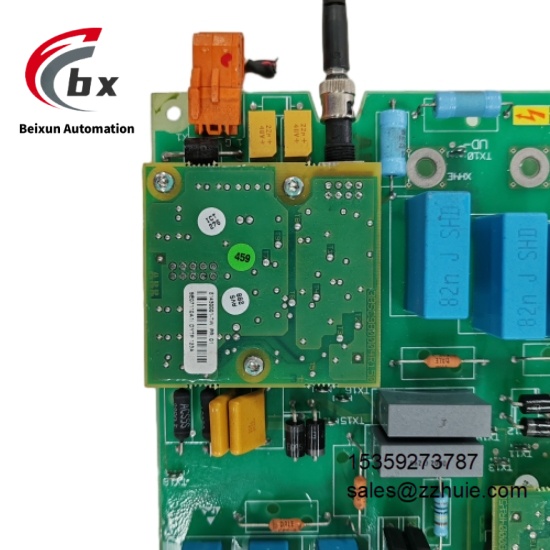

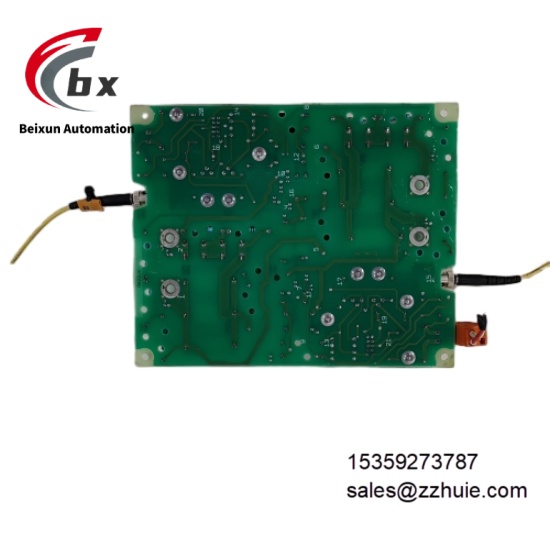

ABB DYTP123A 61430001-TW Programmable Signal Processing and Control Module

ABB DYTP123A 61430001-TW Programmable Signal Processing and Control Module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (±10%), supporting 20-30V DC wide voltage inputSignal Types: Compatible with 4-20mA analog input, 0-10V analog output, dry contact/transistor digital input and outputCommunication Interfaces: 1 Ethernet (10/100Mbps), 2 RS-485 serial interfacesCommunication Protocols: Supports Modbus RTU/TCP, PROFIBUS DP, Ethernet/IP protocolsIsolation Level: Isolation voltage ≥1000V DC between signal channels and system bus, insulation resistance ≥100MΩ (500V DC)Protection Functions: Channel short-circuit protection, power reverse connection protection, surge protection (4kV common mode)Power Consumption: Normal operation power consumption ≤14W
• Environmental ParametersOperating Temperature: -40°C to 75°C (non-condensing)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing)EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge)Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6 standard)Certification Standards: CE certification, UL certification, ATEX Zone 2 explosion-proof certification
• Mechanical ParametersDimensions: 140mm×80mm×35mmWeight: Approximately 0.6kgMounting Methods: DIN rail mounting or ABB standard rack slot mountingHousing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Terminal Type: Spring-loaded crimp terminals, compatible with 16-24 AWG wiresIndicators: Power (PWR, green steady on), Operation (RUN, green blinking), Fault (ERR, red steady on), Communication (COM, yellow blinking)

Product Performance

The module adopts a high-performance signal processing chip, with data acquisition response time ≤4ms and analog signal measurement accuracy ≤±0.1% full scale, which can synchronize on-site equipment operation data and control commands in real time. It has a built-in intelligent diagnostic engine that can automatically detect abnormal states such as channel open/short circuit and communication timeout, with a fault diagnosis coverage rate >99%. Diagnostic information is synchronously fed back through the bus and indicator lights.

It supports dual redundant communication link design, which automatically switches when communication is interrupted with a switching time ≤100ms, ensuring data transmission continuity. The module has 24/7 continuous operation capability, with a Mean Time Between Failures (MTBF) ≥1,300,000 hours (25℃ environment), and supports hot-swap operation, with maintenance and replacement time ≤8 seconds.

The module can be seamlessly integrated with ABB 800xA, AC 800F and other control systems, compatible with communication protocols of third-party PLC systems such as Rockwell and Schneider, to achieve cross-platform data intercommunication. The overall structure adopts electromagnetic shielding design, and its anti-interference ability meets industrial-grade requirements, adapting to stable operation in complex electromagnetic environments.
