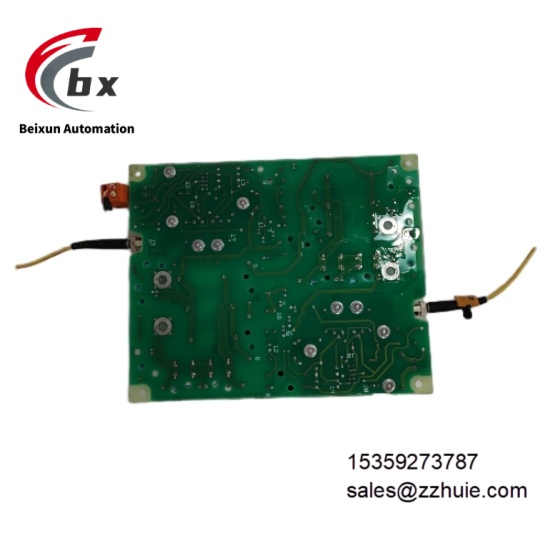

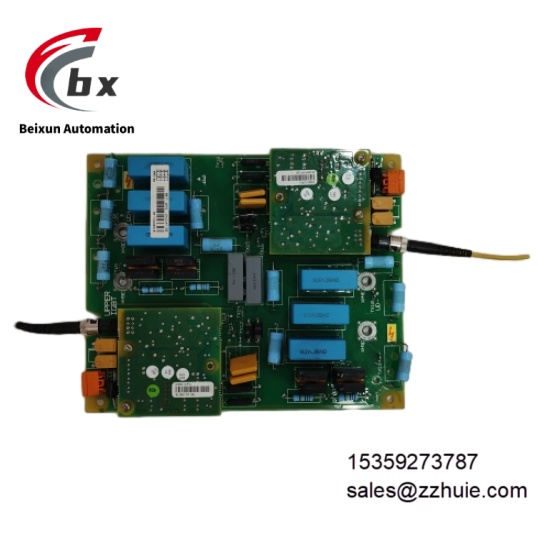

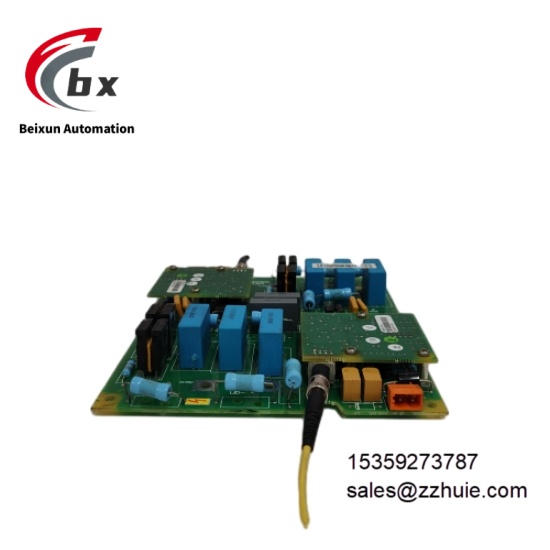

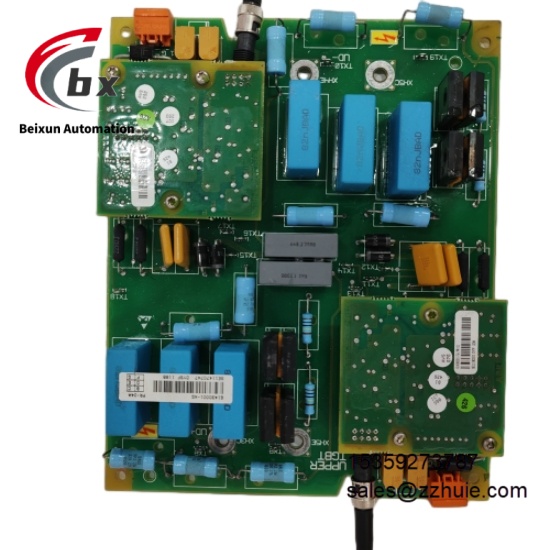

ABB DYSF118B 61430001-XG Communication and signal processing integrated module

ABB DYSF118B 61430001-XG Communication and signal processing integrated module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (±10%), supporting 20-30V DC wide voltage inputSignal Types: Compatible with analog signal acquisition of vibration, temperature, pressure, etc., supporting digital signal input and outputCommunication Interfaces: 1 Ethernet (10/100Mbps), 1 RS-232, 1 RS-485Communication Protocols: Supports Modbus RTU/TCP, PROFIBUS DP, Ethernet/IP protocolsIsolation Level: Isolation voltage ≥1500V DC between signal channels and system bus, insulation resistance ≥100MΩ (500V DC)Protection Functions: Channel short-circuit protection, power reverse connection protection, surge protection (4kV common mode)Power Consumption: Normal operation power consumption ≤12W
• Environmental ParametersOperating Temperature: -40°C to 85°C (non-condensing)Storage Temperature: -40°C to 100°CRelative Humidity: 5% to 95% (non-condensing)EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge)Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6 standard)Certification Standards: CE certification, UL certification, ATEX Zone 2 explosion-proof certification
• Mechanical ParametersDimensions: 100mm×50mm×150mmWeight: Approximately 0.25kgMounting Methods: DIN rail mounting or ABB standard rack slot mountingHousing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Terminal Type: Spring-loaded crimp terminals, compatible with 16-24 AWG wiresIndicators: Power (PWR, green steady on), Operation (RUN, green blinking), Fault (ERR, red steady on), Communication (COM, yellow blinking)

Product Performance

The module adopts a high-speed signal processing chip, with data acquisition response time ≤3ms and analog signal measurement accuracy ≤±0.1% full scale, which can capture equipment operation status changes in real time. It has a built-in intelligent analysis algorithm that can automatically identify abnormal states and trigger fault early warning, with a fault diagnosis coverage rate ≥99.5%. Diagnostic information is synchronously fed back through the bus and indicator lights.

It supports dual redundant communication link design, which automatically switches when communication is interrupted with a switching time ≤100ms, ensuring data transmission continuity. The module has 24/7 continuous operation capability, with a Mean Time Between Failures (MTBF) ≥1,500,000 hours (25℃ environment), and supports hot-swap operation, with maintenance and replacement time ≤5 seconds.

The module can be seamlessly integrated with ABB 800xA, AC 800F and other control systems, compatible with third-party equipment communication protocols to achieve cross-system data intercommunication. The overall structure adopts electromagnetic shielding design, and its anti-interference ability meets industrial-grade requirements, adapting to stable operation in complex electromagnetic environments.
