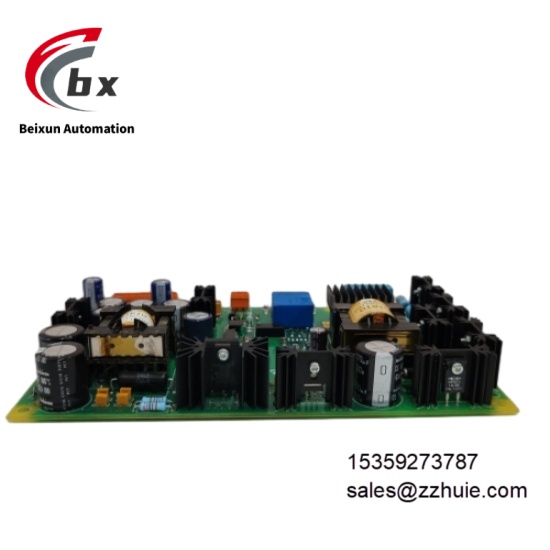

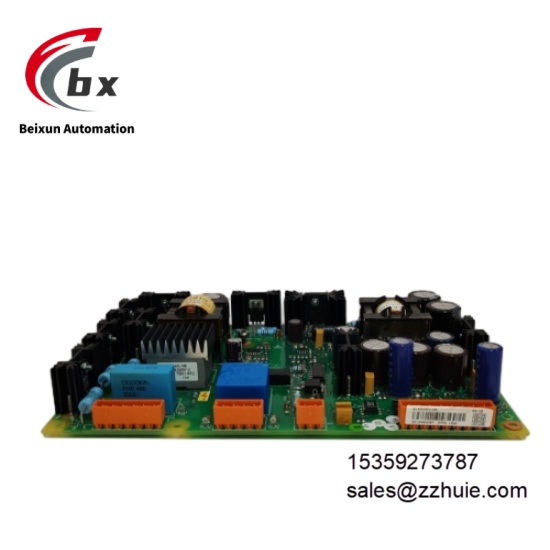

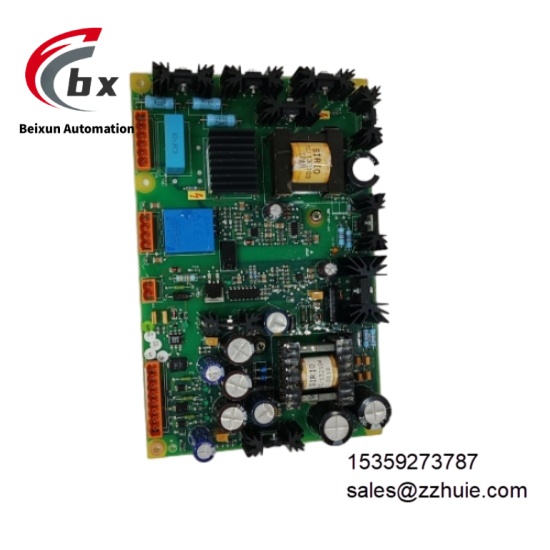

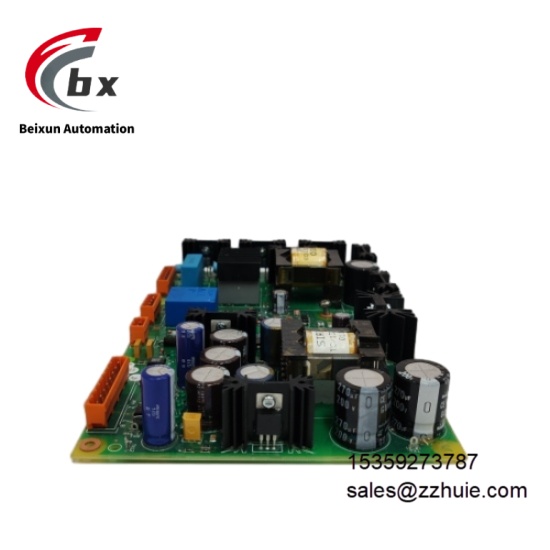

ABB DYPS154C 61430001-YP Digital Signal Processor (DSP) module

ABB DYPS154C 61430001-YP Digital Signal Processor (DSP) module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (±10%), supporting 20-30V DC wide voltage inputSignal Processing: Compatible with 4-20mA analog inputs, dry contact/transistor digital inputs/outputsCommunication Interfaces: 1 Ethernet (10/100Mbps), 2 RS-485/RS-232 serial interfacesCommunication Protocols: Supports Modbus RTU/TCP, CAN, HART protocols, built-in 16 communication driversIsolation Level: Electrical isolation between signal channels and system bus, isolation voltage ≥1000V DCProtection Functions: Channel short-circuit protection, power reverse connection protection, overcurrent protection (2A current limiting)Power Consumption: Normal operation power consumption ≤15W
• Environmental ParametersOperating Temperature: -40°C to +85°C (non-condensing)Storage Temperature: -40°C to +100°CRelative Humidity: 5% to 95% (non-condensing)EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge)Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6)Certification Standards: CE certification, UL certification, ATEX Zone 2 explosion-proof certification
• Mechanical ParametersDimensions: 160mm×100mm×40mmWeight: Approximately 0.8kgMounting Methods: DIN rail mounting or ABB standard rack slot mountingHousing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Terminal Type: Spring-loaded crimp terminals, compatible with 16-24 AWG wiresIndicators: Power (PWR, green), Operation (RUN, green blinking), Fault (ERR, red), Communication (COM, yellow)

Product Performance

The module uses a high-speed DSP chip to support floating-point operations and parallel processing, with a data acquisition response time ≤5ms and signal processing accuracy ≤±0.1% full scale. The built-in diagnostic engine can real-time detect abnormalities such as channel open/short circuit and communication timeout, with a diagnostic coverage rate >99%. Fault information is real-time fed back via LED indicators and bus.

The module supports dual redundant communication links, automatically switching during communication interruptions to ensure data transmission continuity. Its industrial protocol stack is compatible with mainstream control systems and can be seamlessly integrated with platforms such as ABB 800xA and Siemens PCS 7 to achieve cross-vendor device interoperability. The module has a Mean Time Between Failures (MTBF) ≥1,200,000 hours (25°C environment), supports live replacement, and maintenance time ≤10 seconds.
