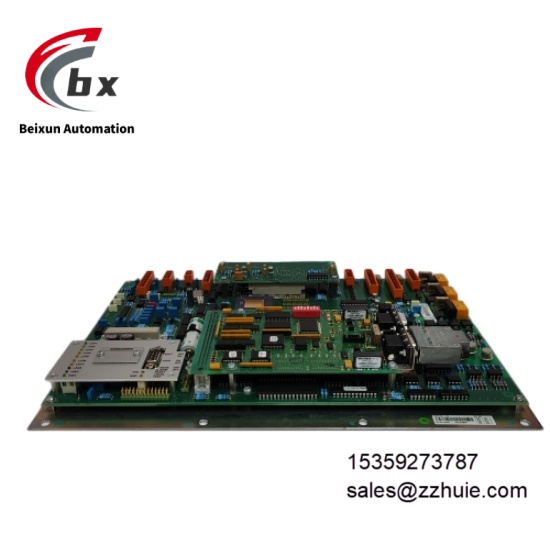

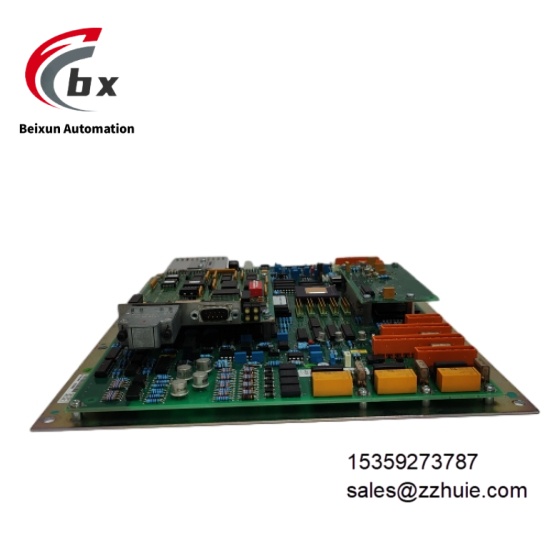

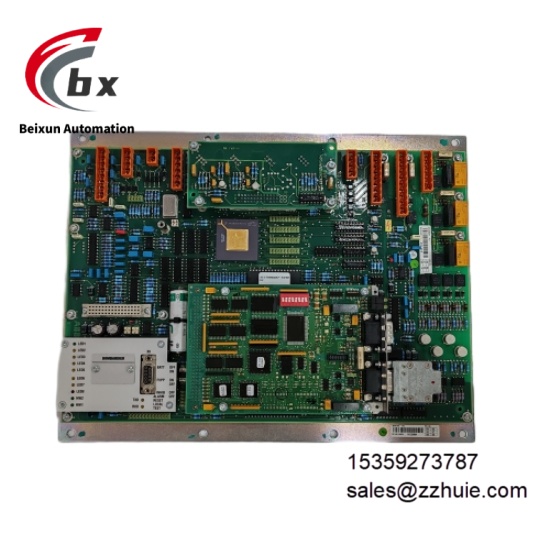

ABB DTCC901B 61430001-FU Distributed Control System (DCS) Core Module

ABB DTCC901B 61430001-FU Distributed Control System (DCS) Core Module

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (±10%), supporting 20-30V DC wide voltage input, power consumption ≤15WSignal Types: Analog inputs compatible with 4-20mA/0-10V, digital inputs supporting dry contact/transistor signals, digital outputs supporting relay contact/transistor driveCommunication Interfaces: 2 Ethernet (10/100Mbps), 1 RS-485, supporting Modbus RTU/TCP, Profibus DP, HART protocolsIsolation Level: Isolation voltage ≥1500V DC between channels and between channels and system bus, insulation resistance ≥100MΩ (500V DC)Protection Functions: Power reverse connection protection, overcurrent protection (2A current limiting), surge protection (4kV common mode/differential mode)
• Environmental ParametersOperating Temperature: -20°C to +70°C (non-condensing)Storage Temperature: -40°C to +85°CRelative Humidity: 5% to 95% (non-condensing)EMC Immunity: Complies with EN 61326-1 standard, ESD protection ±15kV (air discharge)Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6)Certification Standards: CE certification, UL certification, ATEX Zone 2 explosion-proof certification
• Mechanical ParametersDimensions: 160mm×100mm×40mmWeight: Approximately 0.8kgMounting Methods: DIN rail mounting or ABB standard rack slot mountingHousing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Terminal Type: Spring-loaded crimp terminals, compatible with 16-24 AWG wiresIndicators: Power (PWR, green), Operation (RUN, green blinking), Fault (ERR, red), Communication (COM, yellow)

Product Performance

The module supports dual redundant communication links, automatically switching during communication interruptions to ensure data transmission continuity. The analog signal processing accuracy is ≤±0.1% full scale, and the digital signal response time is ≤5ms, enabling real-time synchronization of on-site equipment status. The built-in diagnostic engine can detect abnormalities such as channel open/short circuit and communication timeout, with a diagnostic coverage rate >99%. Fault information is real-time fed back via LED indicators and bus.

The module has a Mean Time Between Failures (MTBF) ≥1,200,000 hours (25°C environment), supports live replacement, and maintenance time ≤10 seconds. Its industrial protocol stack is compatible with mainstream control systems and can be seamlessly integrated with platforms such as ABB 800xA and Siemens PCS 7 to achieve cross-vendor device interoperability.
