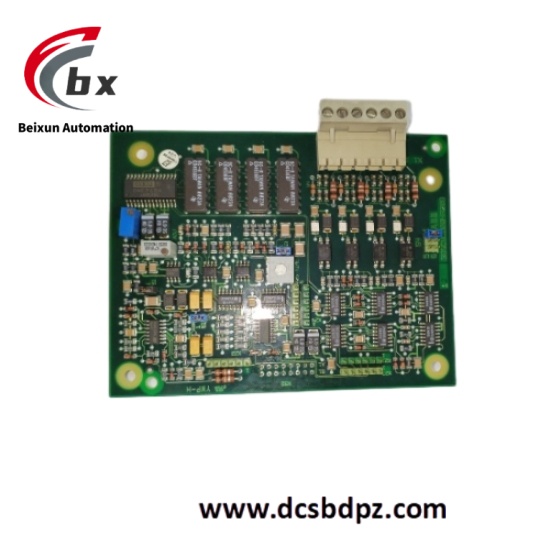

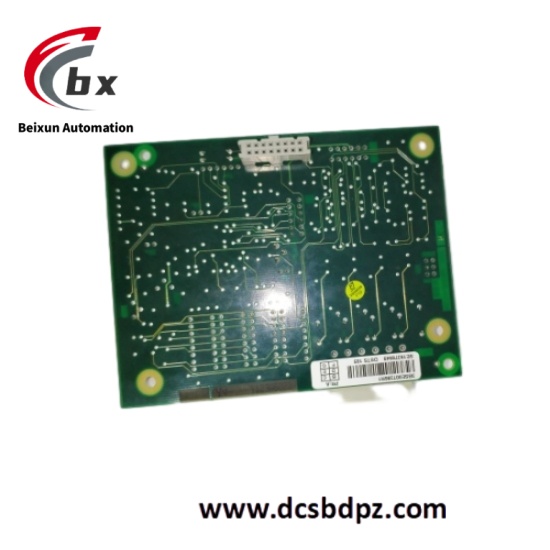

ABB DSTS105 3BSE007286R1 Analog input/output module

The ABB DSTS105 3BSE007286R1 is an analog input/output module used in the industrial automation field. It plays a crucial role in industrial control systems. It can accurately collect various analog signals such as temperature, pressure, and flow rate, and convert these analog signals into digital signals for transmission to the control system. At the same time, this module receives digital commands issued by the control system, converts them into analog signals for output, and thus controls the actions of various actuators. Through the control and status register, the host computer can perform a series of operations. For example, it can enable or disable the local processor (Z180), assert or de - assert an interrupt to the local processor, sense and clear an interrupt from the local processor, control an indicator LED, assert or de - assert the VME SYSFAIL signal from the card, enable or disable access to the card's shared RAM, and enable or disable write protection to the local processor's code space. Since its short address space is essentially a D08(O) Slave, the addresses of objects in the space are not continuous, and accessing addresses outside the specific table or objects larger than 8 bits will cause a VMEbus error.

Tag：ABB DSTS105 3BSE007286R1

ABB DSTS105 3BSE007286R1 Analog input/output module

Specific Parameters

Part Number: 3BSE007286R1
Brand: ABB
Input/Output Type: Analog input/output
Number of Analog Input Channels: 8 channels
Number of Analog Output Channels: 4 channels
Analog Input Range: Voltage input: ±10V, ±5V, 0 – 10V; Current input: 4 – 20mA, 0 – 20mA
Analog Output Range: Voltage output: ±10V, 0 – 10V; Current output: 4 – 20mA, 0 – 20mA
Resolution: 16 – bit
Accuracy: ±0.1%FS (Full Scale)
Sampling Frequency: Up to 10kHz
Location of Control and Status Register: Located at offset 1 from the selected register base address in short address space
Register Characteristics: The register bits are high – true and can realize a variety of control operations on the local processor and related functions
Communication Capability: Supports communication and connection with various sensors and actuators in the industrial field. The specific communication protocol is not clear yet.

Product Performance

Precise Analog Processing: It has high – precision analog processing capabilities, can accurately acquire and output analog signals, provide a reliable data foundation for industrial control, and ensure the accurate monitoring of industrial field parameters and the precise control of equipment by the system.
Diverse Control Functions: With the help of the control and status register, it can achieve diverse control of the local processor and related hardware resources, meet the differential control requirements for the module in different industrial scenarios, and improve the flexibility and manageability of system operation.
Good Equipment Compatibility: It has the ability to connect with a variety of industrial field devices, can adapt to complex industrial control system architectures, and is convenient to work in coordination with other devices to build a complete industrial automation system.
