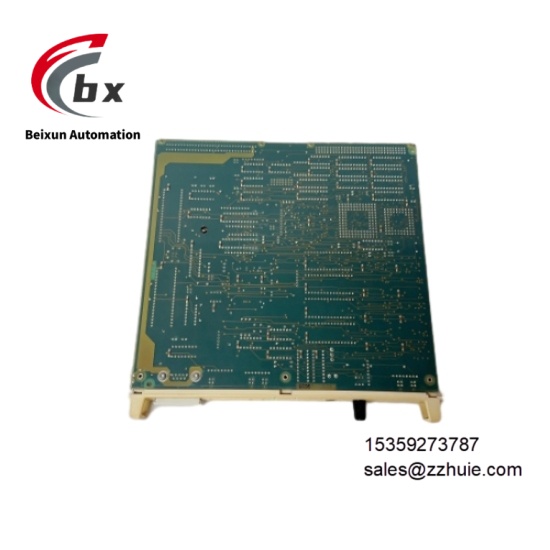

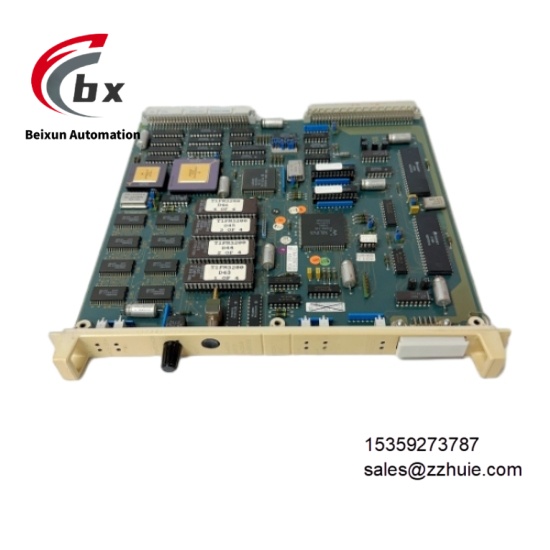

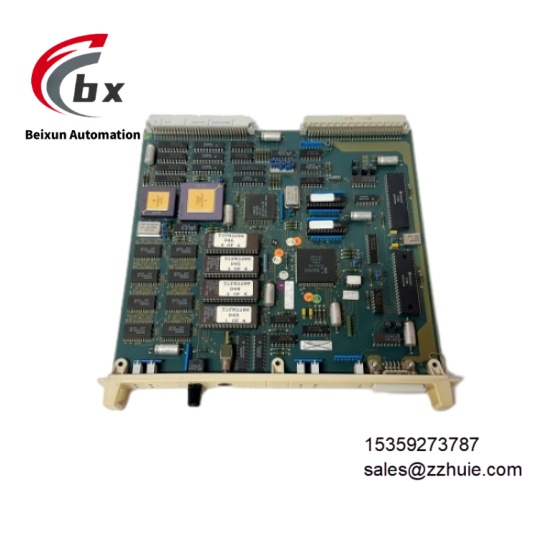

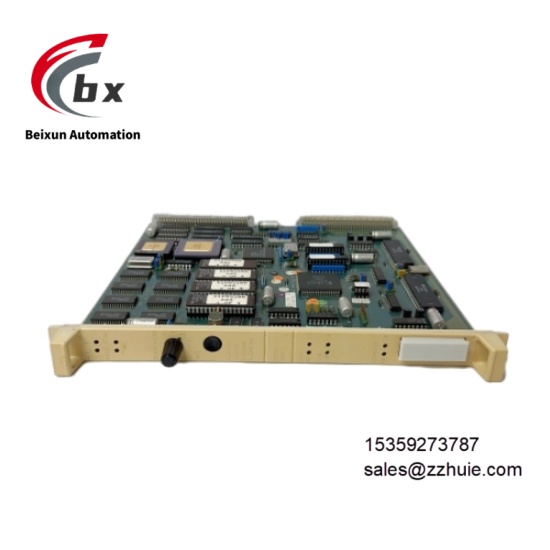

ABB DSCA190V 57310001-PK Communication processor and I/O module
Specific Parameters
Electrical Parameters
Operating Voltage Dual power supply redundant input, 9~36VDC, typical value 24VDC, power consumption less than 4WCommunication Protocol Supports Profibus DP bus standard, pin definition complies with protocol specificationsCommunication Rate 9.6kBit/s, 19.2kBit/s, 45.45kBit/s up to 12MBit/s, supports automatic identification or DIP switch settingInput Signal Compatible with 0-20mA analog signal, limited by 50mA fuseData Format Supports 16-bit integer and 32-bit floating-point formatsProtection Features Equipped with DC1500V voltage isolation, reverse connection protection, 1.5A overcurrent protection, 600W surge protection, 4000V lightning protectionCertification Standards Compliant with CE, C-UL-US (Class I, Division 2, Groups A, B, C, D) standards
Mechanical Parameters
Overall Dimensions 132mm×105mm×52mm, compact structureWeight Approximately 0.8kgMounting Method 35mm DIN rail mounting, supporting horizontal or vertical layoutHousing Material Wave-patterned aluminum reinforced casing with good mechanical strength and anti-interference performanceConnection Method 9-pin Sub-D jack connector, industrial terminal interface, standard SC optical interface (FC/ST optional)Protection Rating IP30, dustproof and solid foreign object intrusion preventionStatus Indication Equipped with power, operation, communication and fault status display functions
Environmental Parameters
Operating Temperature -10℃ to 70℃, extended temperature version optional (-40℃ to 85℃)Storage Temperature -40℃ to 80℃, meeting extreme storage and transportation requirementsRelative Humidity ≤90% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with industrial standards, capable of withstanding 3g acceleration at 3Hz-57Hz frequency range and 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance Withstands mechanical shocks during installation and transportation, complying with industrial shock standardsEMC Compliance Meets standard anti-external electromagnetic interference capability, adapting to complex industrial electromagnetic environments
Product Performance
High-speed data processing: Updates data of all 16 channels in 8 milliseconds, ensuring data real-time performanceFlexible channel configuration: Each channel’s measurement range can be set independently, adapting to different process control needsAdjustable communication rate: Multiple speed options and automatic identification function, adapting to different network environmentsReliable redundant design: Dual power supply redundant input with reverse connection protection, avoiding the impact of power supply failuresStrong protection capability: Multiple electrical protection and lightning protection design, reducing failure risks in harsh environmentsConvenient diagnosis and maintenance: Equipped with comprehensive diagnostic tools, supporting remote maintenance and fault troubleshootingWide compatibility: Seamlessly integrates with ABB 800xA, Bailey Infi 90 and other control systems as well as various PLC equipmentDurable structure: Aluminum reinforced casing design, with outstanding resistance to vibration and temperature fluctuations
