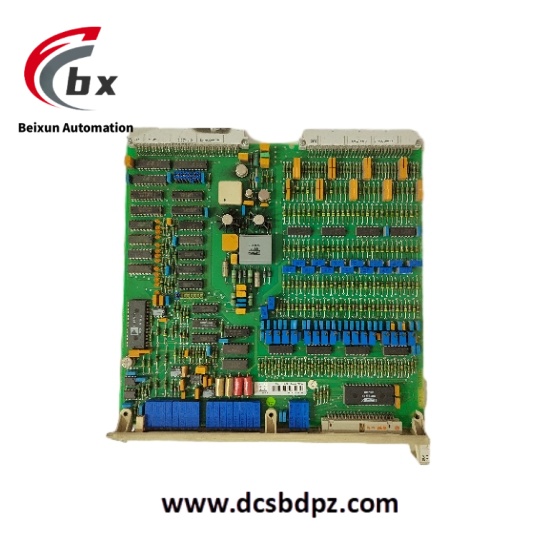

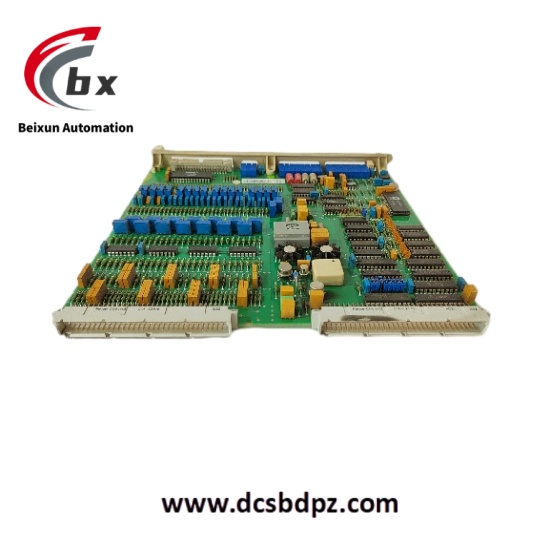

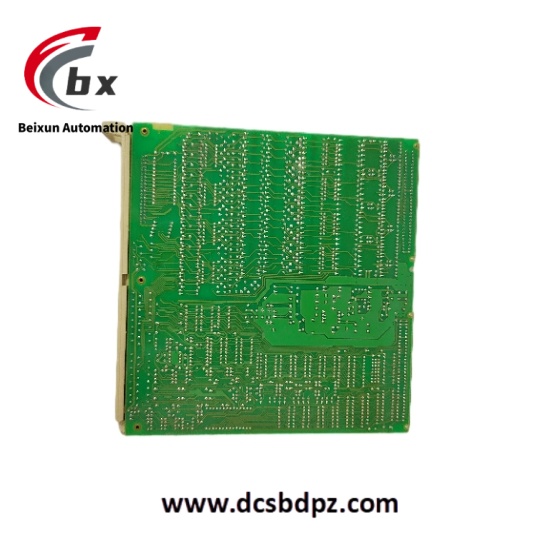

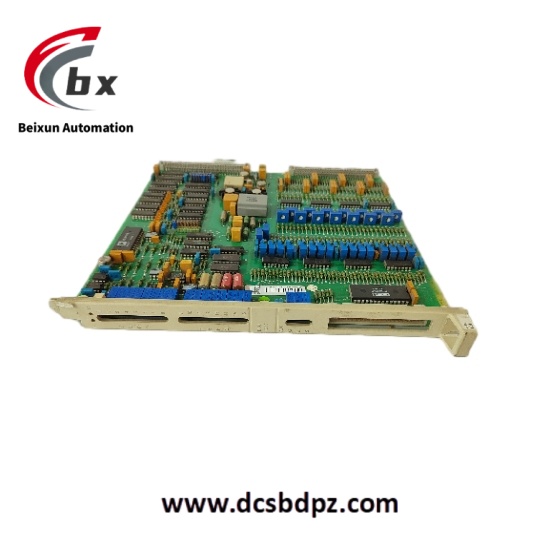

ABB DSAI130D 3BSE003127R1 High performance analog input module
Specific Parameters
- Number of Input Channels: 8 or 16 channels.
- Input Voltage: 24V DC.
- Input Signal Types: Supports current signals such as 0 – 20mA, 4 – 20mA, and voltage signals such as ±10V.
- Resolution: 12 to 16 bits.
- Sampling Rate: Up to 250Hz.
- Accuracy: ±0.01% to ±0.1% of full scale.
- Filter Function: Supports various filtering methods to effectively remove signal noise.
- Conversion Time: 20ms.
- Cut – off Frequencies: 10Hz, 30Hz, 100Hz, 300Hz.
- Input Impedance: 250Ω.
- Update Rate: 1ms.
- Communication Interfaces: Supports multiple industrial communication protocols such as Profibus DP, Modbus TCP/IP, and Ethernet.
- Operating Temperature Range: -40°C to +70°C.
- Storage Temperature Range: -40°C to +85°C.
- Current Consumption: Maximum 100mA.
- Protection Level: IP65.
- Dimensions: Approximately 96 x 96 x 25mm.
- Weight: Approximately 0.475 kg.
Product Performance
- High – Precision Acquisition: Utilizes advanced signal acquisition technology combined with a high – resolution design to ensure the accuracy of the collected analog signals, providing a reliable data foundation for industrial automation systems.
- High Stability: Adopts high – quality materials and advanced manufacturing processes, enabling long – term stable operation in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, ensuring the continuous and reliable operation of the system.
- Strong Anti – interference Ability: Each input channel is independently isolated, effectively resisting external electromagnetic interference, ensuring the authenticity and stability of the collected signals and avoiding the impact of signal distortion on system control.
- Flexible Signal Adaptation: Can adapt to various types of analog input signals, facilitating connection with various sensors and transmitters to meet the needs of different industrial application scenarios.
- Efficient Data Processing: Equipped with a high – performance signal processing circuit, it can quickly perform pre – processing such as filtering and amplifying the collected analog signals and convert them into digital signals at a high rate, meeting the real – time requirements of industrial automation systems.
- Easy Integration: Supports a variety of common industrial communication protocols, facilitating seamless integration with other automation devices and control systems, simplifying system construction and debugging processes.
- Modular Design: Facilitates installation, maintenance, and upgrading. Users can flexibly configure the number of modules and the use of channels according to actual needs.
