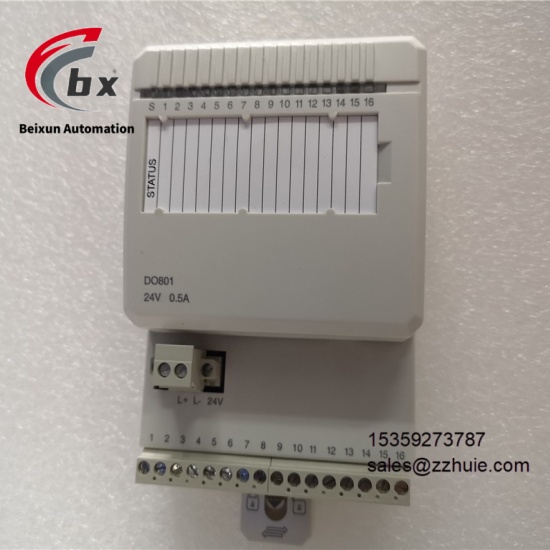

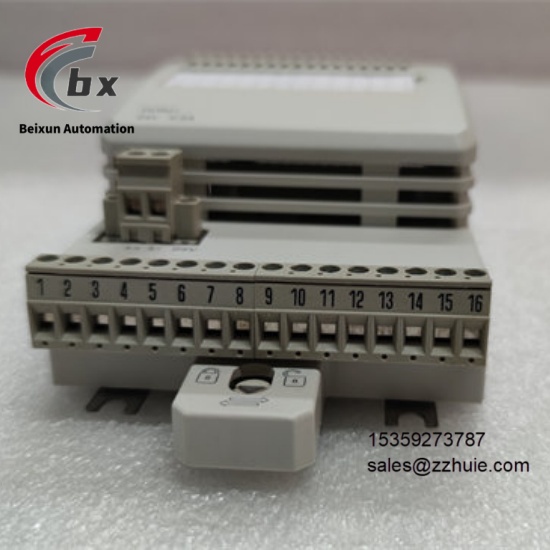

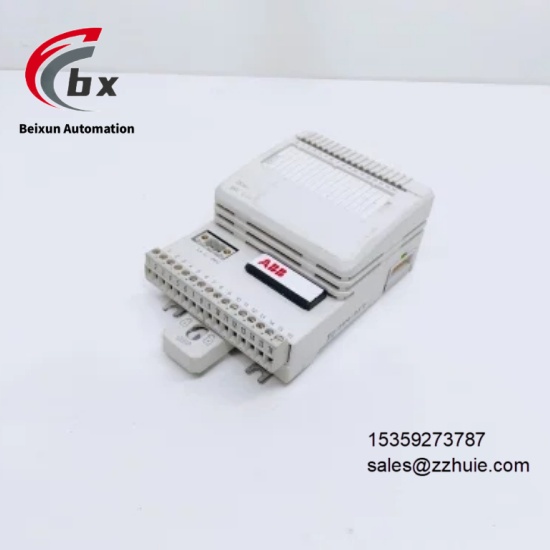

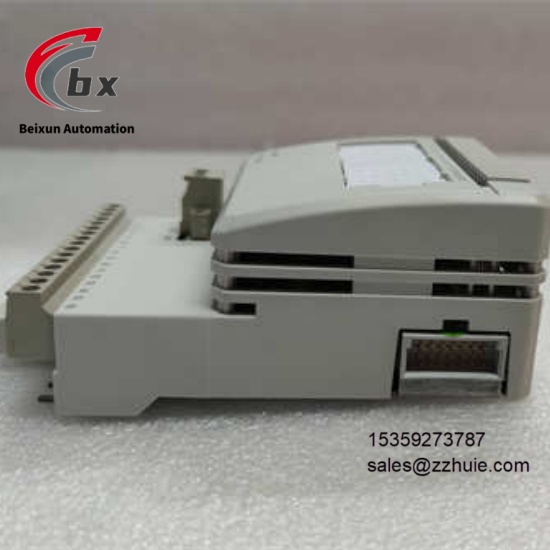

ABB DO801 3BSE020510R1 Digital output module
Specific Parameters
Brand ABB (Switzerland)
Product Series S800 I/O Series Distributed Input and Output Module Series
Product Type Industrial-Grade Digital Output Module, Distributed I/O Output Module, Industrial Control Spare Part Module
Model ABB DO801 3BSE020510R1
Country of Origin Switzerland
Compatible Devices ABB AC800M/AC800F Series DCS Systems, S800 I/O Distributed Systems, Industrial Automation Control Equipment, Process Control Terminals, Actuator Equipment, TU805K01 Terminal Blocks
Output Channels 32 Independent Digital Output Channels
Output Type Relay Output (Dry Contact), Normally Open Contact
Output Capacity AC 250V/5A, DC 30V/2A
Operating Power Supply 24VDC (Input Voltage Range 24VDC±10%)
Rated Power Consumption ≤12W
Response Time ≤2ms (Typical Value)
Isolation Method Photoelectric Isolation Between Channels, Isolation Voltage ≥2500V; Isolation Voltage Between Module and Bus ≥1500V
Communication Protocols PROFIBUS-DP, Modbus RTU/TCP, EtherNet/IP Industrial Communication Protocols
Communication Interfaces 1 PROFIBUS Interface, 1 RS-485 Interface
Protection Type Overvoltage Protection, Overcurrent Protection, Short Circuit Protection, Electromagnetic Interference Protection, Overload Protection
Operating Temperature Range -20℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Level IP20
Physical Dimensions 128mm×153mm×52mm (Length×Width×Height)
Physical Weight Approximately 0.5kg
Mounting Method Standard DIN Rail Mounting, Dedicated Slot Mounting for S800 I/O System
Special Functions LED Status Indication, Fault Diagnosis, Channel Fault Alarm, Hot Swap, Firmware Upgradable, Power Failure Data Protection
Product Material Engineering Plastic
Customizable No
Certification Standards CE, EMC, CCC
Warranty Period 12 Months
Product Performance
Compatible with ABB AC800M/AC800F series DCS and S800 I/O distributed systems, it adopts 24VDC wide voltage power supply with a rated power consumption of ≤12W, which is energy-saving and efficient, and can operate 24 hours a day. As a spare part, it can quickly replace faulty modules to ensure the continuity of system control.
Equipped with 32 independent digital output channels, relay dry contact output, the output capacity meets the drive needs of various actuators, the response time is ≤2ms, the control command is executed in real time, which can accurately realize equipment start-stop, valve switch and other functions, and the output signal is stable.
Both between channels and between module and bus have high-level photoelectric isolation, which can effectively resist electromagnetic interference on industrial sites. Combined with multiple safety protection mechanisms, it can prevent module damage, signal crosstalk and control interruption, comply with international certification standards, and run safely and reliably.
Supports a variety of mainstream industrial communication protocols and interfaces, can be seamlessly integrated into various PLC/DCS systems, realizing real-time feedback of output status, remote parameter configuration and remote fault diagnosis, with strong communication stability, adapting to the upgrade needs of old and new systems.
With a protection level of IP20, the engineering plastic material has a strong structure, adapting to a wide temperature environment of -20℃ to 70℃, which can operate stably in harsh industrial scenarios such as high dust and strong vibration, with a long service life, suitable for long-term storage of spare parts.
Integrated with LED status indication and complete fault diagnosis functions, it can quickly identify fault channels and types, support hot swap and firmware upgrade, with convenient installation and maintenance, greatly improving equipment operation and maintenance efficiency, strong versatility, and adapting to fault replacement needs of various industrial scenarios.
