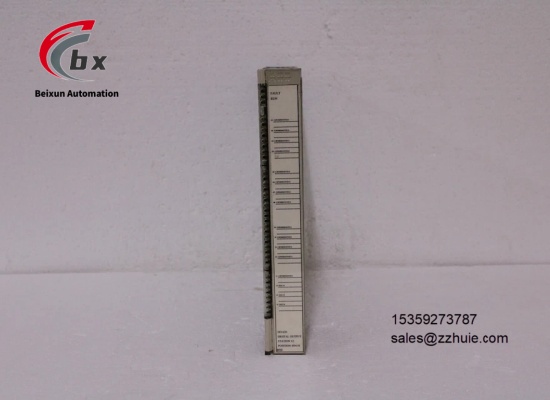

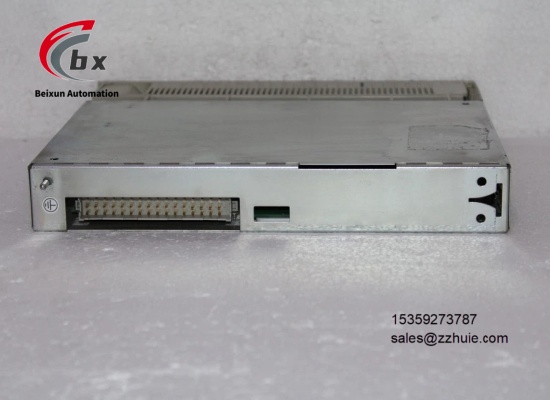

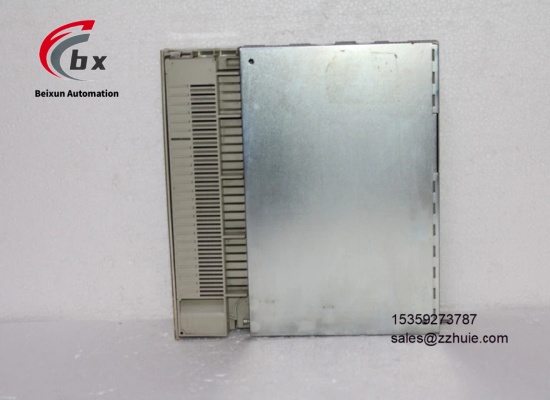

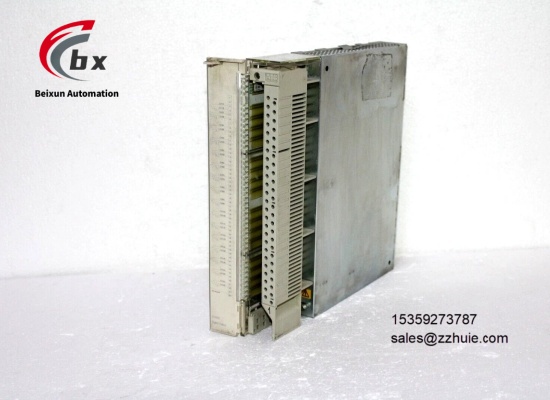

ABB DO630 3BHT300007R1 Digital output module
Specific Parameters
Brand ABB (Switzerland)
Product Series Advant OCS Series Process Control Module Series
Product Type Industrial-Grade Digital Output Module, DCS/PLC Matching Output Module, Industrial Control Spare Part Module
Model ABB DO630 3BHT300007R1
Country of Origin Switzerland
Compatible Devices ABB Advant OCS DCS System, Symphony Plus DCS Systems, AC500 PLC Systems, Industrial Automation Control Equipment, Process Control Terminals, Actuator Equipment
Output Channels 16 Independent Digital Output Channels
Output Type Relay Output, Normally Open Contact
Output Capacity AC 250V/5A, DC 30V/5A
Operating Power Supply 24VDC (Input Voltage Range 24VDC±10%)
Rated Power Consumption ≤15W
Response Time ≤10ms
Isolation Method Photoelectric Isolation Between Channels, Isolation Voltage 3000V AC/1 Minute
Communication Protocols Modbus RTU, TCP/IP, Profibus DP Industrial Communication Protocols
Communication Interfaces 1 Ethernet Interface, 1 RS-485 Interface, 1 RS-232 Interface
Protection Type Overvoltage Protection, Overcurrent Protection, Short Circuit Protection, Electromagnetic Interference Protection, Surge Protection
Operating Temperature Range -20℃ to 60℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Level IP20
Physical Dimensions 190mm×140mm×55mm (Length×Width×Height)
Physical Weight Approximately 0.7kg
Mounting Method Standard DIN Rail Mounting, Dedicated Slot Mounting for ABB Advant OCS System
Special Functions LED Status Indication, Fault Diagnosis, Channel Fault Alarm, Power Failure Data Protection, Plug and Play
Product Material Aluminum Alloy
Customizable No
Certification Standards IEC 61131-3, CE, EMC
Warranty Period 12 Months
Product Performance
Compatible with ABB Advant OCS DCS systems, Symphony Plus DCS systems and various industrial automation control equipment, adopting 24VDC wide voltage power supply, with a rated power consumption of ≤15W, it is energy-saving and efficient, can adapt to the 24-hour uninterrupted operation needs of industrial automation, process control and other scenarios, has high operational stability, and can also be used as an industrial control spare part module to quickly complete the replacement of faulty modules and ensure the continuity of digital output and system control.
It mainly has high-performance digital output and equipment control functions, equipped with 16 independent digital output channels, adopting relay normally open contact output, with an output capacity of AC 250V/5A and DC 30V/5A, and a response time of ≤10ms. It can accurately drive various industrial actuators and contactors, realize equipment start-stop, valve switch and other control functions, with stable output signals and high control precision, meeting the diverse digital output needs of industrial sites.
Integrated with complete isolation and protection functions, the channels adopt 3000V AC photoelectric isolation design, which can effectively resist electromagnetic interference on industrial sites and prevent signal crosstalk between channels. At the same time, it has multiple protection mechanisms such as overvoltage, overcurrent, short circuit and surge, which can effectively protect the module itself, connected equipment and operators, avoiding module damage or control interruption caused by voltage fluctuations and circuit faults.
Integrated with rich communication interfaces and protocols, equipped with multiple communication interfaces such as Ethernet, RS-485 and RS-232, supporting mainstream industrial communication protocols such as Modbus RTU and TCP/IP, it can be seamlessly connected to various ABB PLC/DCS systems and industrial control equipment, realizing real-time feedback of output status, remote parameter configuration and remote fault diagnosis, with strong communication stability and excellent anti-electromagnetic interference ability, ensuring coordinated and efficient operation of the system.
The product complies with international certification standards such as IEC 61131-3, CE and EMC, adopts industrial-grade components that have undergone strict screening and aging tests, and its product quality and safety performance meet the specifications of the global industrial automation control field, and it can operate stably in harsh industrial environments for a long time without performance degradation.
With a protection level of IP20, it has excellent dustproof performance, is made of aluminum alloy and has a strong structure, adopting an industrial-grade reinforced packaging design. It can be directly applied to dusty harsh environments such as industrial cabinets and control rooms, effectively protecting internal components, extending product service life, and adapting to the long-term storage and emergency use needs of spare parts.
The operating temperature covers -20℃ to 60℃, and the storage temperature range is -40℃ to 85℃, with extremely strong environmental adaptability. It can operate stably in extreme industrial environments such as alpine, high temperature and humidity, and the output performance and response speed are not affected by the environment, meeting the operation and spare part storage needs of various harsh industrial scenarios.
Integrated with complete fault diagnosis and LED status indication functions, each channel is equipped with an independent LED indicator light, which can real-time monitor the module operation status, channel output status and fault conditions, quickly identify the fault channel and fault type and send an alarm signal, facilitating staff to quickly troubleshoot faults, carry out tests and maintenance, greatly improving equipment operation and maintenance efficiency and reducing operation and maintenance costs.
Adopting standardized modular design, supporting standard DIN rail and ABB Advant OCS system dedicated slot mounting, it is easy to install, with a compact physical size and a weight of only about 0.7kg. It can be directly integrated into existing industrial automation systems and PLC/DCS equipment without complex configuration, plug and play, adapting to different installation scenario needs, and supporting multi-module collaborative work, which can flexibly expand the number of output channels, consistent with ABB’s modular design concept.
The product is not customizable, has strong versatility and compatibility, adapts to the fault replacement needs of various industrial automation scenarios, ABB Advant OCS series systems and various PLC/DCS systems, with convenient and fast replacement, effectively reducing downtime. At the same time, it has a power failure data protection function, which can save output parameters and operation status when the power is interrupted, avoiding control disorders caused by accidental power failure, providing reliable digital output guarantee for the stable operation of industrial automation and process control.
