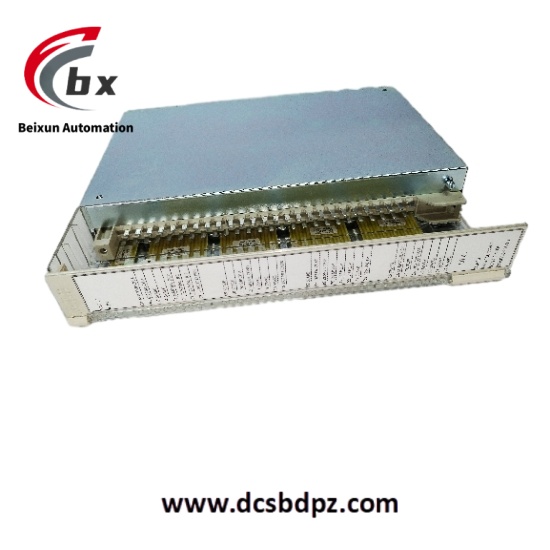

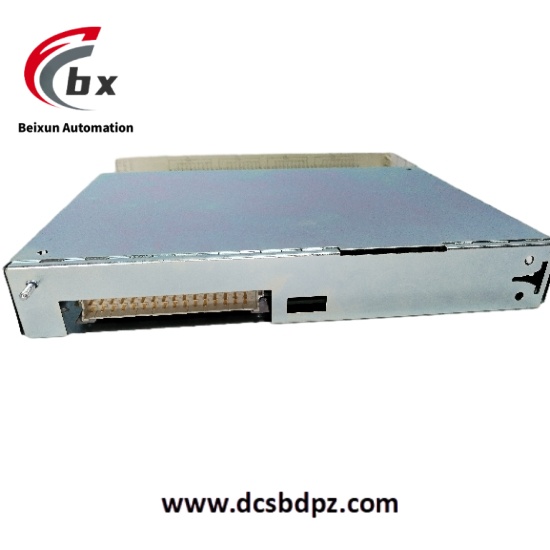

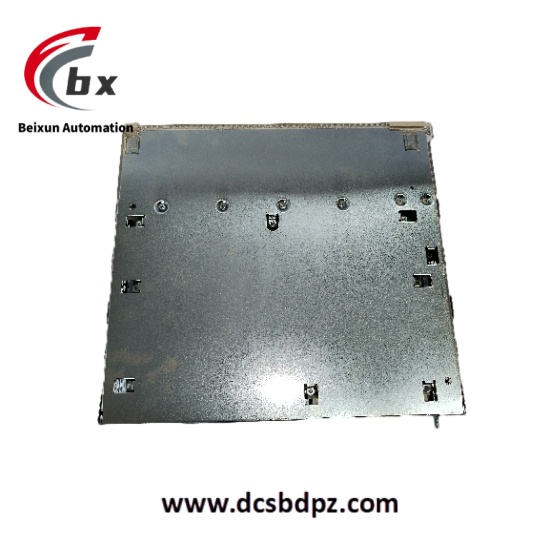

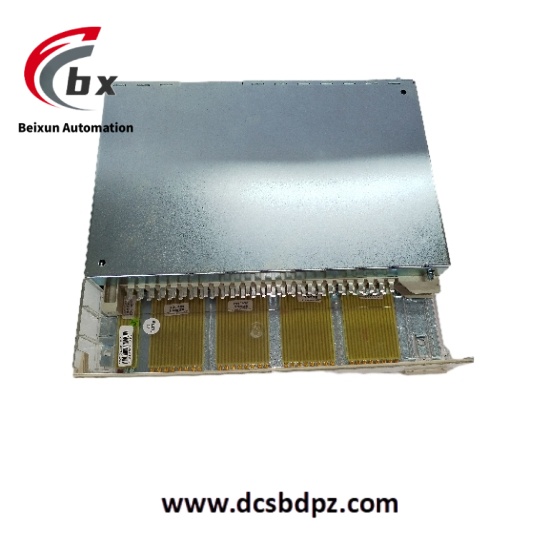

ABB DI650 3BHT300025R1 High performance digital input module

Specific Parameters

Number of Input Channels: 32 channels.
Input Voltage: 24 V DC.
Input Current: The typical value is a few mA.
Signal Type: Complies with the IEC 61131 – 2 standard and can accept dry contact or NPN/PNP transistor output signals.
Isolation Method: Optical isolation technology is used between channels, and the isolation voltage reaches 500V AC, ensuring electrical isolation between channels and between channels and the system, effectively enhancing anti – interference ability.
Power Consumption: The overall power consumption is low. The specific value varies depending on the working state and is usually within a few watts.
Operating Temperature Range: -25°C to +70°C.
Storage Temperature Range: -40°C to +85°C.
Humidity Range: 5% to 95%, non – condensing.
Installation Method: Standard DIN rail installation is adopted, which is convenient for quick installation and disassembly and is suitable for various control cabinet layouts.
Dimensions: The length, width, and height dimensions are compact, facilitating installation in limited spaces. The specific dimensions can be referred to the ABB product manual.
Weight: The module is lightweight, which is convenient for transportation and installation. The specific weight value can be found in the product manual.
Response Time: The input signal response is rapid. The typical response time is in the millisecond range, which can promptly capture the state changes of field devices.
Diagnostic Function: It has a complete self – diagnostic function, which can monitor the working status of the module in real – time. Once a fault occurs, it can alarm in a timely manner, facilitating maintenance personnel to quickly locate and solve problems.
Communication Interface: Supports a variety of industrial communication protocols, such as Profibus – DP and Modbus RTU, facilitating data interaction with other devices or control systems.

Product Performance

High – Density Input: The 32 – channel high – density input design can access a large number of field digital signals in a compact control system, effectively improving the signal acquisition ability of the system and optimizing space utilization and cost – effectiveness.
High – Reliability Acquisition: Each input channel is carefully optimized to collect switch signals of field devices with high reliability. The excellent anti – electromagnetic interference ability ensures the accuracy and stability of input signals, providing a solid guarantee for the reliable operation of the control system.
Fast Response: It has a fast signal response speed and can process input signals in a timely manner. The millisecond – level response time ensures the real – time performance and accuracy of the system, meeting the requirements of rapid control in industrial automation.
Easy Integration: It can be seamlessly integrated with other ABB control systems and devices, and conduct efficient data exchange with other devices or controllers through standard communication interfaces, facilitating the construction of complex automation control systems.
Flexible Configuration: It can be flexibly configured through software or hardware to adapt to the diverse needs of different application scenarios, providing users with personalized digital input solutions.
Powerful Diagnostic Function: The complete self – diagnostic function can monitor the working status of the module in real – time, quickly detect and report faults, greatly reducing maintenance costs and system downtime.
