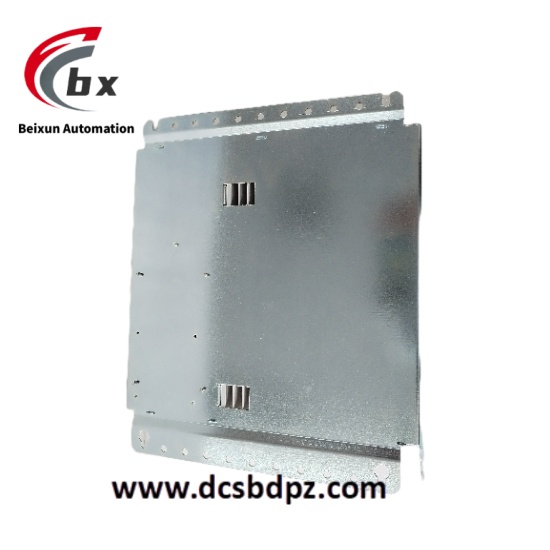

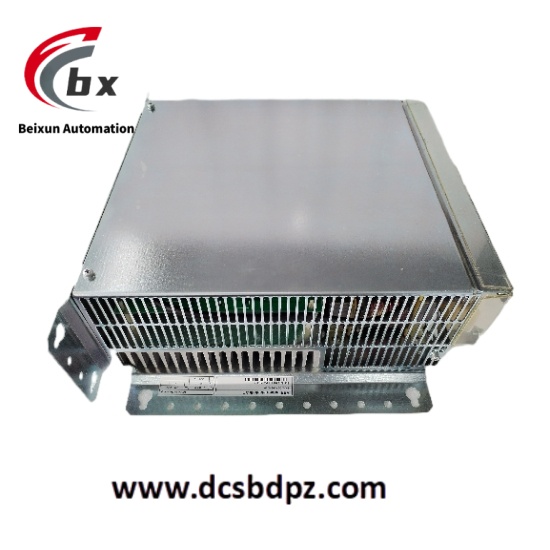

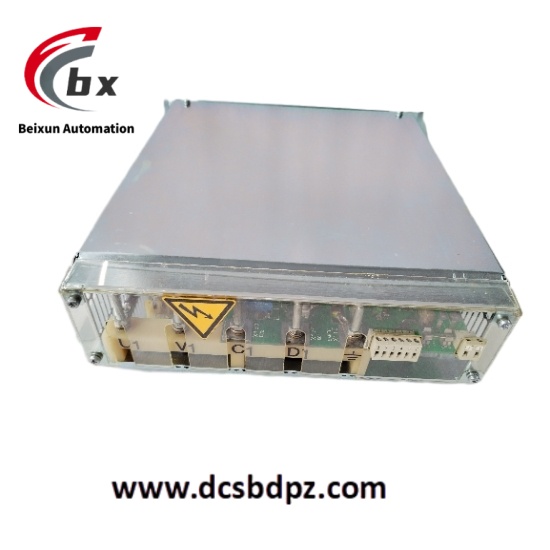

ABB DCF503-0050 Magnetic excitation controller module
The ABB DCF503 - 0050 is an external field exciter specifically designed for the precise control of DC motors in industrial environments and belongs to the DCS 500 series of products. Its core function is to accurately regulate the excitation current of rotating motors. By controlling the magnetic field strength of the motor, it ensures the stable operation of the motor and achieves the expected performance. This product uses advanced thyristor technology and has significant characteristics such as high precision, fast response, and high reliability. In terms of design, it adopts a compact structure, which is convenient for installation and maintenance; the interface adopts a modular design with strong compatibility. The protection level reaches IP20, which can be applied not only to indoor environments but also, under certain conditions, to outdoor environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB DCF503-0050 Magnetic excitation controller module
Specific Parameters
- Input Voltage: 500V AC or 420V DC.
- Current Rating: 56A/50A.
- Frequency: 50/60Hz.
- Power Rating: Up to 25kW.
- Protection Function: Built – in over – current and voltage surge protection.
- Dimensions: Compact design, conducive to installation and maintenance.
- Interface Type: Modular interface with good compatibility.
- Protection Level: IP20.
- Weight: 9kg (19.84 lbs).
- Resolution of A/D Converter: 12 bits.
- Digital Inputs/Outputs: 8 digital inputs/outputs are grouped together. The whole group is electrically isolated from the rest of the device. They can be used individually as inputs, outputs, or re – readable outputs. When used as digital inputs, the input signal delay can be configured to 7ms (default) or 1ms.
- Communication Protocols: Supports common communication protocols in industrial automation such as Profibus, DeviceNet, and Modbus.
- Network Connection: Can be physically connected to the selected network through RS – 485 or Ethernet ports.
Product Performance
- High Reliability: Advanced thyristor technology ensures stable operation in various complex industrial environments.
- Precise Control: Can accurately regulate the motor magnetic field, suitable for power plants and industrial applications with high requirements for motor control accuracy.
- Fast Response: Can quickly react to various changes during the operation of the motor and timely adjust the excitation current to ensure the stable operation of the motor.
- Flexible Design: Modular interface and compact design make it easy to integrate into existing PLC systems and other automation control systems.
- Convenient Communication: Supports a variety of communication protocols, facilitating data interaction and collaborative work with other devices and systems.
