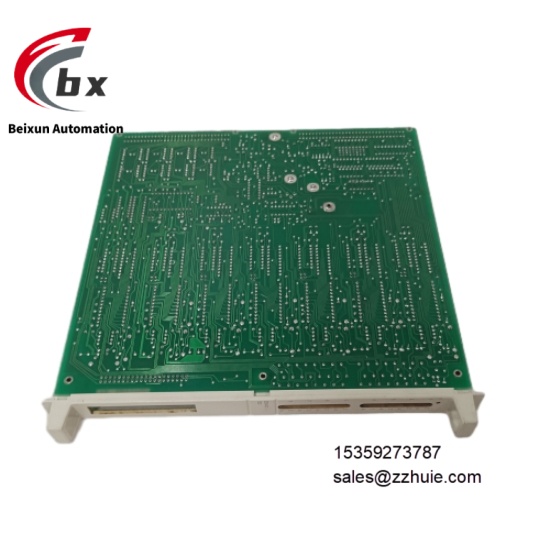

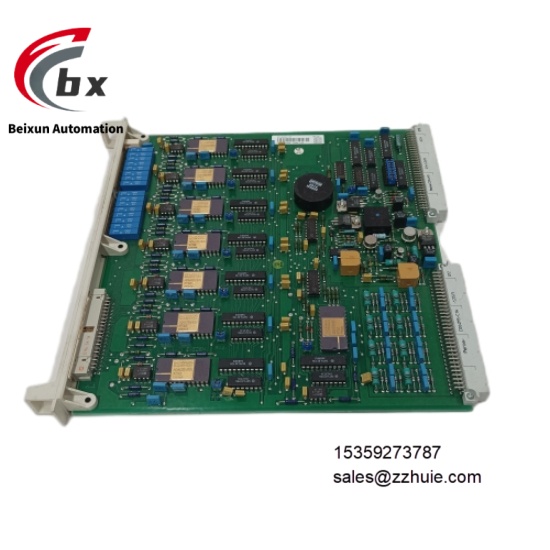

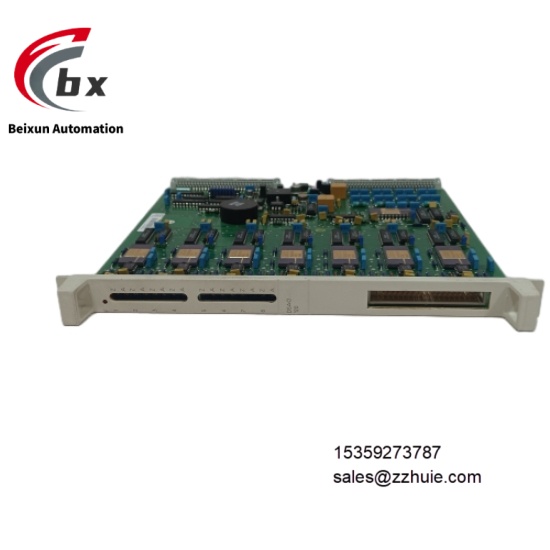

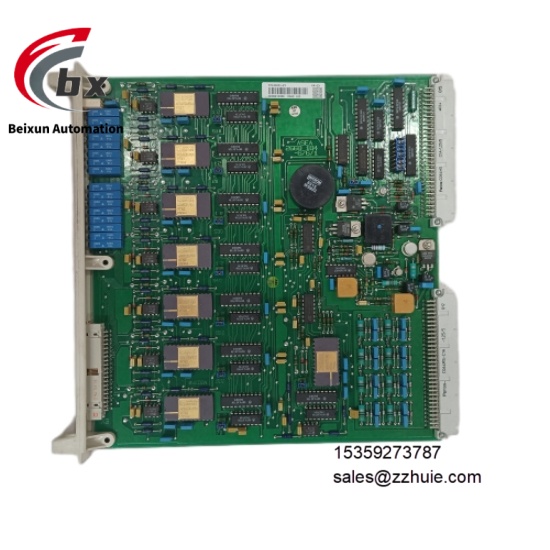

ABB DASO120 57120001-EY digital output module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%
Output Configuration: 16-channel independent transistor outputs (NPN type, open drain)
Load Capacity:
Rated Voltage: 24V DC (max 30V DC)
Rated Current: 1A per channel (continuous output), 3A peak (100ms)
Response Time: ≤100μs (turn-on), ≤50μs (turn-off)
Isolation Level: 2.5kV AC between channels and between channels and bus (1 minute)
Communication Interfaces: Profinet IO (100Mbps full-duplex), Modbus TCP (optional)
Protection Functions: Per-channel short-circuit protection (current limit 1.2A), overvoltage protection, reverse polarity protection
Power Consumption: ≤6W under normal operation
Environmental Parameters
Operating Temperature: -25°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 (industrial grade), EN 61000-6-4
Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 22.5mm (W) × 100mm (H) × 125mm (D)
Weight: Approximately 160g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant PA66 engineering plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

DASO120 adopts 16-channel independent NPN transistor output design, with switching speed 100 times faster than relay output, meeting the millisecond-level control requirements of high-speed equipment. The transistor life is ≥100 million cycles, with no risk of mechanical wear. Supporting online hot-swap function, the main control system remains in normal operation during module replacement, reducing maintenance downtime by more than 95%.

It communicates with the main controller via Profinet IO bus, with data update cycle ≤1ms, ensuring real-time response of control commands. Channel-level electrical isolation combined with multi-stage EMC filtering circuit provides common mode rejection ratio ≥95dB, effectively resisting high-frequency electromagnetic interference and ground loops in industrial sites.

Integrated with full-channel self-diagnosis functions, it can real-time detect output short circuit, overload and module power abnormalities, with fault status fed back to the main controller via dual-color LED indicators (green for normal, red for fault) and bus, diagnostic response time ≤1ms. Mean time between failures (MTBF) ≥300,000 hours, meeting industrial-grade continuous operation requirements.
