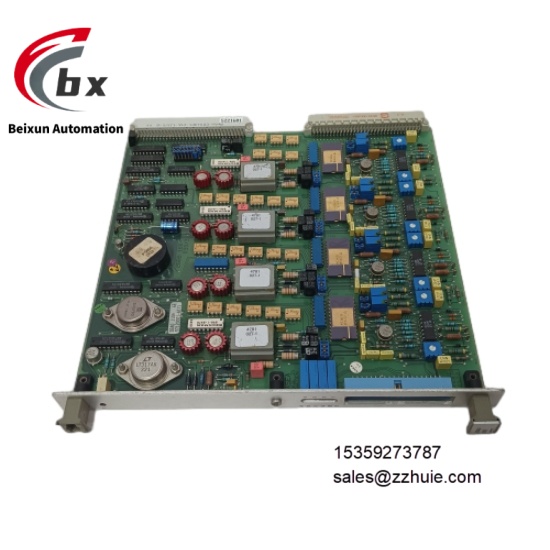

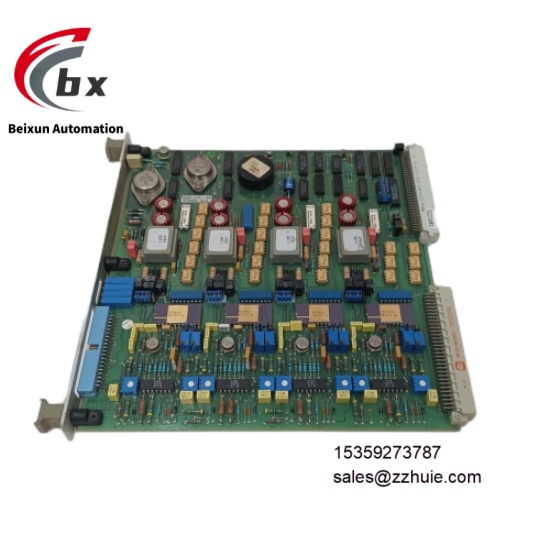

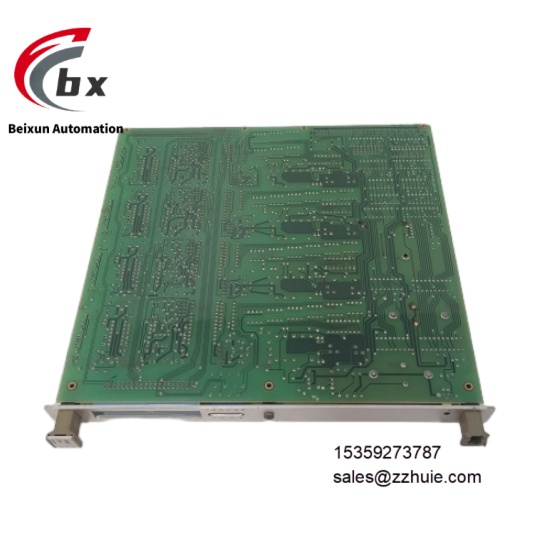

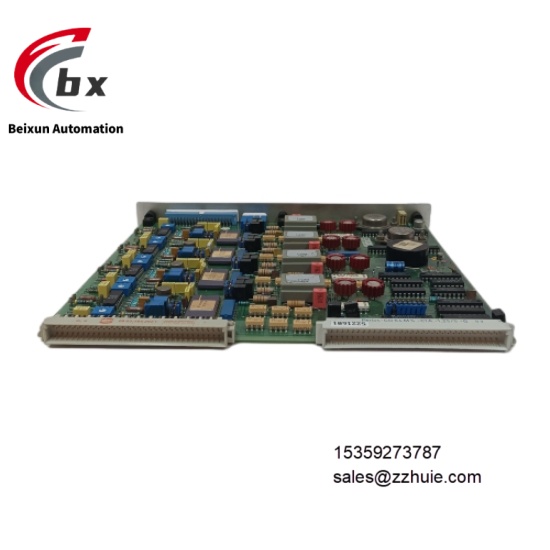

ABB DASO110 57120001-AT1 digital output module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%
Output Configuration: 16-channel independent relay outputs (Form-C contacts)
Load Capacity:
Rated Voltage: 24V DC / 110V AC / 230V AC
Rated Current: 2A (resistive load), 0.5A (inductive load)
Response Time: ≤10ms (make and break)
Isolation Level: 2.5kV AC between channels and between channels and bus (1 minute)
Communication Interface: Profinet / Modbus TCP (optional)
Protection Functions: Per-channel short-circuit protection, overcurrent protection, reverse polarity protection
Power Consumption: ≤8W under normal operation
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 (industrial grade), EN 61000-6-4
Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 22.5mm (W) × 100mm (H) × 125mm (D)
Weight: Approximately 180g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant PA66 engineering plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

DASO110 adopts 16-channel independent relay design, with contact mechanical life ≥1,000,000 cycles and electrical life ≥100,000 cycles (under rated load), meeting long-term high-frequency operation requirements. Supporting online hot-swap function, the main control system remains in normal operation during module replacement, reducing maintenance downtime by more than 90%.

It communicates with the main controller via Profinet/Modbus TCP bus, with data transmission delay ≤20ms, ensuring real-time response of control commands. Channel-level electrical isolation combined with EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites.

Integrated with channel-level self-diagnosis functions, it can real-time detect relay sticking, coil faults and power abnormalities, with fault status fed back to the main controller via dual-color LED indicators (green for normal, red for fault) and bus, diagnostic response time ≤5ms. Mean time between failures (MTBF) ≥200,000 hours, meeting industrial-grade continuous operation requirements.
