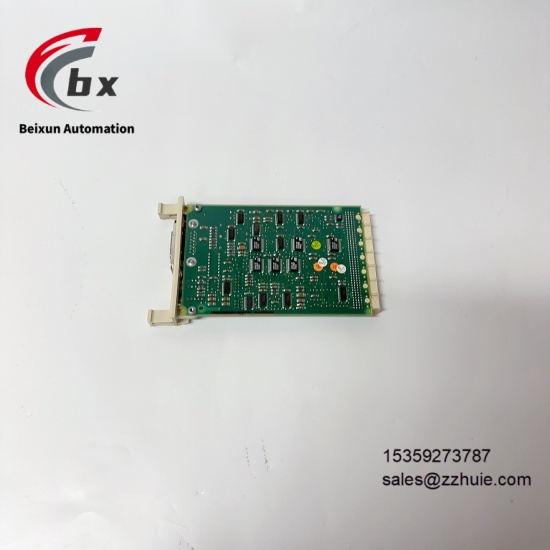

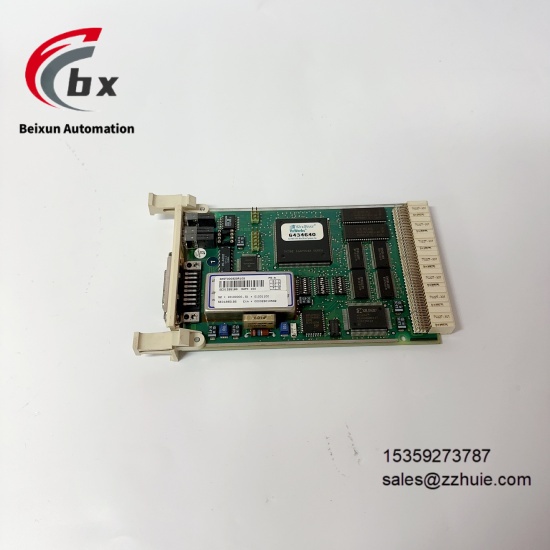

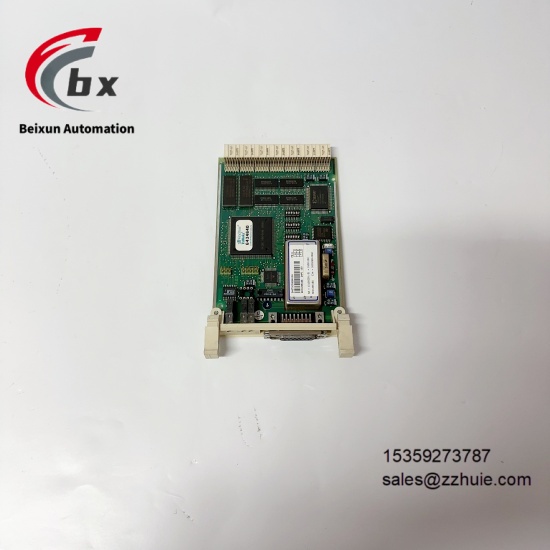

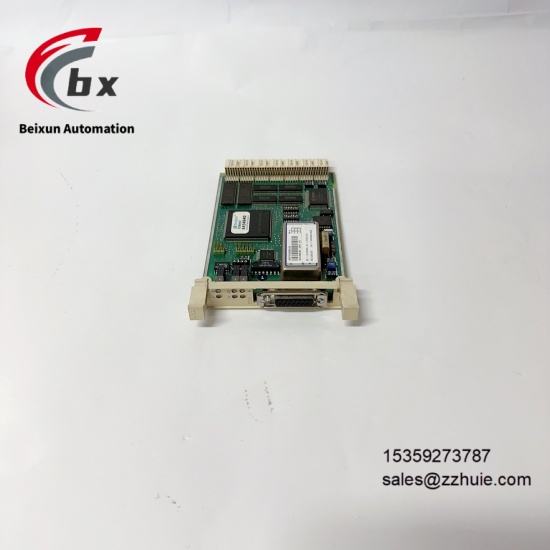

ABB DAPI100 3AST000929R109 Ethernet communication module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC, supporting stable input without fluctuationCommunication Protocols Compatible with Ethernet TCP/IP, Modbus, Profibus and other mainstream industrial protocolsCommunication Interfaces Equipped with Ethernet interface and serial communication interface, supporting multi-device interconnectionProtection Features Built-in overvoltage protection, short circuit protection and reverse polarity protectionCertification Standards Compliant with CE and relevant standards for industrial automation equipment
Mechanical Parameters
Overall Dimensions 234mm×27mm×112.5mm, compact and slim structureWeight Approximately 200g, facilitating installation and deploymentMounting Method 35mm DIN rail mounting, compatible with standard control cabinet layoutHousing Material High-quality industrial-grade material with good insulation and mechanical strengthConnection Methods Plug-in terminals and industrial dedicated connectorsProtection Rating IP20, suitable for indoor control cabinet installation scenariosStatus Indication Equipped with power, operation, communication and fault status indicator lights
Environmental Parameters
Operating Temperature -20℃ to 60℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity ≤95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with industrial standards, withstanding conventional installation and operation vibrationsShock Resistance Withstands mechanical shocks during transportation and installation, with stable performanceEMC Compliance Excellent anti-external electromagnetic interference capability, adapting to complex industrial electromagnetic environments
Product Performance
Strong communication compatibility: Multi-protocol integration design, seamlessly connecting to various industrial control systems and on-site equipmentStable data transmission: Ethernet communication architecture ensures high-speed and reliable data interaction without packet loss riskFlexible integration: Modular design supports quick installation and system expansion, reducing integration costsComprehensive diagnostic functions: Real-time status monitoring and fault prompts simplify maintenance processes and reduce downtimeOutstanding environmental adaptability: Wide temperature operation and strong anti-interference design tolerate harsh industrial working conditionsEfficient installation and deployment: Compact size and standard rail mounting save control cabinet spaceHigh operational reliability: Industrial-grade components and multiple protection designs ensure long-term continuous operation without faultsWide adaptability: Seamlessly integrates with ABB AC400 and other control systems as well as various PLCs, sensors and actuators
