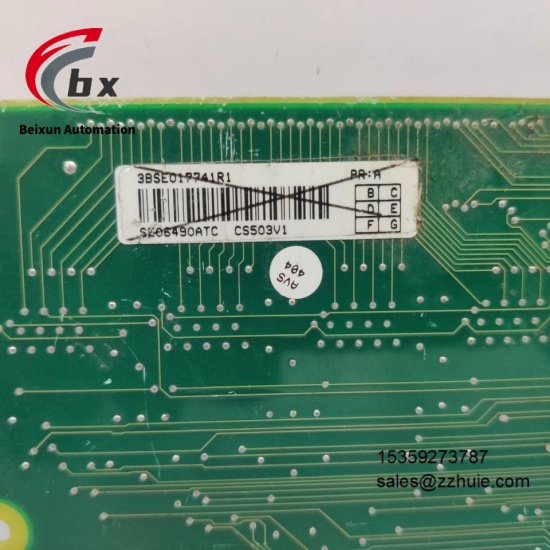

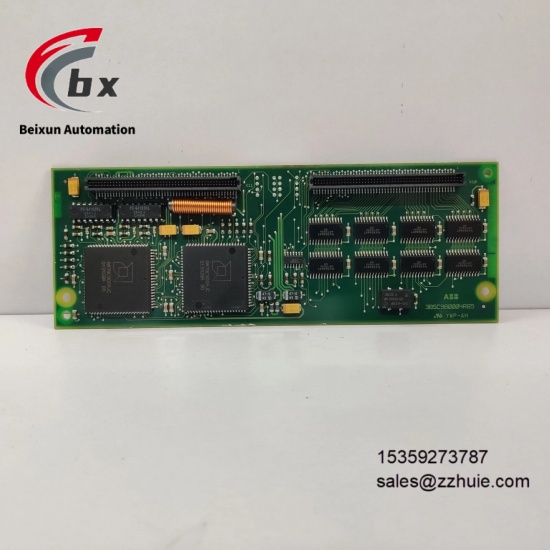

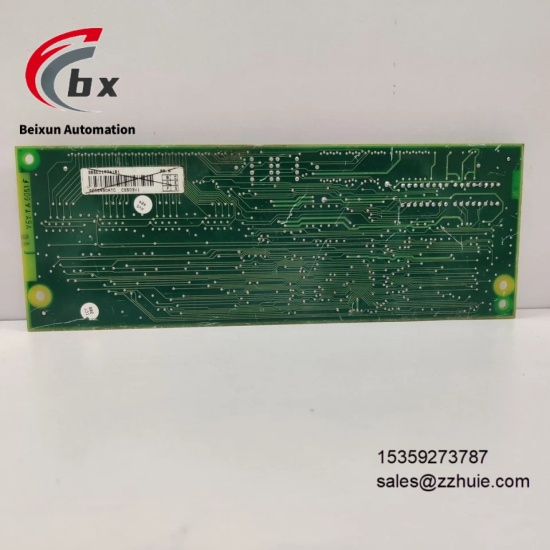

ABB CS503V1 3BSE017741R1 current sensor

ABB CS503V1 3BSE017741R1 current sensor

Specific Parameters

Brand ABB (ABB Group)

Product Series ABB CS Series Current Sensors

Product Type Current Sensor, Industrial Detection Module, ABB Original Spare Part

Model and Order No. ABB CS503V1 (Order No.: 3BSE017741R1)

Country of Origin Switzerland (Produced by ABB original factory)

Compatible Devices ABB Automation Control Systems, Power Monitoring Equipment, Industrial Power Distribution Devices, Frequency Inverters

Measurement Principle Electromagnetic Induction Principle

Measurement Type AC Current Measurement

Measurement Range 0-500A AC

Output Signal 4-20mA Standard Analog Signal

Accuracy Class Class 0.5

Operating Temperature Range -25℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Power Supply Voltage DC 24V±10%

Response Time ≤10ms

Physical Dimensions 120mm×80mm×60mm

Physical Weight 0.3kg

Mounting Method 35mm Standard DIN Rail Mounting

Product Material Industrial-Grade Flame-Retardant Plastic Housing, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with CE, IEC, EN Relevant Certification Standards

Warranty Period 12 Months

Product Performance

ABB CS503V1 (Order No.: 3BSE017741R1) is an original ABB device with strong adaptability, which can be seamlessly integrated into various ABB automation and power monitoring systems, with convenient installation and maintenance. The product has high measurement accuracy and fast response speed, can accurately capture changes in current signals and output stable standard signals, has outstanding anti-electromagnetic interference and anti-vibration capabilities, is made of high-quality components, has a solid structure, can operate continuously and stably in harsh industrial environments, has a complete overload protection function, and has strong long-term operation stability, ensuring accurate and reliable current monitoring data and providing strong support for the safe operation of the system.
