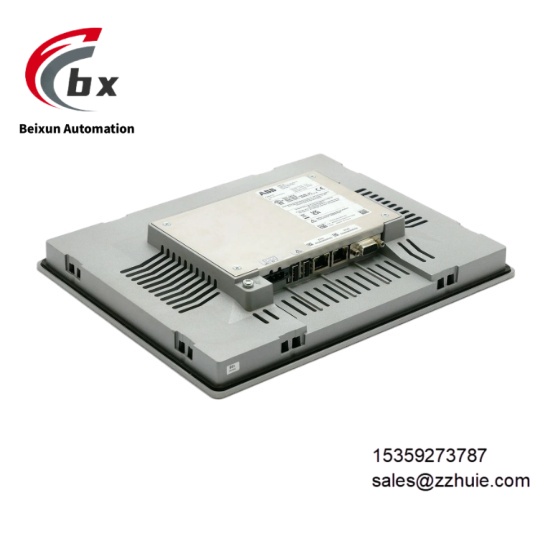

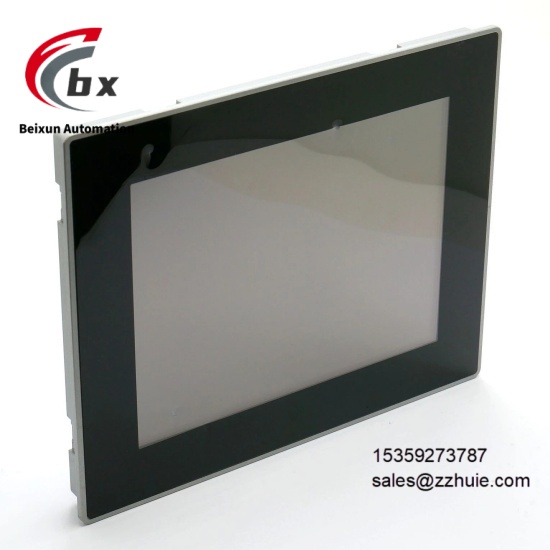

ABB CP6410 1SAP541010R0001 Human Machine Interaction (HMI) Control Panel
Specific Parameters
Brand ABB (ABB Group, Switzerland)
Product Series ABB CP600 Series
Product Type Human-Machine Interface (HMI) Control Panel, Industrial Operation Panel, Visualization Component, Original Spare Part
Model ABB CP6410 1SAP541010R0001
Country of Origin Italy, United States, Finland (Produced by ABB original factory)
Compatible DevicesABB AC500 Series PLC, Various Automation Control Systems, PB610 Panel Builder 600 Applications
Display Type TFT Resistive Touch Screen
Screen Size 10.4 Inches
Screen Color 65536 Colors (64K Colors)
Screen Resolution 800×600 Pixels
Built-in Browser Chromium Browser

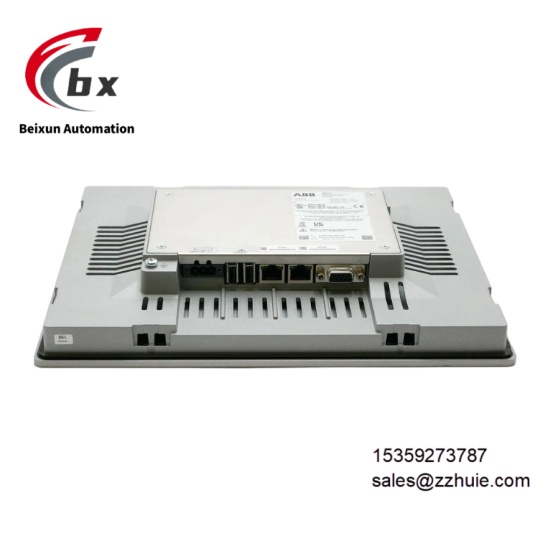

Hardware Interfaces 2 Industrial Ethernet, 2 USB Interfaces, 1 Other Interface
Memory Capacity 150000kB
Supply Voltage 18-32VDC
Operating Temperature Range -20℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class Front IP66
Physical Dimensions 287mm×232mm×42mm (Net Width × Net Height × Net Depth)
Physical Weight Approximately 1.82kg (Net Weight), Approximately 2kg (Gross Weight)
Mounting Method Embedded Installation, Mounting Depth 40mm
Protection Type Anti-Electromagnetic Interference, Dust-Proof, Water-Proof (Front)
Core Functions Equipment Operation, Parameter Setting, Status Monitoring, Visual Display, Web Access
Product Material Industrial-Grade Protective Shell, High-Hardness Touch Screen
Customizable No
Certification Standards CE, Relevant Industrial HMI Equipment Standards
Warranty Period 12 Months
Product Performance
ABB CP6410 1SAP541010R0001 is an original ABB panel with strong adaptability. It can be seamlessly integrated into ABB AC500 series PLC and various industrial automation systems, with convenient embedded installation and intuitive operation, and can stably realize equipment operation, parameter setting and status visualization monitoring.
The screen displays clearly, with full colors and high resolution, sensitive touch response and smooth operation. Built-in Chromium browser, it can conveniently access AC500 V3 web visualization and other web-based information, compatible with PB610 applications, and engineering design is convenient.
Equipped with various industrial interfaces, supports industrial Ethernet and USB data transmission, can realize fast interconnection with various automation equipment, compatible with ABB Ability™ Automation Builder, with excellent coordination.
Front IP66 protection class, excellent dust-proof and water-proof performance, strong wide temperature adaptability, can operate stably in harsh industrial working conditions such as high temperature and high dust for a long time, built-in user access management and network security protection functions, safe and reliable operation, and convenient operation and maintenance.
