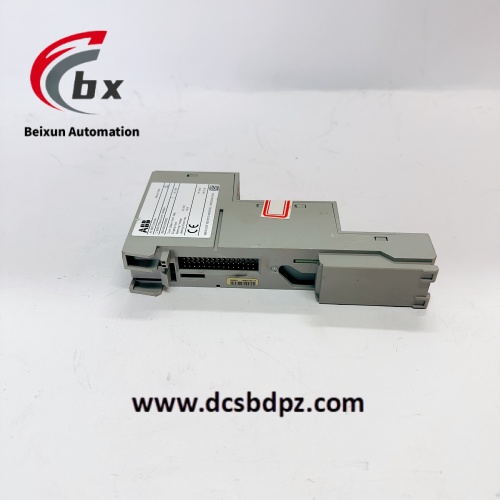

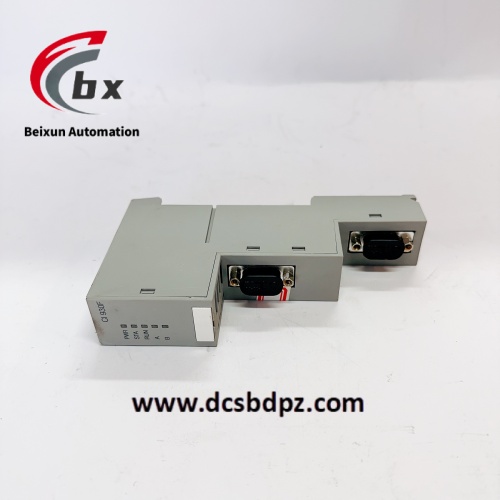

ABB CI930F 3BSE084300R1 Bus system master station module

ABB CI930F 3BSE084300R1 Bus system master station module

Specific Parameters

• Communication Protocol: PROFIBUS DP
• Data Transfer Rate: Up to 12Mbps
• Station Address Range: 0 – 126
• Number of Connectable Slave Stations: Up to 32
• Interface Type: RS – 485 electrical interface, with 2 physical interfaces, supporting redundant configuration
• Operating Voltage: 24VDC (allowable range 20.4 – 28.8VDC)
• Power Consumption: Typical value 3W
• Operating Temperature: 0℃ – 60℃
• Storage Temperature: -40℃ – 85℃
• Relative Humidity: 5% – 95%, non – condensing
• Protection Class: IP20
• Dimensions (Width×Height×Depth): 108mm×160mm×71mm
• Weight: Approximately 0.25kg

Product Performance

1. High – speed Communication: It supports a data transfer rate of up to 12Mbps, which can quickly process a large amount of data, meeting the harsh real – time requirements of industrial automation scenarios. It greatly reduces data transmission delays and ensures rapid system response.
2. High Reliability: It has a redundant interface design. When one interface fails, the other interface can seamlessly switch to continue working, ensuring the uninterrupted communication link. At the same time, the module is manufactured with high – quality electronic components, which can adapt to harsh industrial environments and reduce the probability of failures, ensuring the long – term stable operation of the system.
3. Powerful Connectivity: It can connect up to 32 PROFIBUS DP slave devices, facilitating the construction of large – scale automation networks and flexibly adapting to the networking requirements of industrial projects of different scales.
4. Simple Configuration and Maintenance: Parameters can be easily configured and diagnosed through ABB’s engineering tools without the need for complex programming knowledge, reducing the difficulty of project implementation and maintenance costs and improving work efficiency.

Application Fields

1. Manufacturing Industry: In production lines such as automotive manufacturing and electronic device manufacturing, it is used to connect robots, PLCs, sensors, actuators and other devices to achieve precise control and efficient coordination of the automated production process, improving production efficiency and product quality.
2. Process Industry: In industries such as petrochemical, power, metallurgy, food and beverage, etc., it connects field instruments (such as flow meters, pressure transmitters, control valves) and control systems to achieve real – time monitoring and precise control of the production process, ensuring the stable, safe and efficient operation of the production process.
3. Building Automation: It connects intelligent lighting systems, air – conditioning systems, elevator control systems, access control systems and other devices to achieve centralized monitoring and intelligent management of various electromechanical devices in buildings, improving the operational efficiency and comfort of buildings.
4. Transportation: In the fields of rail transit and airports, it connects signal control systems, power monitoring systems, automatic ticket selling systems and other devices to ensure the reliable operation and efficient management of transportation facilities.
