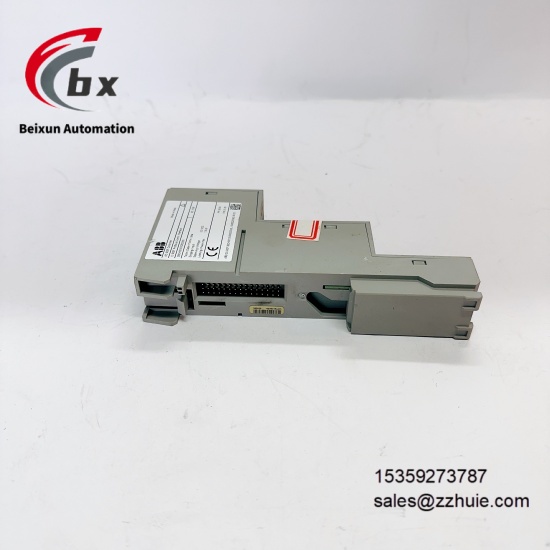

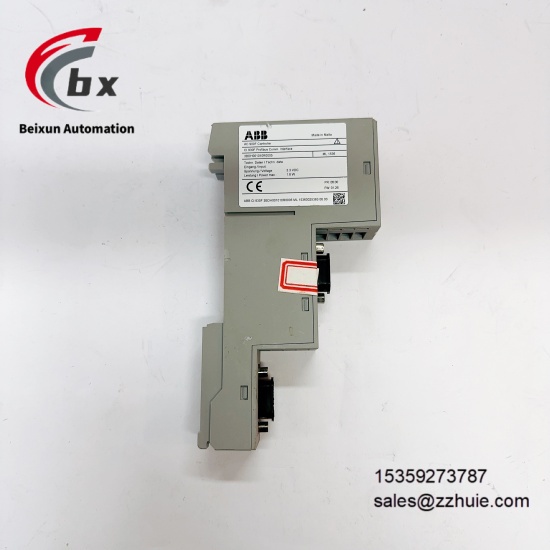

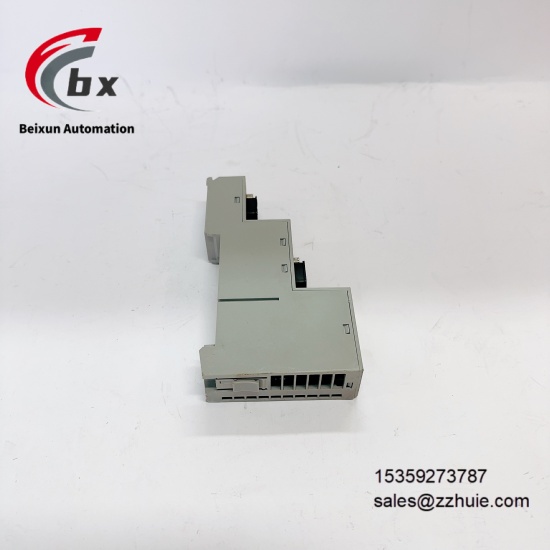

ABB CI930F 3BDH001010R0005 Main station communication interface module

ABB CI930F 3BDH001010R0005 Main station communication interface module

Specific Parameters​

Core and Function Parameters​

Product Type PROFIBUS DP Master Communication Interface Module​

Manufacturer ABB​

Model CI930F, Part Number 3BDH001010R0005​

Series AC 900F Series​

Communication Protocol PROFIBUS DP V0/V1 (Master Mode)​

Transmission Standard EIA RS-485 (complies with EN 50170 standard)​

Compatible Controller ABB AC 900F Series Controller (requires software version 2013 or higher)​

Supported Slave Quantity Up to 126 PROFIBUS DP Slaves​

Redundant Functions Supports PROFIBUS Line Redundancy (Line A/Line B), Controller Redundancy​

Communication Interfaces 2 x D-Sub 9-pin Female Connectors (corresponding to Line A/Line B respectively)​

Data Storage 64kB Dual-port Memory (for data exchange)​

Special Functions Supports Hot-swapping, Hot Configuration in Run​

Protection Functions Potential Isolation Protection, Over-current Protection​

Diagnostic Functions Line Status Diagnosis, Communication Fault Diagnosis, Power Status Diagnosis​

Installation Method AC 900F Controller Rack Slot Installation​

Certification Standards CE, cULus Class 1 Div 2, RoHS, WEEE, ISA 71.04 G3​

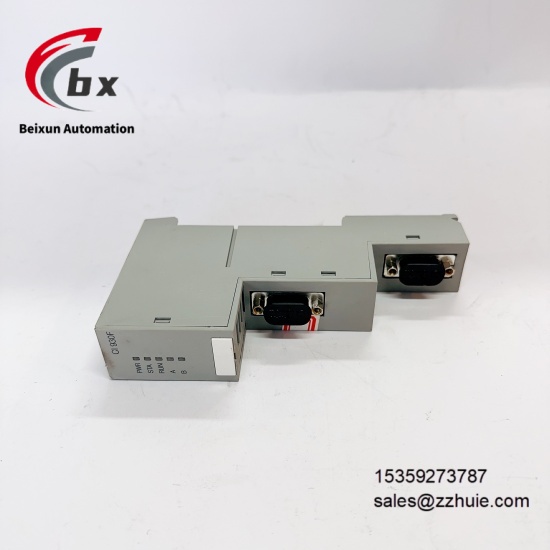

Status Indication Power Normal (PWR), Status Indication (STA), Operation Status (RUN), Line A/B Communication Status (independent LEDs)​

Electrical and Performance Parameters​

Power Supply Voltage 24V DC (taken from CPU module’s 24V terminal)​

Operating Current 80mA (under 24V DC working condition)​

Power Consumption 1.8W​

Transmission Rate 9.6kBit/s to 12MBit/s (configurable)​

Isolation Level Potential Isolation (complies with EN 50170 standard)​

Common Mode Rejection Ratio ≥80dB (50/60Hz)​

Data Exchange Delay ≤1ms (under full-speed working condition)​

Physical and Environmental Parameters​

Overall Dimensions 28mm×152mm×85mm (Width×Height×Depth)​

Weight Approximately 115g​

Operating Temperature Range -20°C to 70°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity Maximum 95% (non-condensing, no dew)​

Protection Rating IP20 (per IEC 60529)​

Housing Material Flame-retardant ABS Plastic (UL94 V-0 Grade)​

Corrosion Protection Class ISA 71.04 G3​

Vibration Resistance 10-500Hz, 1.5G (30min per X/Y/Z axis)​

Shock Resistance 25G (11ms, 3 times per X/Y/Z axis)​

Product Performance​

Supports 12MBit/s high-speed transmission rate and 64kB dual-port memory to ensure high-concurrency data exchange with extremely strong real-time performance​

Dual-line redundancy (Line A/Line B) + controller redundancy design, enabling seamless switching in case of faults with extremely high communication reliability​

Potential isolation and industrial-grade anti-interference design, effectively resisting electromagnetic interference and adapting to complex industrial electromagnetic environments​

Supports hot-swapping and hot configuration in run functions, module replacement and system expansion without shutdown, ensuring high operation and maintenance efficiency​

Can manage 126 slave devices, adapting to large-scale distributed control networks with strong expansion capability​

Seamless compatibility with AC 900F controller, plug-in installation without complex wiring, excellent integration convenience​

Wide operating temperature range of -20°C to 70°C + G3 corrosion protection, adapting to harsh industrial environments such as high temperature, dust and corrosion​

Multi-status LED indicators + comprehensive fault diagnosis functions, enabling precise positioning of fault points and reducing maintenance costs​
