ABB CI687K01 3BSE043660R1 communication interface module

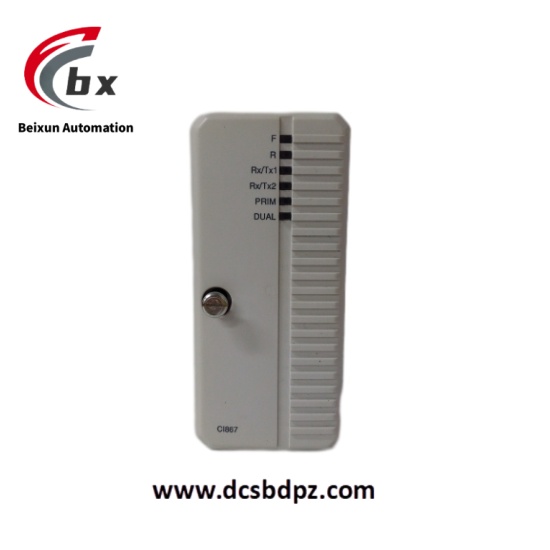

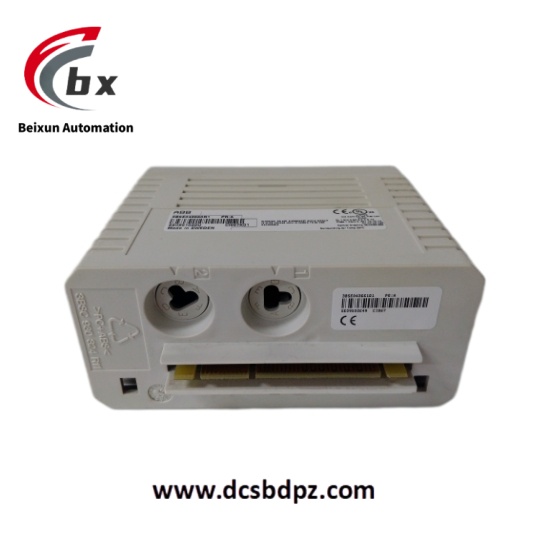

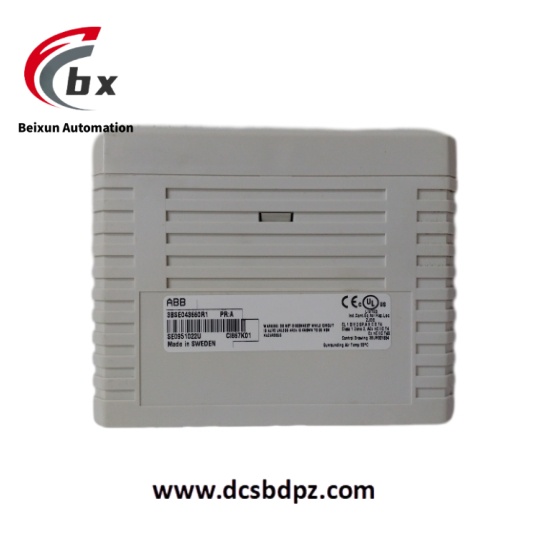

The ABB CI687K01 3BSE043660R1 belongs to a compact product kit hardware selector and is a MODBUS TCP communication interface module for the industrial automation field. This module is mainly used to connect AC 800M controllers and external Ethernet devices. Based on the open industrial standard protocol of MODBUS TCP, it realizes data transmission and control command interaction between devices. Its kit includes the CI867 communication interface and the TP867 baseplate. The CI867 expansion unit is equipped with CEX - Bus logic, a communication unit, and a DC/DC converter, which obtain and provide suitable voltages from the +24V power supply through the CEX - Bus.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB CI687K01 3BSE043660R1 communication interface module
Specific Parameters
- Dimensions: 186 mm in height, 59 mm in width, and 127.5 mm in depth
- Weight: 0.7 kg
- Power Parameters: The operating voltage is 24V DC
- Communication Interfaces: Equipped with RJ45 interfaces to support Ethernet connection
- Communication Protocols: Supports the MODBUS TCP protocol and is also compatible with other common industrial communication protocols
- Number of Channels: Dual – channel
- Transmission Speeds: Channel 1 supports a 100Mbps full – duplex speed, and Channel 2 supports a 10Mbps half – duplex speed
- Operating Temperature Range: From – 20°C to + 55°C
- Storage Temperature Range: From – 40°C to + 85°C
- Protection Level: IP20, in line with EN60529 and IEC 529 standards
- Certifications: Has a CE mark and meets the relevant requirements of UL 60079 – 15, cULus Class 1 Division 2, AEx nA IIC T4, ExnA IIC T4Gc X for hazardous locations.
Product Performance
- High Reliability: ABB products have always been known for their high reliability and stability, and the CI687K01 3BSE043660R1 is no exception. It can work stably in harsh industrial environments such as vibration and electromagnetic interference, ensuring the accuracy of data transmission and the stability of system operation.
- Flexible Configuration: Supports master and slave functions. Each CI867 can use up to 70 slave devices and 8 master devices (when both Channel 1 and Channel 2 are used), and can be flexibly configured according to specific application requirements to meet the diverse communication needs of complex industrial network architectures.
- Easy Integration: It has standard industrial interfaces and protocols, making it easy to integrate with other industrial automation devices and systems. It can be seamlessly integrated into the existing industrial automation architecture, reducing system construction and upgrade costs.
- Efficient Communication: The dual – channel design with different transmission speeds can meet the communication rate requirements of different devices, achieving efficient data transmission and meeting the strict real – time requirements of industrial automation.
