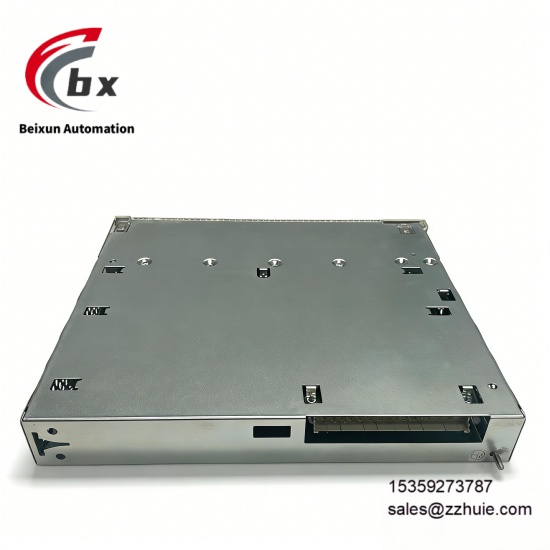

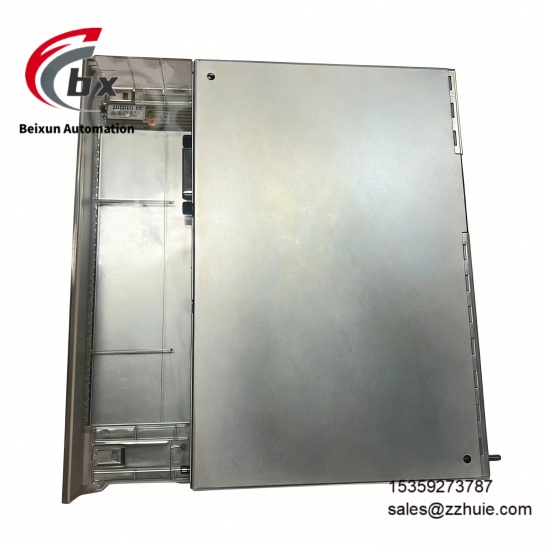

ABB CI615 3BHT300024R1 I/O bus coupler

ABB CI615 3BHT300024R1 I/O bus coupler

Specific Parameters

Dimensions 252mm×273mm×40mm

Net Weight 1.2kg

Operating Temperature Range -20℃ to +60℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (IP65 optional)

Mounting Method DIN rail installation, supporting snap-on quick assembly

Supply Voltage 24VDC, dual redundant wide-range power supply

Bus Interface 500Vrms electrical isolation, dual redundant design

Communication Protocols Support PROFIBUS DP, Modbus RTU/ASCII, CANopen

Communication Rate Up to 12Mbps

Insulation Strength 500VDC/>100MΩ; 2kVAC/1min (General); 1kVAC/1min (Open Contacts)

Status Indication LED indicators display link, temperature and error status

WEEE Category Category 5 (Small equipment, no external dimension more than 50cm)

Number of Batteries 0

HS Code 85389091

Product Performance

Adaptability Performance: Seamlessly compatible with ABB Advant OCS and Master SW control systems, can be directly connected to Advant Controller 160 and S600 I/O systems, supports multi-protocol compatibility, can be quickly integrated into the existing automation architecture, meets the core requirements of system expansion and device interconnection, and does not require major redesign of the original system.

Communication Performance: The dual-redundant bus interface and 500Vrms electrical isolation ensure signal stability, effectively preventing interference caused by ground potential difference, with a maximum high-speed communication rate of 12Mbps, supporting multi-protocol seamless conversion, and achieving low-latency, highly reliable data interaction between control units and field devices.

Control Performance: Accurately realizes I/O bus signal amplification and routing, supports efficient access and data mapping of distributed I/O modules, ensures real-time transmission of control commands, adapts to large-scale, high-real-time industrial control scenarios, and can realize high-speed collection and output of digital signals.

Safety Performance: Features high-level electrical isolation and anti-electromagnetic interference capability, complying with IEC 61131-2 anti-electromagnetic interference requirements. The dual-redundant power supply switches automatically and can connect seamlessly when the main power supply fails. All interfaces are equipped with reverse polarity and short-circuit protection, and the all-metal housing is durable, enabling long-term stable operation in harsh industrial environments.

Operation and Maintenance Performance: Modular structural design with flexible installation, supporting DIN rail installation and snap-on quick assembly, which can complete installation or replacement quickly; built-in self-diagnostic function and LED status indicators can quickly indicate signal loss, communication errors or temperature abnormalities, facilitating quick problem troubleshooting and reducing maintenance costs.
