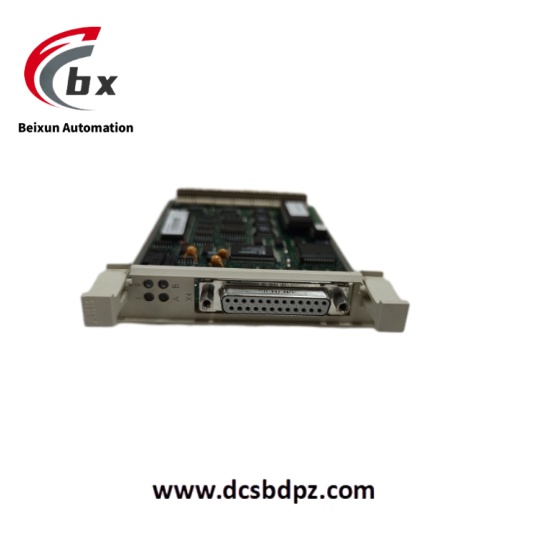

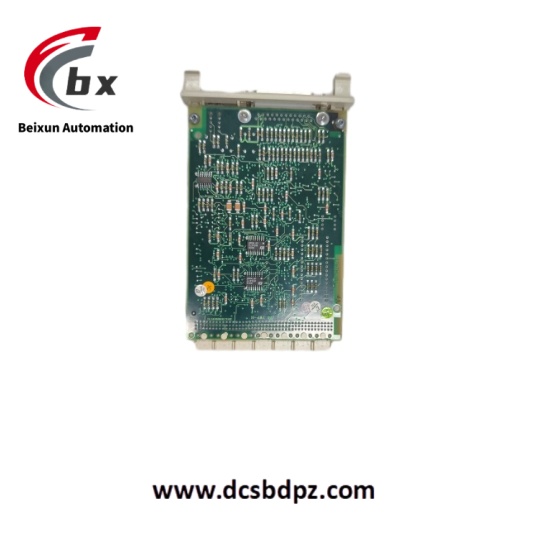

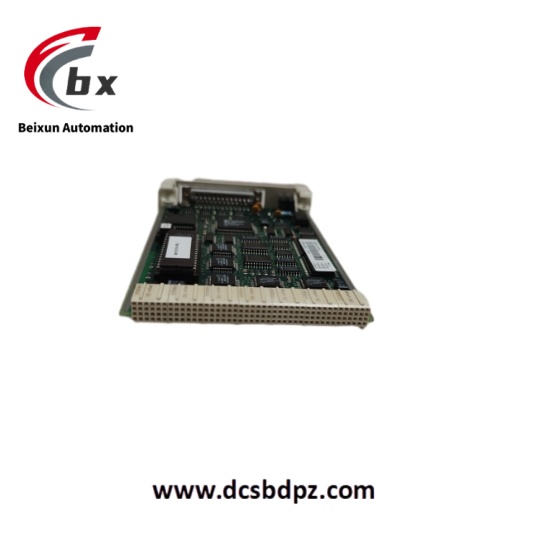

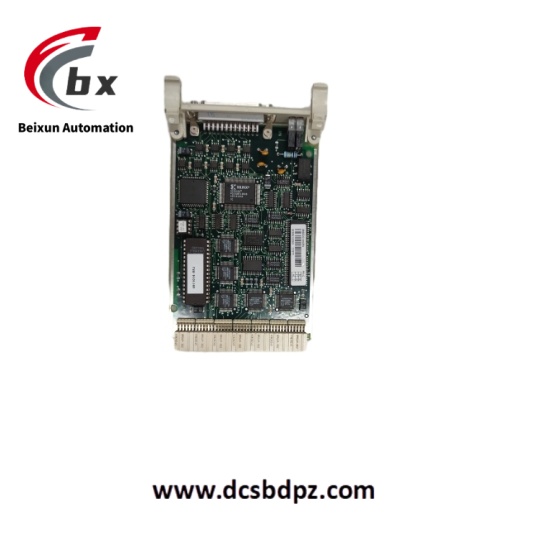

ABB CI570 3BSE001440R1 MasterFieldbus control module
The ABB CI570 3BSE001440R1 is a MasterFieldbus control module, belonging to the Advant Master series and is a key component of the Fieldbus Control System (FCS). It is mainly used to connect the ABB Advant Master system to field devices, building a reliable and accurate communication bridge between the control system and field devices to achieve data transmission and control. This module supports the PROFIBUS DP fieldbus protocol and can be connected to a variety of field devices such as sensors, actuators, and frequency converters. It can send control commands to field devices and monitor their status.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB CI570 3BSE001440R1 MasterFieldbus control module
Specific Parameters
- Power Supply Voltage Range: 18 – 32V DC
- Input Current: 100mA
- Communication Interface: RS – 485
- Operating Temperature Range: From – 40°C to + 70°C
- Communication Protocols: Supports PROFIBUS DP and is also compatible with Modbus RTU and ASCII
- Maximum Number of Nodes: 31
- Communication Rates: 960 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps (flexible selection in different application scenarios)
- Dimensions (Length x Width x Height): 234mm x 27mm x 112.5mm
- Weight: 0.4kg
- Protection Level: IP20 (in line with EN60529, IEC 529 standards)
- Maximum Number of Units on CEX Bus: 12
- Connector Type: DB female (9 – pin)
- Typical Power Consumption at 24V: 190 mA.
Product Performance
- High Reliability: It is characterized by high performance and reliability, suitable for control and supervision scenarios with strict real – time requirements, and can operate stably in complex industrial environments.
- Flexible Configuration: Supports a variety of communication rates and has flexible configuration and programming functions. Users can make personalized settings according to actual industrial automation needs.
- Easy Integration: This module can be easily integrated into various industrial automation systems, and can be seamlessly docked with existing hardware and software to improve the overall performance and reliability of the system.
- Powerful Processing Capacity: Equipped with a high – performance processor and large – capacity memory, it can efficiently process a large amount of data, ensuring the rapid and accurate execution of communication and control commands.
