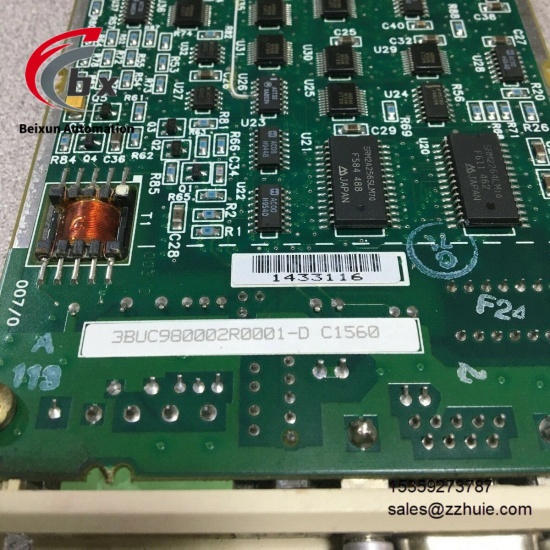

ABB CI560 3BUC980002R1 Fieldbus interface module
Specific Parameters
Dimensions 95mm×90mm×76mm
Net Weight 0.1kg
Operating Temperature Range -20℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail installation, terminal wiring, supporting online maintenance
Supply Voltage 24VDC
Input Power Supply Rating 3W
User Power for Sensors 200mA
Communication Interface Dedicated TRIO field bus interface
Supported Protocols Industrial protocols such as Profinet and DeviceNet
Input/Output Channels 16 channels
Analog Input Ranges Type K, J, E, S, T, B, N, ±50mV, ±100mV; 12-bit resolution
Analog Output Ranges 0 to 10VDC (max 10.24V), 0 to 20mA (max 20.5mA), 4 to 20mA; 12-bit resolution
HS Code 85389091
Product Performance
Adaptability Performance: Seamlessly compatible with ABB Advant OCS, Advant MOD 300 and other automation systems, compatible with various industrial bus architectures, can be quickly integrated into the existing network, with high integration efficiency, and adapts to the interface expansion and data interaction needs of various industrial control scenarios.
Communication Performance: Dedicated TRIO field bus interface design, supports multiple mainstream industrial protocols such as Profinet and DeviceNet, has stable high-speed data transmission capability, ensuring fast and reliable data exchange between on-site equipment and control systems, with stable and low-delay transmission and excellent anti-interference capability.
Control Performance: Equipped with 16 input and output channels, can accurately realize signal acquisition, data mapping and command transmission, ensure efficient transmission of control commands, support the coordinated operation of on-site equipment and control systems, and adapt to the orderly execution of industrial real-time control tasks.
Safety Performance: Adopts a robust industrial-grade housing, complies with relevant industrial safety standards and EMC specifications, can operate stably for a long time in a wide temperature environment of -20℃ to +70℃ and harsh industrial scenarios, and has good environmental adaptability and anti-interference capability.
Operation and Maintenance Performance: Compact modular design, convenient installation, clear terminal identification, supporting online diagnosis and fault troubleshooting, can real-time monitor the operation status, facilitating daily maintenance and system expansion, and maintenance can be completed without interrupting production.
