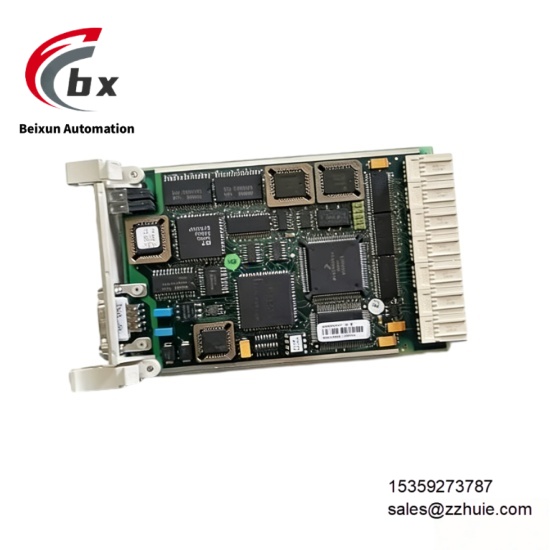

ABB CI537V01 3BUR000899R1 High performance Modbus Plus interface module

ABB CI537V01 3BUR000899R1 High performance Modbus Plus interface module

Specific Parameters

Dimensions 252mm×112.5mm×31.5mm

Net Weight 0.15kg

Operating Temperature Range 0℃ to +60℃

Storage Temperature Range -40℃ to +70℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Mounting Method DIN rail installation, terminal wiring, supporting online maintenance

Supply Voltage 24VDC (allowable fluctuation range -15% to +20%)

Communication Interface Dedicated Modbus Plus interface

Supported Protocols Modbus Plus protocol

Communication Rate Adjustable from 9.6kbit/s to 12Mbps

Electrical Isolation 1500V AC electrical isolation

Status Indication Equipped with LED indicators for monitoring operation, fault and communication status

HS Code 8537101190

Product Performance

Adaptability Performance: Seamlessly compatible with various industrial automation systems and Modbus Plus bus architectures, can be quickly integrated into the existing network, with high integration efficiency, and adapts to the interface expansion and data interaction needs of various industrial control scenarios.

Communication Performance: Dedicated Modbus Plus interface design, supporting multi-rate adjustment, with a communication rate ranging from 9.6kbit/s to 12Mbps, ensuring fast and reliable data exchange between on-site equipment and control systems, with stable and low-delay transmission and excellent anti-interference capability.

Control Performance: Can accurately realize data mapping and command transmission of Modbus Plus protocol, ensure efficient transmission of control commands, support the coordinated operation of on-site equipment and control systems, and adapt to the execution of industrial real-time control tasks.

Safety Performance: Equipped with 1500V AC electrical isolation function, adopts a robust industrial-grade housing, complies with relevant industrial safety standards and EMC specifications, and can operate stably for a long time in a wide temperature environment of 0℃ to +60℃ and harsh industrial scenarios.

Operation and Maintenance Performance: Compact modular design, convenient installation, clear terminal identification, equipped with LED status indicators, supporting online diagnosis and fault troubleshooting, can real-time monitor the operation status, facilitating daily maintenance and system expansion.
