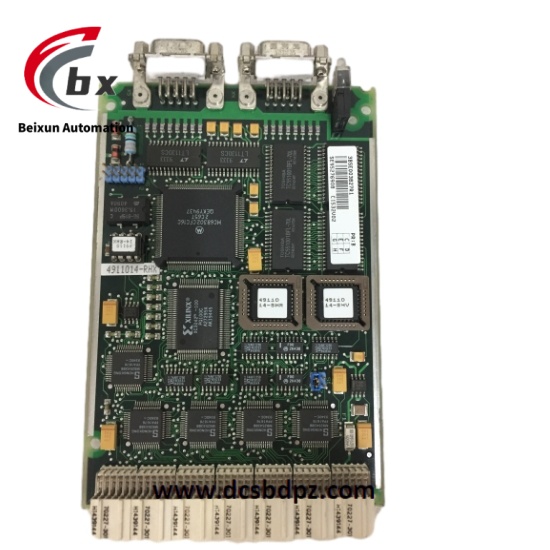

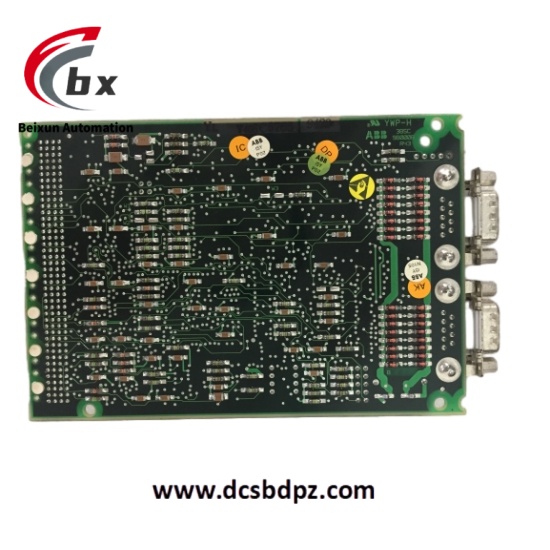

ABB CI534V02 MODBUS interface module
The ABB CI534V02 is a MODBUS interface sub - module mainly used in industrial automation systems to achieve high - speed communication between ABB automation systems (such as AC 800M controllers or S800 I/O systems) and external MODBUS devices (such as sensors, instruments, PLCs, etc.). Its core function is to exchange data according to the MODBUS protocol (RTU/TCP), support multi - device connection and real - time control, and can build a stable and efficient data transmission bridge between different devices.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB CI534V02 MODBUS interface module
Specific Parameters
- Dimensions: 238.5mm in length, 108mm in width, and 27mm in height
- Weight: 0.155kg
- Communication Protocols: Supports MODBUS RTU/TCP protocols
- Number of Channels: 2 channels
- Baud Rate: Supports high – speed transmission
- Interface Type: MODBUS bus interface
- Compatibility: Compatible with ABB AC 800M controllers and S800 I/O systems
- Expansion Ability: Up to 4 communication interfaces can be expanded through the CPU backplane
- Input Voltage: 24V DC
- Output Voltage: 24V DC
- Operating Temperature Range: From – 20°C to 60°C
- Protection Level: IP20
- Maximum Data Transmission Rate: Up to 9600 bps for MODBUS.
Product Performance
- High – speed Communication: It has high – speed data transmission capabilities, can meet the strict requirements of industrial automation for response speed, and supports real – time data exchange.
- Multi – protocol Compatibility: In addition to the MODBUS protocol, some configurations may support the expansion of other bus protocols (subject to official configuration), and can adapt to complex and diverse industrial communication environments.
- Flexible Configuration: Users can customize parameters through programming or configuration software and flexibly set them according to different application scenarios.
- High Reliability: It is designed with industrial – grade materials, can adapt to harsh environments such as temperature fluctuations and electromagnetic interference, and effectively ensure the stability and accuracy of data transmission.
- Easy Maintenance: The modular design is convenient for maintenance, supports hot – swap and quick troubleshooting, and can reduce maintenance costs and downtime
