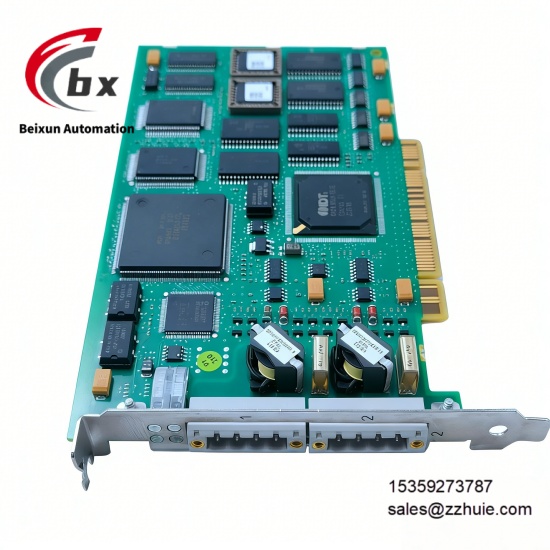

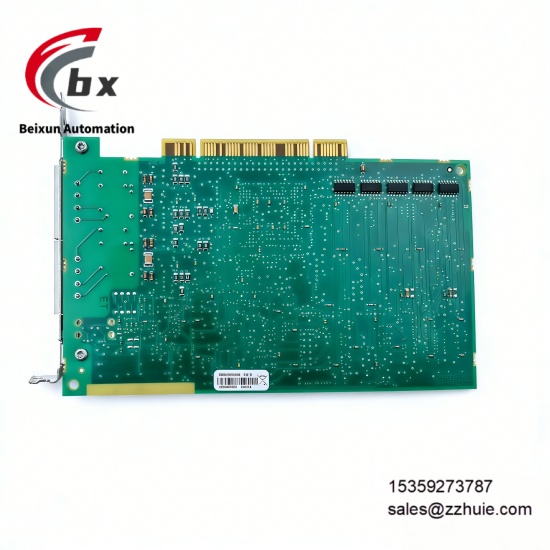

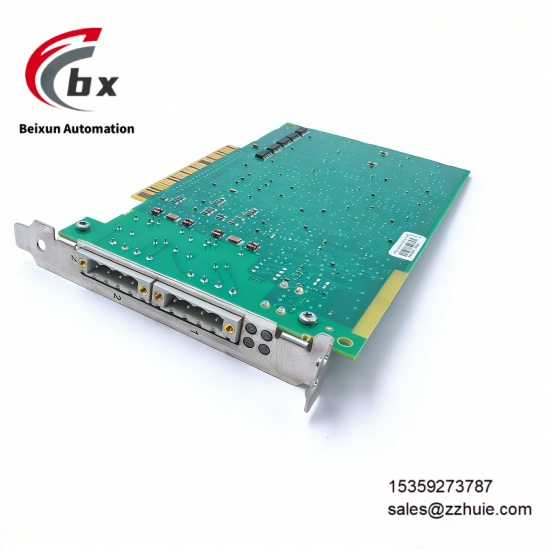

ABB CI527A 3BSE035684R1 Control interface module
Specific Parameters
Dimensions 234mm×118mm×18mm
Weight 0.81kg
Operating Temperature Range 0℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail installation, terminal wiring, supporting online maintenance
Supply Voltage 24VDC
Bus Interface PCI 2.2/2.3 (32-bit, 33MHz) or PCI-X slot
Supported Protocols AF100 Bus Protocol, PCI Bus Protocol
Communication Rate Up to 12Mbps
Electrical Isolation 1500V AC electrical isolation
Compatible Systems AC100 OPC Server 3.1, 800xA for AC100 3.1 and later versions
HS Code 8517620000
Product Performance
Adaptability Performance: Seamlessly compatible with PCI 2.2/2.3 and PCI-X bus interfaces, supports AC100 OPC Server 3.1 and 800xA for AC100 3.1 and later versions, can work with CI869 module to connect to AC 800M controller network, and can be quickly integrated into existing AF100 automation systems with high integration efficiency.
Communication Performance: Supports dual bus protocol conversion of AF100 and PCI, has high-speed data transmission capability, with a maximum communication rate of up to 12Mbps, ensuring seamless communication and fast and reliable data exchange between devices, with stable and low-delay transmission, and ensuring the efficiency of data interaction across bus architectures.
Control Performance: As a dedicated coupler, it can accurately realize bus protocol conversion and data mapping, ensure efficient transmission of control commands, realize stable interconnection between PCI bus devices and AF100 system, support the orderly execution of complex control tasks, and adapt to the cross-bus control needs of industrial automation.
Safety Performance: Equipped with 1500V AC electrical isolation function, excellent anti-electromagnetic interference capability, adopts a robust industrial-grade housing, complies with relevant safety standards and EMC industrial specifications, and can operate stably for a long time in a wide temperature environment of 0℃ to +60℃ and harsh industrial scenarios.
Operation and Maintenance Performance: Modular and compact design, convenient for installation and maintenance, with clear terminal identification, supporting online diagnosis and configuration, the operation status can be monitored in real time, facilitating quick troubleshooting and system expansion, and daily maintenance can be completed without interrupting production.
