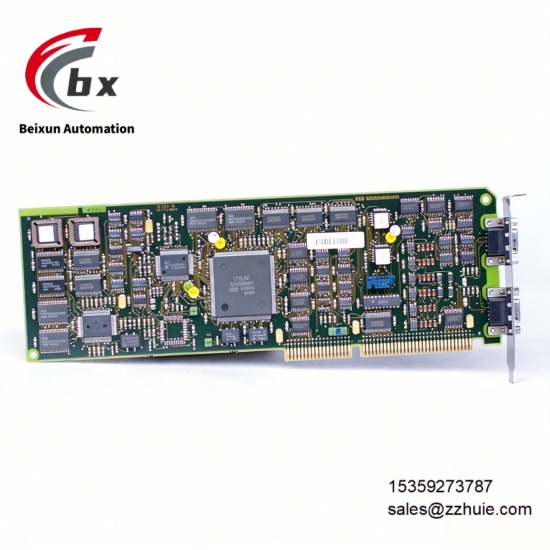

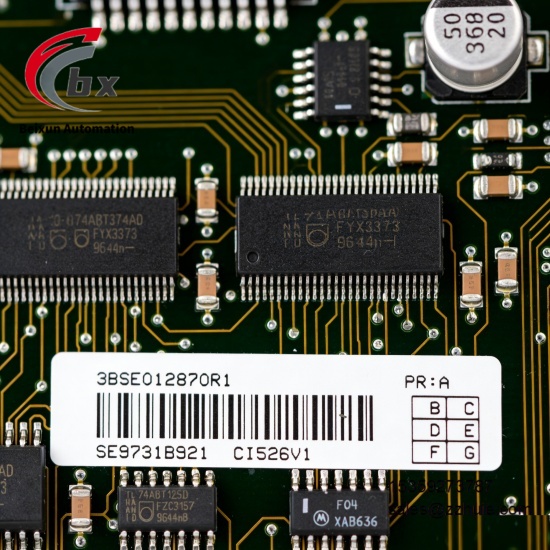

ABB CI526V1 3BSE012870R1 Communication interface module
Specific Parameters
Dimensions 265mm×27mm×120mm
Weight 0.145kg (Net Weight)
Operating Temperature Range -25℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail installation, terminal wiring, supporting hot swapping and online maintenance
Supply Voltage 24VDC
Power Consumption Less than 1W
Communication Interface Supporting Ethernet, RS485 interface, equipped with 2 bus interfaces
Supported Protocols Modbus, CANopen, DeviceNet, Ethernet/IP, Modbus TCP/IP
Communication Rate Up to 10Mbps
Electrical Isolation 1500V AC galvanic isolation
Configuration Method DIP switch configuration, supporting quick setup
HS Code 85389091
Product Performance
Adaptability Performance: Seamlessly compatible with various ABB PLC systems, can realize compatible connection with a variety of industrial automation equipment, with high integration efficiency, and can be quickly integrated into the existing automation architecture.
Communication Performance: Supports a variety of mainstream industrial communication protocols, has high-speed data transmission capability, the maximum communication rate can reach 10Mbps, ensuring seamless communication and fast and reliable data exchange between devices with stable and delay-free transmission.
Control Performance: As an ISA to AF100 coupler, it can accurately realize bus coupling and signal conversion, ensure efficient transmission of control commands, and achieve stable data interaction between controllers and on-site equipment.
Safety Performance: Equipped with 1500V AC electrical isolation function, excellent anti-electromagnetic interference capability, adopts a robust aluminum housing, can operate stably for a long time in a wide temperature environment of -25℃ to +60℃ and vibration scenarios, complying with industrial EMC specifications.
Operation and Maintenance Performance: Modular and compact design, light weight and small size, convenient for installation and maintenance, supports hot swapping, can perform maintenance without interrupting production, equipped with advanced diagnostic functions, can real-time monitor communication status, facilitating quick troubleshooting.
