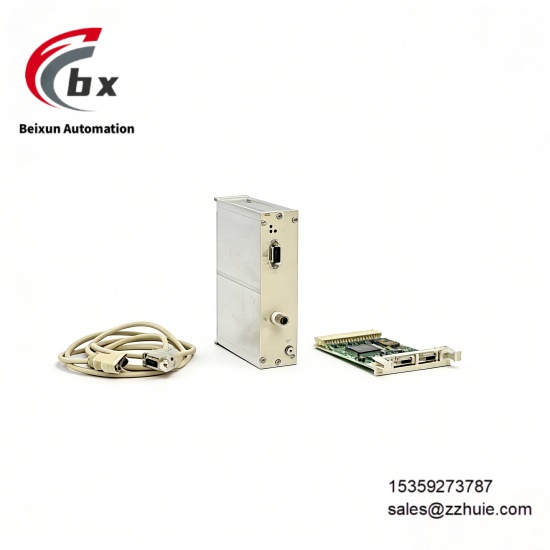

ABB CI522AK01 3BSE018448R1 Bus interface module
Specific Parameters
Dimensions 120mm×90mm×60mm
Weight 0.35kg (Net Weight)
Operating Temperature Range 0℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail installation (35mm, compliant with DIN EN 60715 standard), terminal wiring, supporting online maintenance
Supply Voltage 24VDC
Power Consumption 6W
Communication Interface 2 bus interfaces, supporting high-speed field bus communication
Supported Protocols Modbus TCP, Profibus, DeviceNet
Digital Input 8 channels, 24VDC, current input type
Digital Output 8 channels, 24VDC, 0.5A, current source type
Configurable I/O 8 channels, 24VDC, switchable input/output mode
Expansion Capability Up to 10 S500 series I/O modules can be expanded
Communication Rate Up to 12Mbps
HS Code 85389091
Product Performance
Adaptability Performance: Seamlessly compatible with ABB AC500/S500 series PLC platform, compatible with MicroFlex e190 and MotiFlex e180 servo inverters, can expand multiple S500 I/O modules, with high integration efficiency, and can be quickly integrated into the existing automation system.
Communication Performance: Supports a variety of mainstream industrial bus protocols, has high-speed data transmission capability, the maximum communication rate can reach 12Mbps, ensuring seamless communication and fast and reliable data exchange between devices with low transmission delay.
Control Performance: Integrates multi-channel digital I/O and configurable interfaces, can accurately collect and transmit on-site signals, ensure efficient execution of control commands, realize stable distributed control, and adapt to the precise control needs of industrial automation.
Safety Performance: Has an industrial-grade durable design and complete electrical isolation function, complies with the EN 60204-1 industrial standard, can operate stably for a long time in harsh industrial environments, has a long mean time between failures, and is equipped with coil overvoltage protection (up to 5kV).
Operation and Maintenance Performance: Modular and compact design, clear terminal identification, convenient installation and maintenance, supports online diagnosis and firmware upgrade, the status can be viewed intuitively, the terminals adopt an open design, wiring is convenient, and it is easy to quickly troubleshoot problems.
