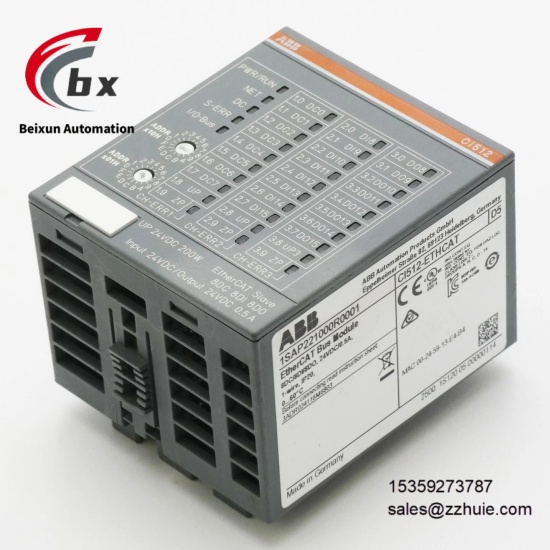

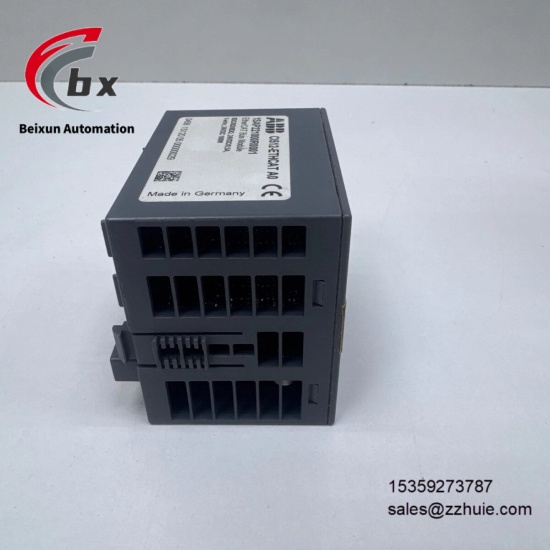

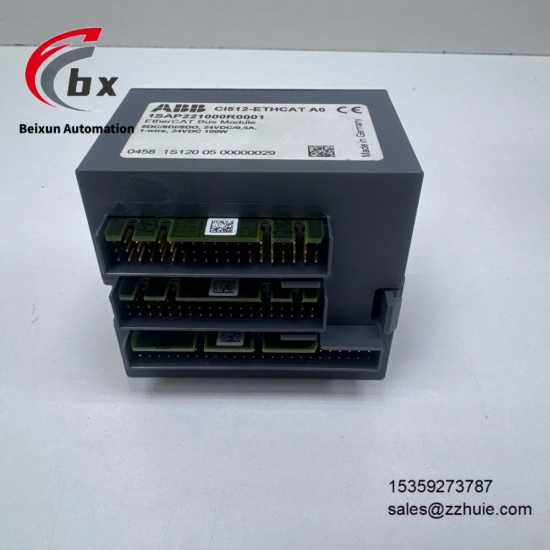

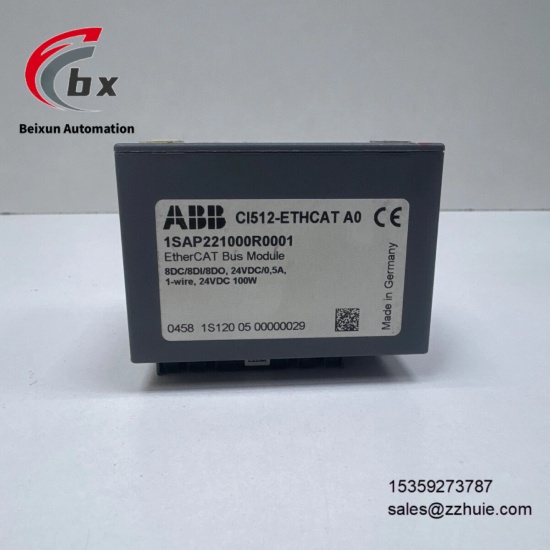

ABB CI512-ETHCAT 1SAP221000R0001 Distributed bus module

ABB CI512-ETHCAT 1SAP221000R0001 Distributed bus module

Specific Parameters

Dimensions 120mm×80mm×35mm

Operating Temperature Range -40℃ to +85℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Mounting Method DIN rail installation, terminal wiring, supporting online maintenance

Supply Voltage 24VDC

Power Consumption 200mA

Communication Interface 2 standard RJ-45 bus interfaces, supporting EtherCAT communication

Supported Protocols EtherCAT, compatible with mainstream industrial communication specifications

Digital Input 8 channels, transistor input

Digital Output 8 channels, transistor output

DC Interface 8 channels

Expansion Capability Supporting distributed expansion, not supporting I/O module expansion

Electrical Isolation Equipped with complete electrical isolation function

HS Code 85389091

Product Performance

Adaptability Performance: Seamlessly compatible with ABB AC500/S500 series PLC platform, can realize distributed expansion, compatible with various industrial on-site equipment, with high integration efficiency, and can be quickly integrated into the existing automation system.

Communication Performance: Supports EtherCAT real-time Ethernet protocol, realizes high-speed data transmission through RJ-45 interface, ensures seamless communication and fast and reliable data exchange between devices, with low transmission delay.

Control Performance: Integrates multi-channel I/O and DC interfaces, can accurately collect and transmit on-site signals, ensure efficient execution of control commands, realize stable distributed control, and adapt to the precise control needs of industrial automation.

Safety Performance: Has an industrial-grade durable design and complete electrical isolation function, can operate stably for a long time in a wide temperature environment of -40℃ to +85℃, complies with industrial EMC specifications, and has a long mean time between failures.

Operation and Maintenance Performance: Modular and compact design, clear terminal identification, convenient installation and maintenance, equipped with comprehensive monitoring and troubleshooting functions, supports online diagnosis, and the status can be viewed intuitively, Promote rapid troubleshooting.
