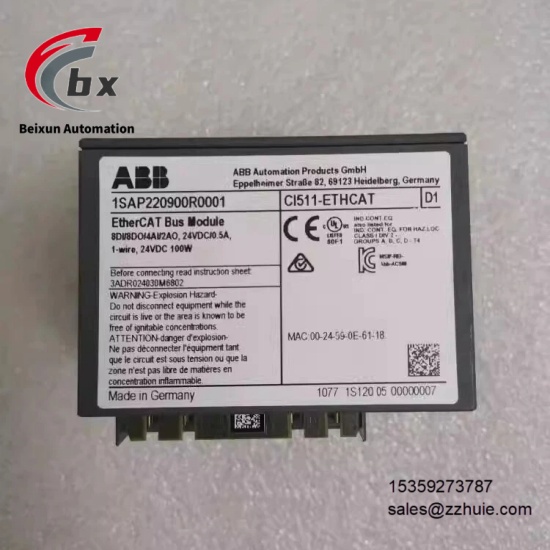

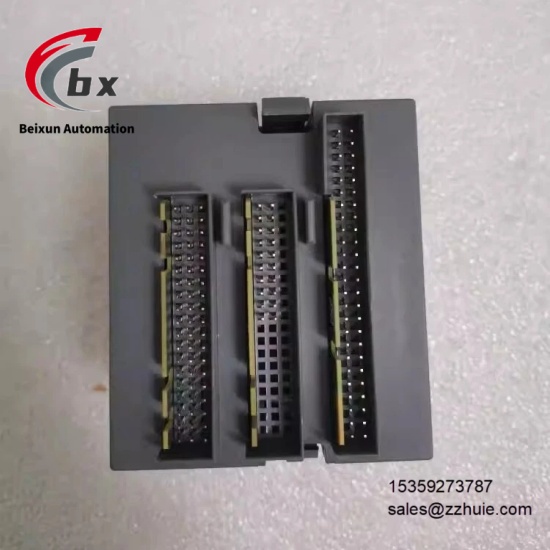

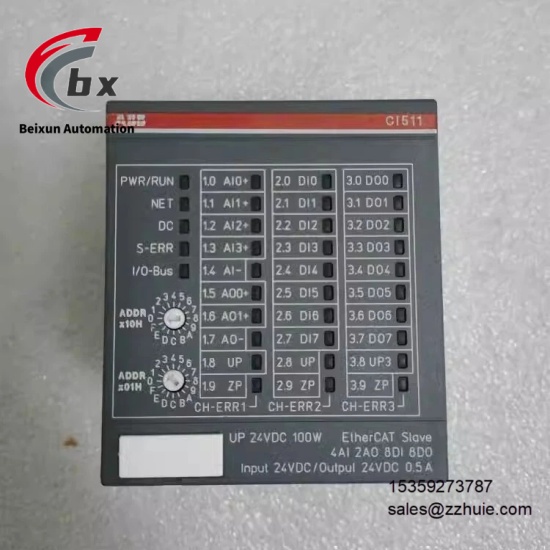

ABB CI511-ETHCAT 1SAP220900R0001 Distributed bus module

ABB CI511-ETHCAT 1SAP220900R0001 Distributed bus module

Specific Parameters

Dimensions 76mm×67.5mm×62mm

Weight 0.3kg (Net Weight)

Operating Temperature Range 0℃ to +60℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Mounting Method DIN rail installation, terminal wiring, supporting online maintenance

Supply Voltage 20.4V DC to 28.8V DC

Power Consumption 5W

Communication Interface 2 standard RJ-45 bus interfaces, supporting EtherCAT communication

Supported Protocols EtherCAT, compatible with CANopen DSP 402 profile

Digital Input 8 channels, 24VDC

Digital Output 8 channels, 24VDC, 0.5A, transistor output

Analog Input 4 channels, supporting U, I, RTD types

Analog Output 2 channels, supporting U, I types

Response Time Microsecond-level synchronous response

HS Code 85389091

Product Performance

Adaptability Performance: Seamlessly compatible with ABB AC500/S500 series PLC platform, can realize distributed expansion, compatible with various industrial on-site equipment, with high integration efficiency.

Communication Performance: Supports EtherCAT real-time Ethernet protocol, with microsecond-level synchronization accuracy and distributed clock function, can realize efficient cross-system data interaction with low transmission delay.

Control Performance: Integrates multiple I/O interfaces and cam switch functions, can accurately collect and transmit on-site signals, ensure efficient execution of control commands, and realize stable distributed control.

Safety Performance: Has industrial-grade protection performance, excellent electrical isolation, can operate stably for a long time in harsh industrial environments, has a long mean time between failures, and complies with EN 61000-6-2/EN 61000-6-4 EMC specifications.

Operation and Maintenance Performance: Modular and compact design, clear terminal identification, convenient installation and maintenance, supports online diagnosis and firmware upgrade, and status indicator lights can intuitively display the module operation status.
