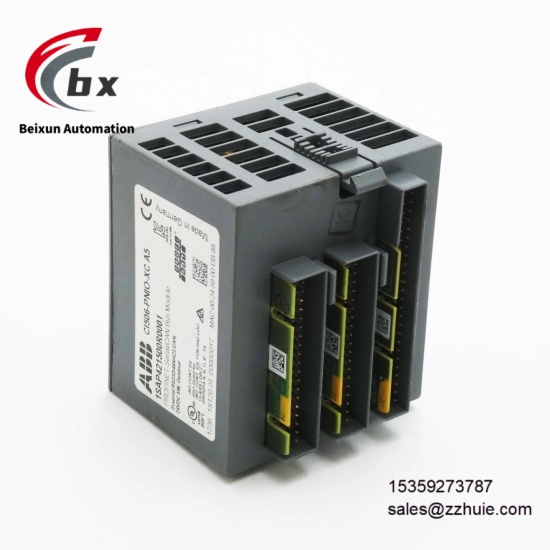

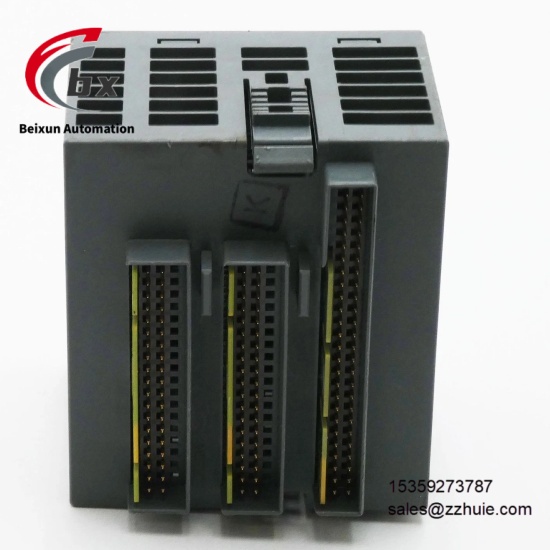

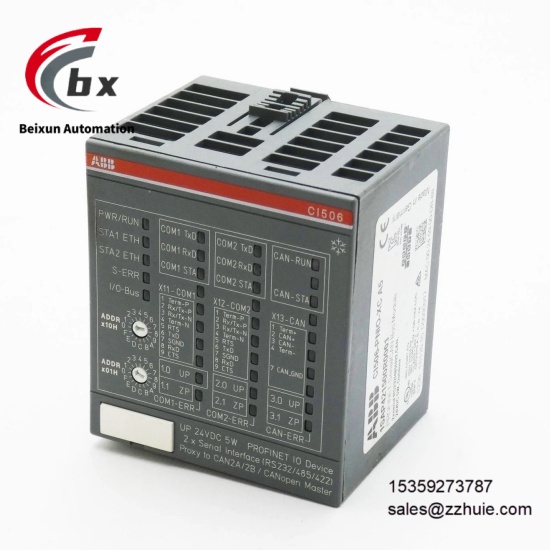

ABB CI506-PNIO-XC A5 1SAP421500R0001 interface module
Specific Parameters
Dimensions 76mm×67.5mm×62mm
Weight 0.144kg (Net Weight), 0.168kg (Gross Weight)
Operating Temperature Range 0℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail installation, terminal wiring, supporting online maintenance
Supply Voltage 20.4V DC to 28.8V DC
Input Current 5mA
Output Voltage 20.4V DC to 28.8V DC
Output Current 0.5A
Power Consumption 5W
Communication Interface 2 Industrial Ethernet ports, 2 serial ports (RS232/RS422/RS485), 1 CANopen master interface
Supported Protocols PROFINET IO RT, Modbus TCP, CANopen
I/O Expansion Up to 10 I/O modules can be expanded
Response Time 0.1ms to 32ms
HS Code 85389091
Product Performance
Adaptability Performance: Seamlessly compatible with ABB AC500 series PLC platform, can expand multiple I/O modules, compatible with equipment from Siemens, Rockwell and other manufacturers, with high integration efficiency.
Communication Performance: Supports a variety of mainstream industrial protocols, equipped with multiple sets of communication interfaces, can achieve millisecond-level signal synchronization and efficient cross-system data interaction, and supports remote firmware upgrade and diagnosis.
Control Performance: Has stable gateway conversion and data transmission capabilities, fast response, can accurately realize signal interaction between on-site equipment and control systems, and ensure efficient execution of control commands.
Safety Performance: Passes TÜV certification, meets IEC 61508 SIL2 safety integrity level, has industrial-grade protection performance, the mean time between failures is more than 50,000 hours, and can operate stably for a long time in harsh industrial environments.
Operation and Maintenance Performance: Modular and compact design, clear terminal identification, convenient installation and maintenance, supports module diagnosis through standard PROFINET messages, and status indicator lights can intuitively display the module operation status.
