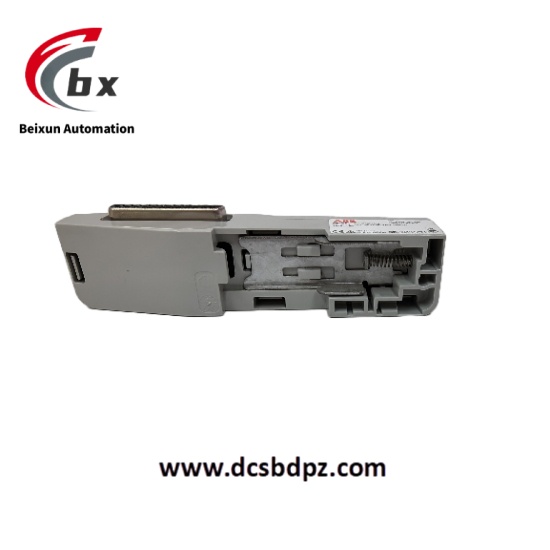

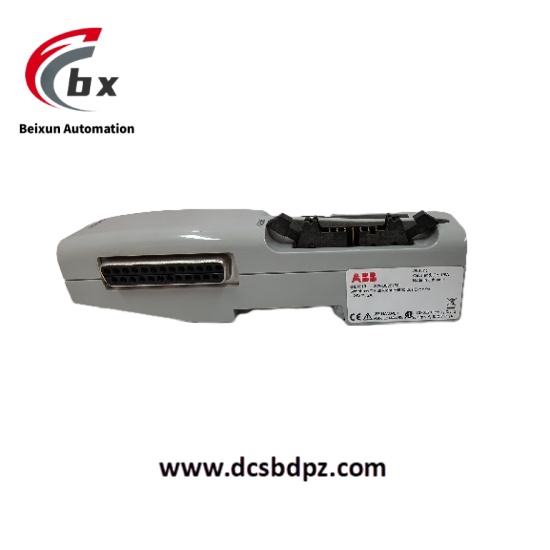

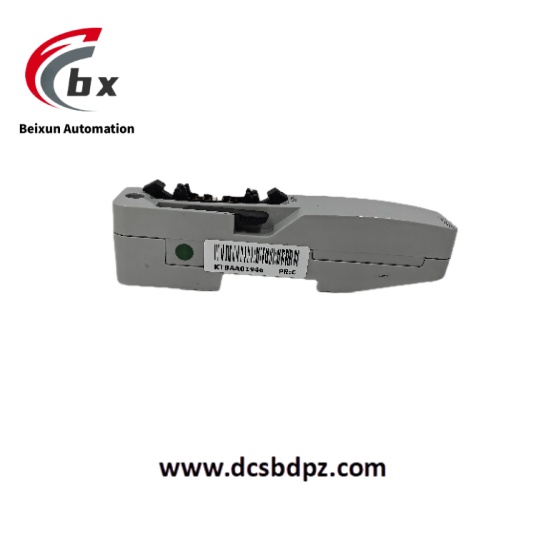

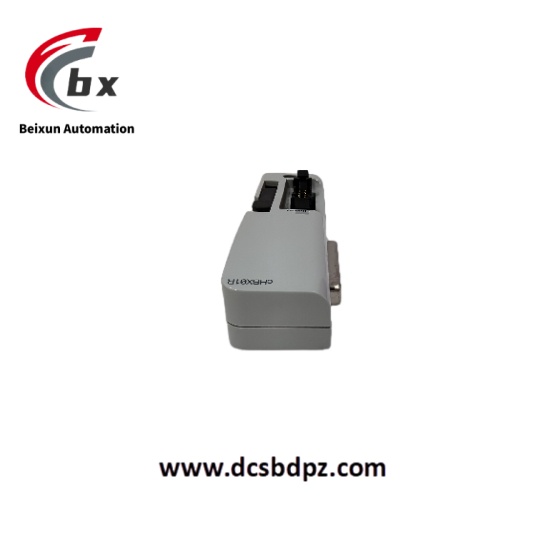

ABB CHBX01R 2VAA008575R1 Industrial bus coupler
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Power Current: Maximum 300mA
- Communication Parameters
- Bus Interface: PROFIBUS DP
- Communication Rate: 9.6kbps-12Mbps (auto-adaptive)
- Maximum Connected Modules: 32
- Physical Parameters
- Dimensions: 25mm (width) × 100mm (height) × 120mm (depth)
- Mounting Type: Standard 35mm DIN rail mounting
- Weight: Approximately 150g
- Environmental Parameters
- Operating Temperature Range: -25°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20
Product Performance
- Efficient Bus Transfer: Supports full-rate adaptation of PROFIBUS DP bus, enabling high-speed data transmission between modules and the main controller with a data refresh cycle ≤1ms, ensuring the real-time performance of the control system.
- Stable Connection Capacity: Can connect up to 32 extended modules, supports hot swapping of modules, and does not affect bus communication during plugging, improving the convenience and continuity of system maintenance.
- Strong Anti-Interference Design: Optoelectronic isolation (isolation voltage 2500Vrms) is adopted for power supply and signal circuits, effectively resisting electromagnetic interference in industrial environments and ensuring stable signal transmission.
- Wide Environmental Adaptation: Operates stably in the temperature range of -25°C to +60°C, adapting to high and low temperature industrial field environments, and can work reliably without additional temperature control measures.
