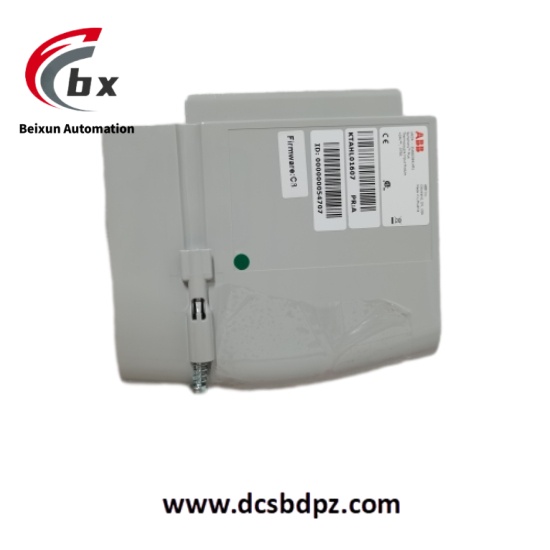

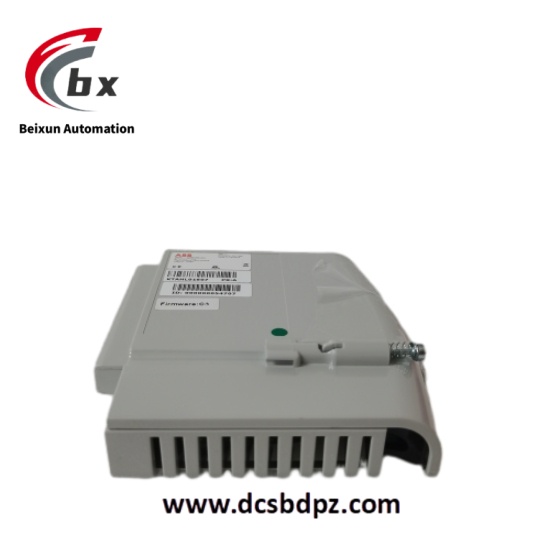

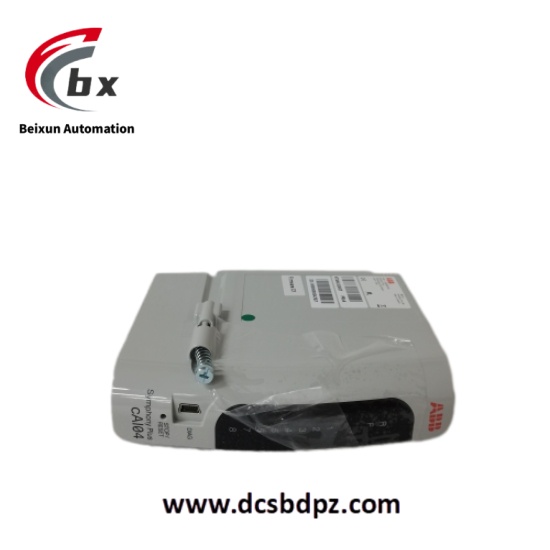

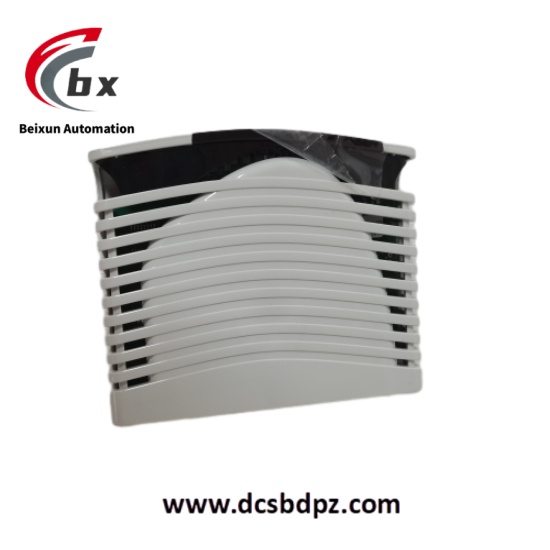

ABB CAI04 Analog Input Module
¥20,000.00 Original price was: ¥20,000.00.¥15,000.00Current price is: ¥15,000.00.
The ABB CAI04 is a compact analog input module manufactured by ABB. It is mainly used in industrial automation scenarios and can handle up to 8 channels of thermocouple (TC) and millivolt (mV) input signals. Each channel is independently isolated and configurable. This module plays a crucial role in industrial automation systems. It can convert continuous physical signals such as temperature, pressure, and flow into digital data for processing by programmable logic controllers (PLCs), distributed control systems (DCSs), or supervisory control and data acquisition (SCADA) systems. As part of the ABB AC 800M control system within the ABB Industrial IT platform, the CAI04 can reliably acquire and condition analog signals even in harsh industrial environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB CAI04 Analog Input Module
Specific Parameters
- Input Signal Types
- Thermocouple Types: Supports E, J, K, R, S, T, B, L, N (14 and 28 AWG), U types, as well as the Chinese – specific E and S types.
- Millivolt Ranges: 0 to 100 mV or – 100 to + 100 mV.
- Analog – to – Digital Conversion
- Resolution: 16 – bit for each channel with polarity.
- Conversion Speed: The module has 2 analog – to – digital converters, each serving 4 input channels, and can update data for 8 input channels within 300 milliseconds.
- Calibration Method: Supports automatic calibration without manual operation.
- Cold Junction Compensation Methods: Configurable, can use an RTD embedded in the module mounting base, an external RTD connected to the module base TB3, or an input configured by the user through a separate application.
- Electrical Specifications
- Power Supply Voltage: 24V DC.
- Power Consumption: 2W.
- Environmental Parameters
- Operating Temperature: – 20°C to + 60°C.
- Storage Temperature: – 40°C to + 85°C.
- Vibration: Can withstand 5 g with a frequency range of 10 Hz to 500 Hz.
- Shock: Can withstand 10 g for a duration of 11 milliseconds.
- Physical Specifications
- Dimensions: 35×100×23mm.
- Weight: 0.2 kg.
- Connection Method: Uses terminal block connection.
Product Performance
- High – Precision Measurement: With a 16 – bit analog – to – digital resolution and support for a wide range of thermocouple types and millivolt ranges, it can achieve high – precision signal measurement, ensuring the accuracy of industrial process parameter monitoring.
- Fast Data Update: It can update data for 8 input channels within 300 milliseconds, meeting the requirements of industrial automation applications with high real – time requirements, enabling the control system to quickly respond to process changes.
- Strong Anti – interference Ability: Each channel is independently isolated with 2.5 kV rms electrical isolation, which can effectively protect the control system from voltage surges and ground loops. At the same time, it complies with electromagnetic compatibility (EMC) standards and can operate stably near high – power equipment, making it suitable for harsh industrial environments such as refineries and steel mills.
- Convenient Configuration and Maintenance: Supports automatic calibration, reducing manual operations. It is configured through function code 221 (I/O device definition) and function code 222 (analog input channel), which is easy to operate. It also provides comprehensive diagnostic functions, including channel – specific fault indicators and real – time status reports through the module’s LED display, helping to quickly troubleshoot faults and reduce maintenance time.
- Flexible Cold Junction Compensation: Multiple configurable cold junction compensation methods can adapt to different application scenarios, ensuring the accuracy of thermocouple measurements.
