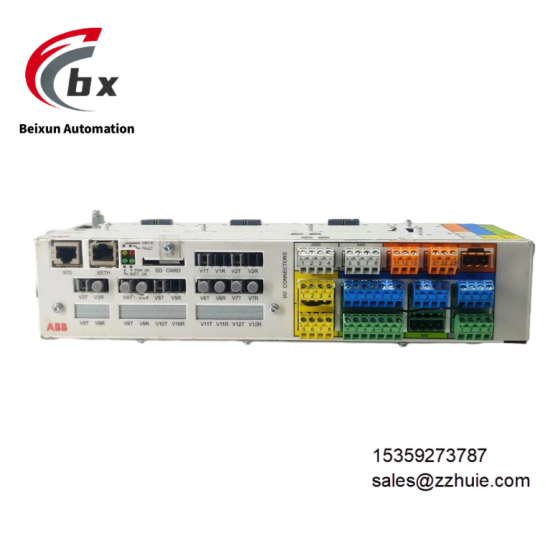

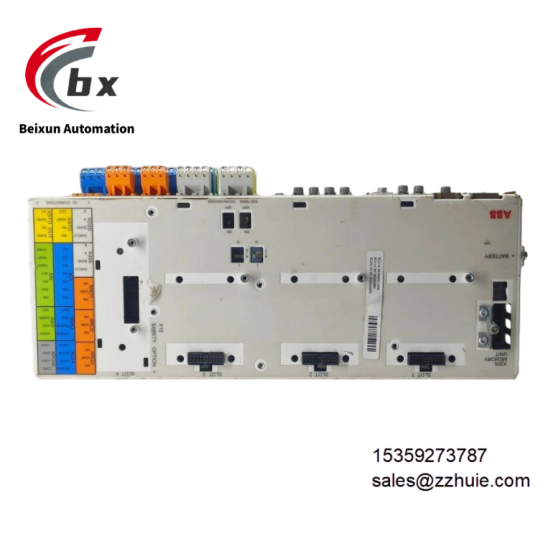

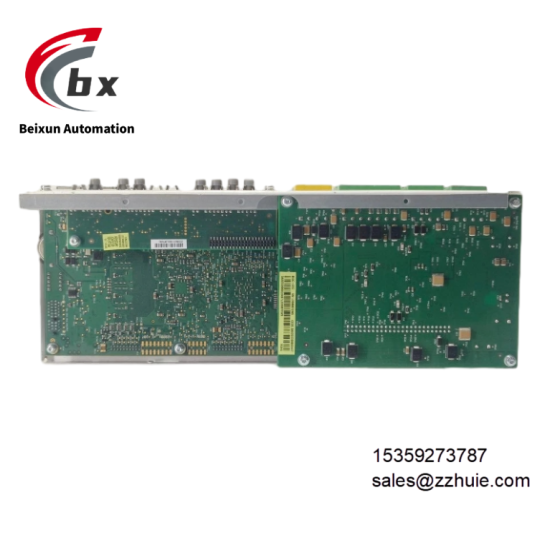

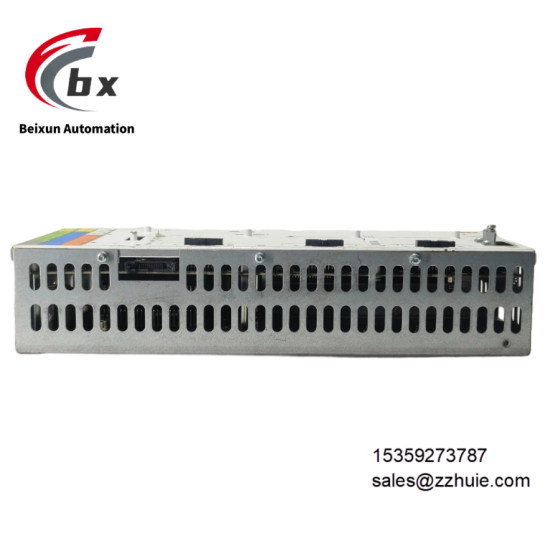

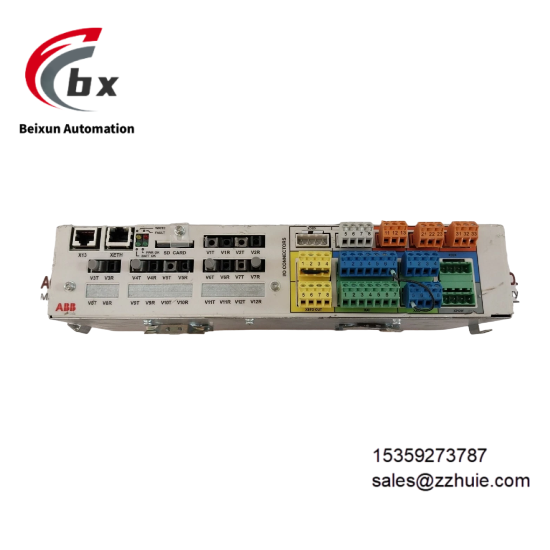

ABB BCU-12 3AUA0000110430 Multi transmission control unit

ABB BCU-12 3AUA0000110430 Multi transmission control unit

Specific Parameters

Brand ABB (ABB Group, Switzerland)

Product Series ABB BCU Series

Product Type Multi-drive Control Unit, ACS880 Multi-drive System Main Control Unit, Industrial Control Module, Original Spare Part

Model ABB BCU-12 3AUA0000110430

Country of Origin Switzerland (Produced byABB original factory)

Compatible Devices ABB ACS880 Series Multi-drive System, Various Industrial Multi-motor Drive Equipment

Processor Dual-core ARM+DSP Cooperative Architecture

Maximum Number of Controlled Units Up to 12 Power Units

Communication Interfaces DriveBus Optical Fiber Interface, RS-485 Interface, Supporting EtherCAT, PROFINET Expansion

Communication Protocols DriveBus, Modbus, EtherCAT, PROFINET

Safety Function Safe Torque Off (STO), Complying with IEC 61800-5-2 Standard

Storage Configuration Large-capacity Flash Memory, Real-time Clock (RTC)

Supply Voltage 24VDC

Operating Temperature Range -10℃ to +50℃ (No Derating Operation)

Storage Temperature Range -25℃ to +70℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (To Be Installed in Closed Control Cabinet)

Physical Dimensions Standard Industrial Control Module Size (Compatible with ACS880 Control Cabinet)

Physical Weight Approximately 0.8kg

Mounting Method DIN Rail Mounting (Compatible with 35mm DIN Rail), Supporting Hot Swapping

Protection Type Anti-Electromagnetic Interference, Conformal Coating Protection, Overvoltage/Overcurrent/Short Circuit Protection

Core Functions Multi-motor Synchronous Control, Dynamic Load Distribution, Data Acquisition, Fault Tracing, Safe Torque Off

Product Material Industrial-Grade Flame-Retardant Circuit Board, Metal Protective Shell, with Conformal Coating Treatment

Customizable No

Certification Standards CE, UL, cUL, RoHS, IEC 61800-5-2

Warranty Period 12 Months

Product Performance

ABB BCU-12 3AUA0000110430 is an original ABB module with strong adaptability. It can be seamlessly integrated into ABB ACS880 multi-drive system, with convenient DIN rail mounting, support for hot swapping, and can automatically load parameters when replaced, without stopping the machine to retransmit programs, and can stably realize multi-motor synchronous control and dynamic load distribution.

Equipped with a dual-core ARM+DSP cooperative processor, it has fast operation speed, can quickly process complex control algorithms, realize millisecond-level inter-axis synchronous response, avoid tension fluctuation or phase offset, and meet the precise control needs under high dynamic working conditions.

Supports DriveBus optical fiber high-speed communication, can connect multiple power units, integrates a variety of industrial communication protocols, can be seamlessly connected to the factory automation level, and cooperate with ABB DriveComposer Pro software, which can graphically configure multi-axis logic, and is convenient for operation and maintenance.

With conformal coating protection treatment, it has excellent anti-electromagnetic interference, moisture-proof and dust-proof capabilities, strong wide temperature adaptability, can operate stably in harsh industrial working conditions such as high temperature, high dust and high humidity for a long time, and integrates Safe Torque Off function to ensure the safety of personnel and equipment.
