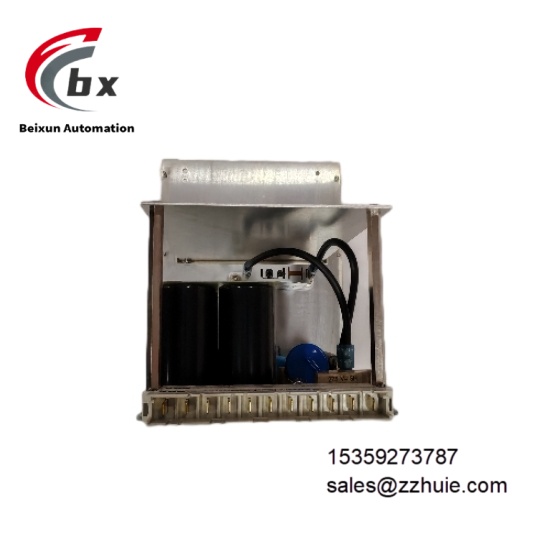

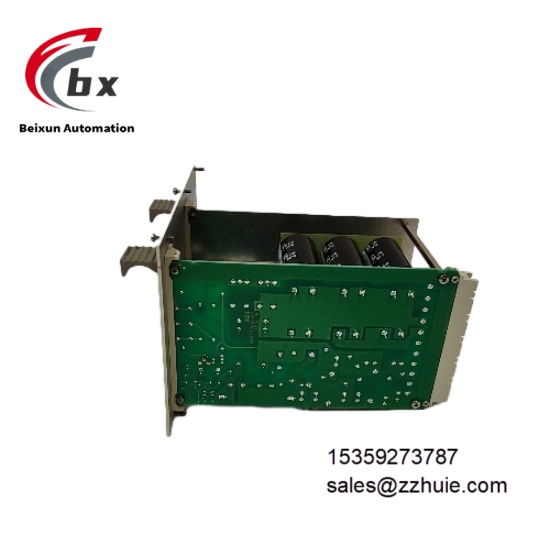

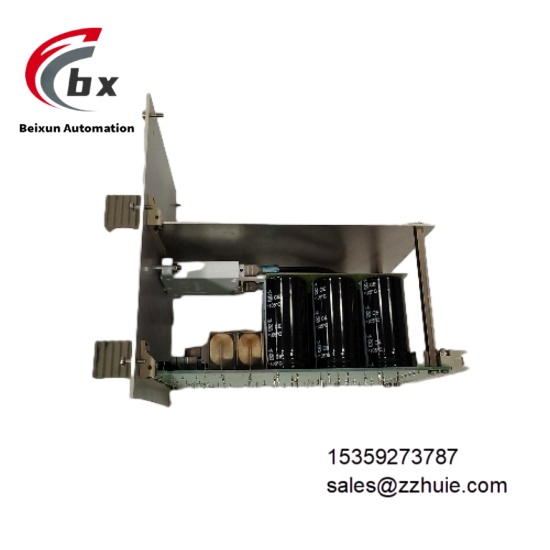

ABB B5LA HENF327886R0001 Hydraulic servo control module

Specific Parameters

Electrical Parameters
Input Voltage: 200-240V AC
Frequency Range: 50/60Hz
Digital Input Ports: 16, supporting dry contact signals
Digital Output Ports: 8, relay output type
Communication Interfaces: PROFINET, PROFIBUS, compatible with industrial Ethernet
Control Signal Output: 4-20mA analog control signal
Power Dissipation: ≤15W under typical operating conditions
Isolation Level: Electrical isolation between input and output circuits, dielectric test voltage 1000V AC
Environmental Parameters
Operating Temperature: -20°C to +70°C (non-condensing)
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Complies with IEC 61000-4 series industrial standards
Protection Class: IP65
Vibration Resistance: 2Hz-8.4Hz (3.5mm peak), 8.4Hz-150Hz (1g)
Shock Resistance: 15g, 11ms half-sine wave
Certification Standards: CE, IEC 60034
Mechanical Parameters
Dimensions: 297.18mm (L) × 175.26mm (W) × 35.56mm (H)
Weight: Approximately 0.6kg
Mounting Method: 35mm DIN rail mounting, supporting horizontal/vertical installation
Wiring Method: Spring terminals
Housing Material: Flame-retardant plastic, complying with UL 94 V-2 standard
Indicators: Power Status (PWR, green), Operation Status (RUN, green), Fault Alarm (ERR, red)

Product Performance

Adopting 32-bit microprocessor and PID closed-loop control algorithm, the control signal response time is ≤5ms, and the flow regulation accuracy reaches ±0.5%, which can realize real-time dynamic adjustment of hydraulic system parameters. Supports multi-protocol communication, can seamlessly connect with PLC and DCS systems, with data transmission rate up to 100Mbps, ensuring efficient execution of control commands.

Modular hardware design combined with spring terminal wiring reduces installation and maintenance time by 40%, adapting to narrow control cabinet space. IP65 protection class and wide temperature operating range can resist the impact of dust, humidity and high temperature environments, meeting the operation requirements of harsh industrial scenarios.

Integrated with comprehensive fault diagnosis system, it can real-time monitor input/output signal abnormalities, communication interruptions and power failures. Fault information is uploaded immediately via bus, with diagnostic coverage ≥98%. The module supports hot-swapping, no system shutdown required during replacement, ensuring production continuity.
