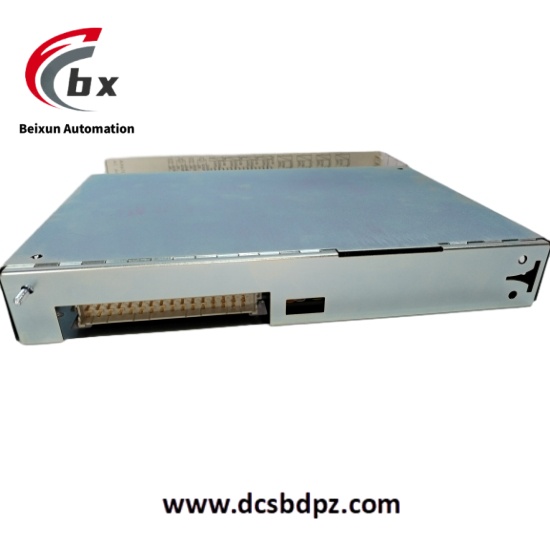

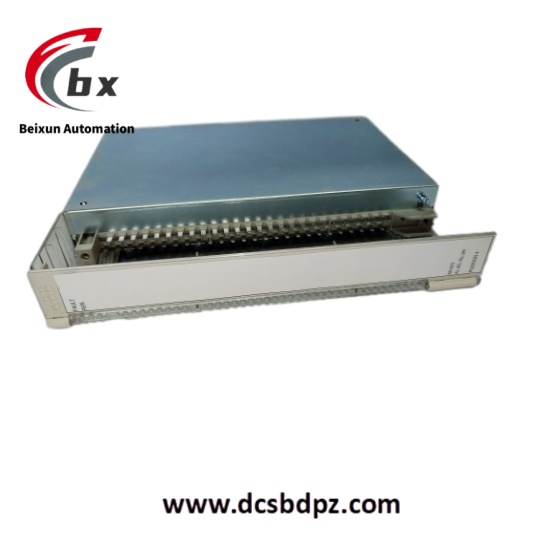

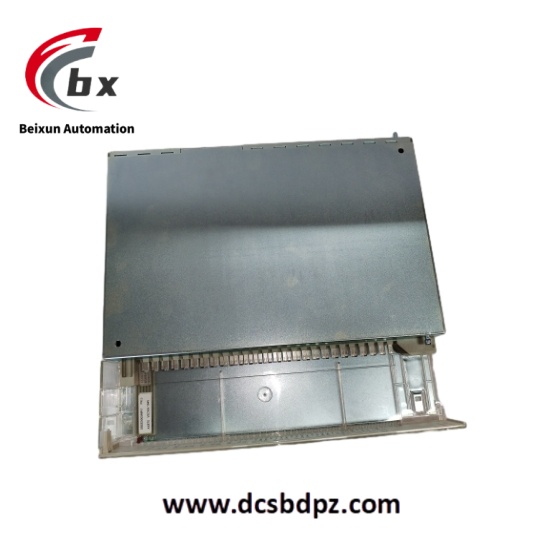

ABB AX670 3BSE000566R1 High performance analog hybrid module
¥10,000.00 Original price was: ¥10,000.00.¥7,000.00Current price is: ¥7,000.00.
ABB AX670 3BSE000566R1 is a high-performance analog mixed module belonging to the ABB Advant Controller 400 series industrial automation control system. This module integrates analog input and output functions, and can directly access various types of signals such as thermocouples, RTDs, voltage and current, providing a comprehensive signal acquisition and control solution for industrial control processes. It adopts a modular design, is compatible with the bus structure of the Advant Controller 400 series, can be quickly integrated into existing automation systems, and supports online hot swapping, facilitating system maintenance and upgrades.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB AX670 3BSE000566R1 High performance analog hybrid module
Specific parameters
- Input Channels: 8 analog inputs, supporting thermocouples (J, K, T, E, R, S types), RTDs (Pt100, Cu100), 0-10V DC, 0-20mA DC signals
- Output Channels: 4 analog outputs, signal type 4-20mA DC, load capacity 0-750Ω
- Measurement Accuracy: Thermocouple measurement ±0.1%FS, RTD measurement ±0.05%FS, voltage/current signal ±0.02%FS
- Resolution: 16-bit A/D conversion, 12-bit D/A conversion
- Isolation Level: 2500V AC electrical isolation between channels, 2500V AC isolation between input/output and system bus
- Operating Voltage: 24V DC±10%, maximum power consumption 15W
- Operating Temperature Range: 0°C to 55°C, storage temperature -40°C to 70°C
- Dimensions: Length 243mm, height 45mm, width 225mm
- Weight: 1.25kg
- Product Type: Control_System_Accessory
Product Performance
- Multi-signal Compatibility: Supports multiple signal types such as thermocouples, RTDs, voltage, and current. It can adapt to different sensors without additional conversion modules, simplifying the system architecture.
- High-precision Acquisition and Control: 16-bit A/D conversion and 12-bit D/A conversion ensure high precision of signal acquisition and output, meeting the precise control requirements of industrial processes for temperature, pressure, flow and other parameters.
- High Isolation Protection: High-grade electrical isolation design effectively suppresses electromagnetic interference in industrial environments, ensures the stability of signal transmission, and protects the system from external voltage shocks.
- Stable and Reliable Operation: Passed strict industrial environment tests, maintaining stable performance within a wide temperature range, with a mean time between failures (MTBF) of over 100,000 hours.
- Flexible System Integration: Compatible with the Advant Controller 400 series bus protocol, supports hot swapping function, and can complete module replacement during system operation, reducing downtime.
