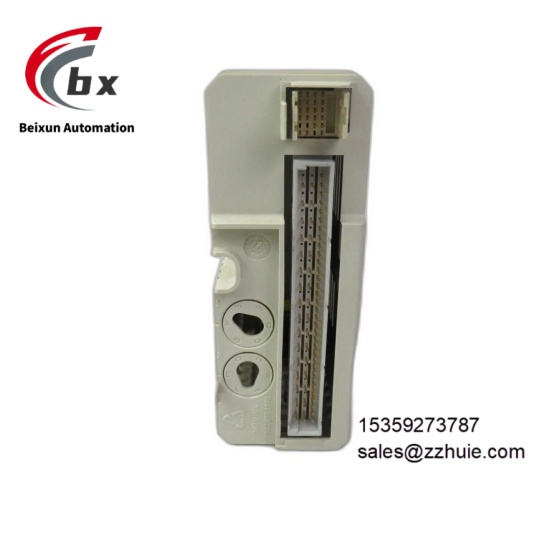

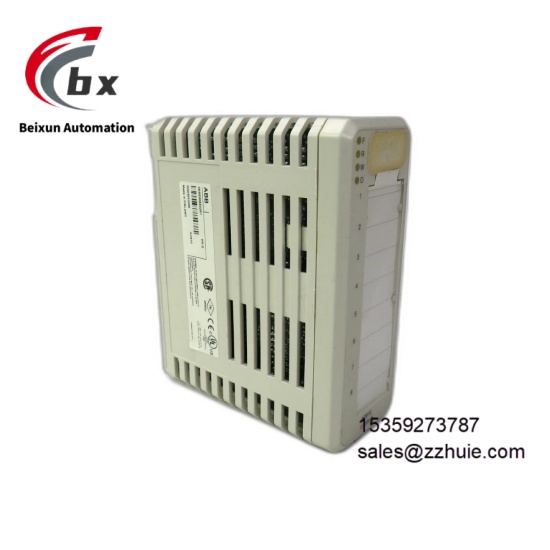

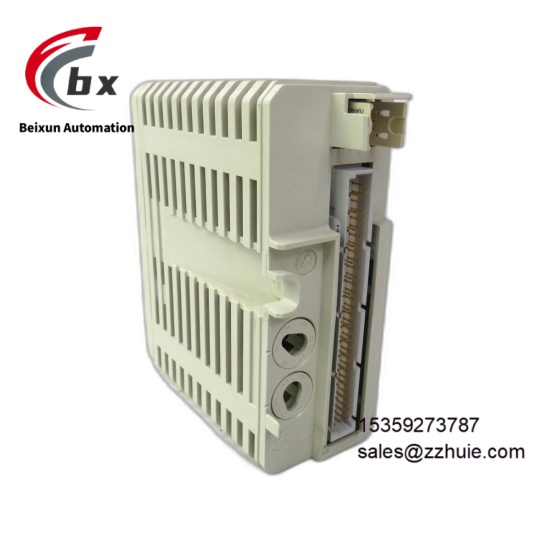

ABB AO810 3BSE008522R1 Analog output module

Specific Parameters

Brand ABB

Product Series AC 800M Series Industrial Control System Output Modules

Product Type Industrial-grade Analog Output Module

Models AO810, 3BSE008522R1

Number of Output Channels 8 independent analog output channels

Output Signal Types 4-20mA DC, 0-20mA DC, 0-10V DC (configurable)

Output Range 4-20mA DC: Load 0-600Ω; 0-10V DC: Load ≥1kΩ

Output Accuracy ±0.1% Full Scale (25℃); ±0.2% Full Scale (Full Operating Temperature Range)

Resolution 16-bit

Response Time ≤1ms (from digital signal to stable analog output)

Operating Voltage DC 24V ±10% (Powered by System Rack)

Operating Temperature Range 0℃ – 60℃

Storage Temperature Range -40℃ – 85℃

Relative Humidity 5% – 95% Non-condensing

Protection Level IP20 (Module-level)

Electrical Isolation 2500V AC isolation between channels and between channel and backplane (1 minute)

Installation Method ABB AC 800M Series Standard Rack Slot Mounting

Dimensions 100mm×160mm×85mm (L×W×H)

Weight Approximately 0.6kg

Power Consumption Typical 5W, Maximum 7W

Certification CE, UL, CSA, IEC 61131-2

Diagnostic Functions Channel short-circuit diagnosis, Output overload diagnosis, D/A conversion fault diagnosis, Power supply abnormality monitoring

Protection Functions Each channel has short-circuit protection (automatic recovery)

Product Performance

8 independent configurable output channels, supporting multiple standard analog output signals, can flexibly adapt to different types of on-site actuators with extremely strong versatility

High output accuracy and resolution, accuracy better than ±0.2% full scale in the full operating temperature range, which can accurately reproduce controller control commands and ensure process control accuracy

Fast response time, signal conversion delay ≤1ms, can quickly respond to changes in controller control commands, improving the real-time performance of system control

High electrical isolation design between channels and between channels and backplane, combined with industrial-grade anti-electromagnetic interference circuit, can effectively resist on-site electromagnetic radiation and surge impact, ensuring the stability of output signals

Each channel has built-in short-circuit protection function, which automatically cuts off the output and alarms when a fault occurs, and automatically recovers after the fault is eliminated, avoiding damage to the module and actuator

Equipped with complete fault diagnosis functions, real-time monitoring of channel working conditions and module operation status, fault information can be uploaded to the controller, facilitating operation and maintenance personnel to quickly locate problems

Wide operating temperature range of 0℃ – 60℃, combined with industrial-grade rugged packaging, can long-term stable operation in complex industrial sites with strong environmental adaptability

Deeply compatible with the ABB AC 800M series control system, plug-and-play, supporting online configuration debugging and parameter configuration, simplifying system integration and maintenance processes

High-reliability design, MTBF ≥3,000,000 hours, meeting the 24-hour uninterrupted operation needs of industrial sites
