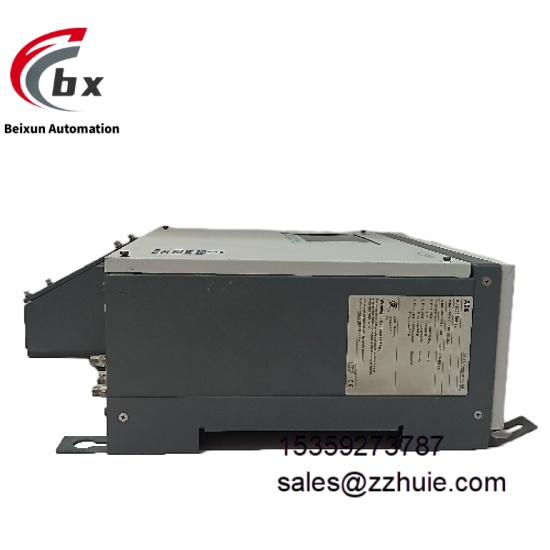

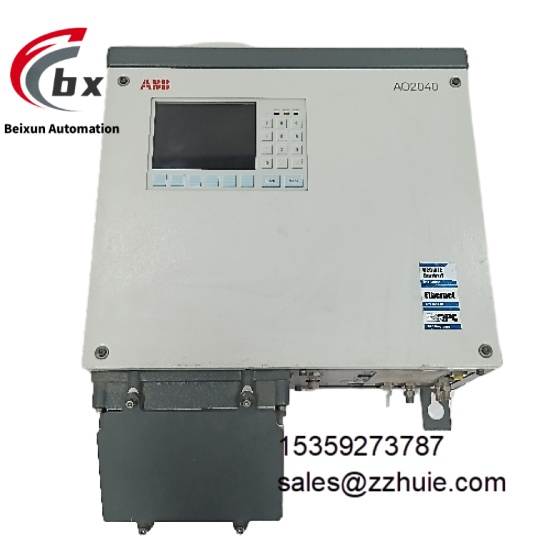

ABB AO2040 Analog Output Module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (provided by AC500 PLC backplane)
Signal Configuration: 4 independent analog outputs, each channel configurable as 4-20mA or 0-10V DC
Output Accuracy: ±0.1% full scale (25°C); ±0.2% full scale (0-60°C)
Resolution: 16-bit (digital-to-analog conversion)
Output Load:
Current Output: ≤500Ω (4-20mA mode)
Voltage Output: ≥1kΩ (0-10V DC mode)
Response Time: ≤1ms (digital signal to stable analog output)
Isolation Level: 2.5kV AC between channels and between channels and system (1 minute)
Protection Functions: Overcurrent protection (25mA current limit per channel), short circuit protection, reverse polarity protection
Ripple Noise: ≤10mVp-p (voltage output); ≤5μAp-p (current output)
Environmental Parameters
Operating Temperature: -25°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), EN 61000-6-4
Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 22.5mm (W) × 100mm (H) × 125mm (D)
Weight: Approximately 150g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant PA66 engineering plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

AO2040 adopts high-precision 16-bit D/A conversion chip and temperature compensation algorithm, with output error ≤0.2% over the full temperature range, ensuring actuator regulation accuracy up to ±0.1% of rated value. Independent circuit design for each channel supports mixed signal configuration (some channels 4-20mA, some 0-10V DC), no hardware jumpers required, and parameter setting can be completed via PLC configuration software.

Channel-level electrical isolation combined with multi-stage EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites. Integrated with real-time self-diagnosis functions, it can monitor output short circuit, overload and module power abnormalities, with fault status fed back to PLC via LED indicators (red steady on) and bus, diagnostic response time ≤5ms.

Fully compatible with AC500 series PLC, data update cycle ≤10ms, supporting hot-swap replacement without interrupting system operation during maintenance, mean time between failures (MTBF) ≥200,000 hours, meeting industrial-grade continuous operation requirements.
